MOUNT INSTALLATION
eng 21

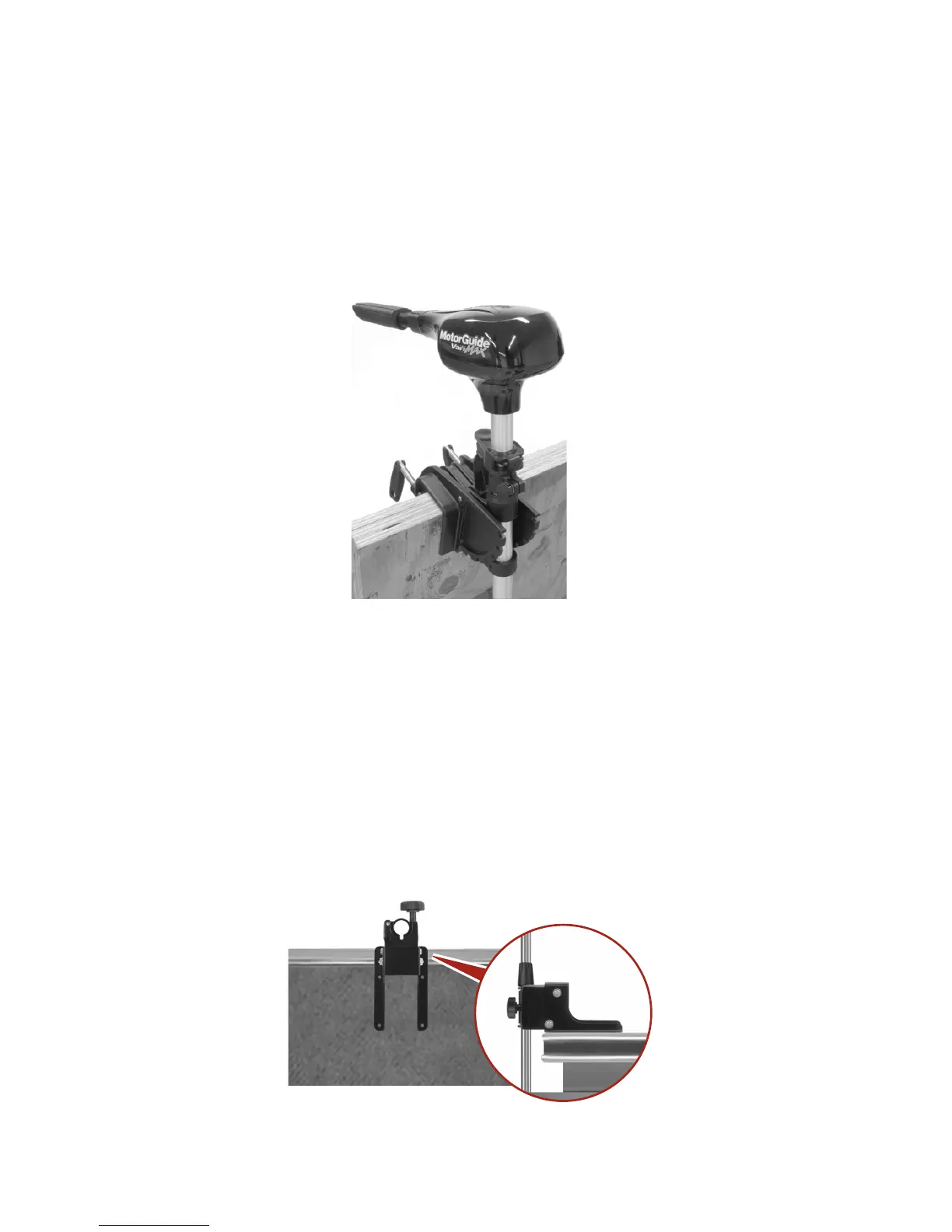

Transom Mount Installation
NOTE: The transom mount will fit transoms up to 8.25 cm (3.25 in.)
thick.
IMPORTANT: Overtightening the transom clamp screws can weaken
or damage the mount bracket.
1. Place the transom mount onto the transom of the boat.
45673
2. Tighten the transom clamp screws securely.
Pontoon Mount Installation
IMPORTANT: Choose an area on the deck which allows 2.5 cm
(1 in.) clearance between the column and the bow of the boat for all
motor positions.
1. Select an appropriate area on the deck of the boat to install the
mount.
39066
