Mercury MotorGuide VariMAX User Manual

OPERATION
28 eng
TRANSOM MOUNT
IMPORTANT: Ensure the mount is stowed while using the main engine
or trailering the boat. Ensure the steering tension collar is tightened
securely.

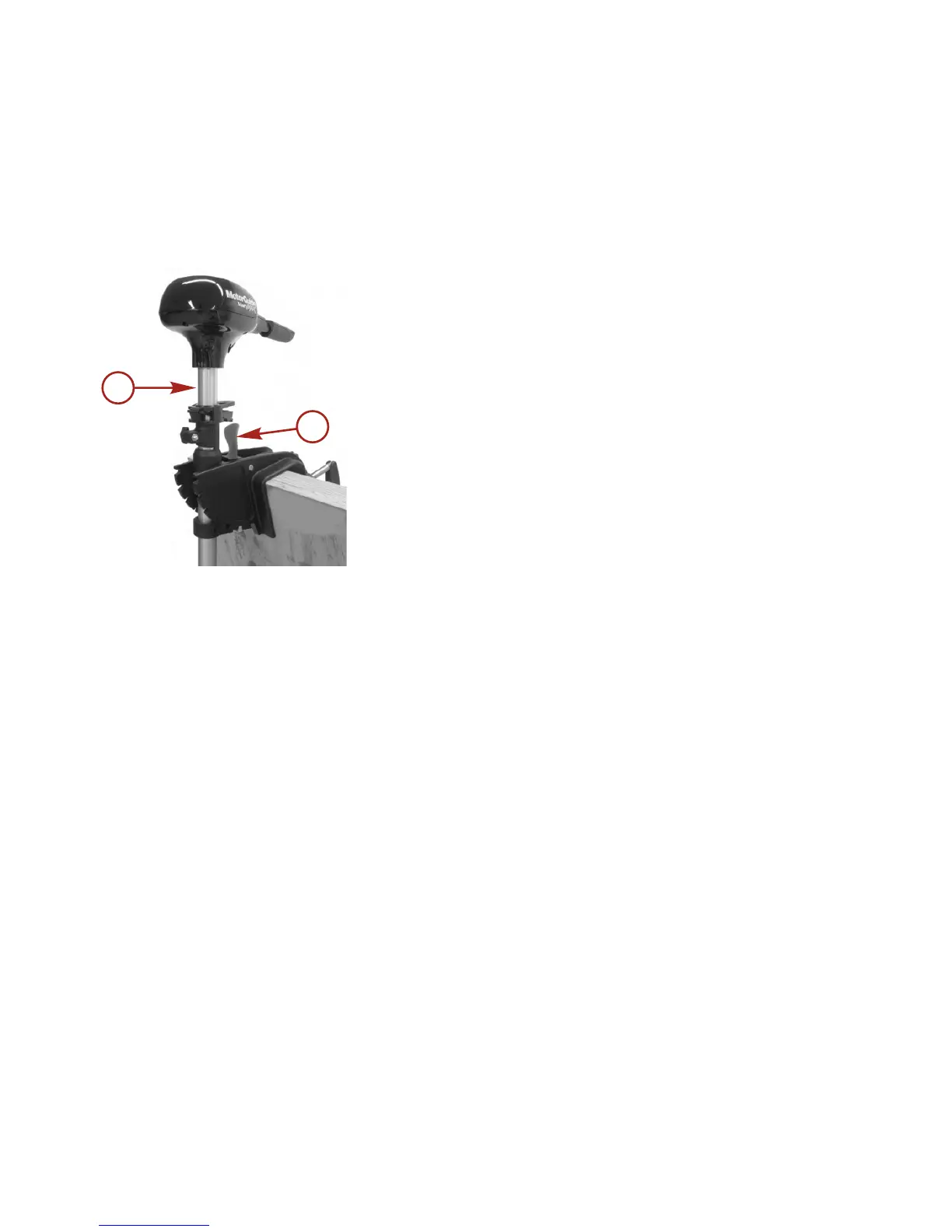

1. Firmly grasp the column and push the tilt lever towards the column.
a - Column
b - Tilt lever
IMPORTANT: Do not use the handle to stow or tilt the motor.
2. Tilt the motor toward you by pulling on the column while
simultaneously holding the tilt lever.
3. Once the motor is stowed, release the tilt lever. Verify the lock pin
is securely engaged. The motor should not tilt if the lock pin is
properly engaged.
4. Move the depth collar flush against the steering tension collar.
a
b
45664
