Mercury MotorGuide VariMAX User Manual

OPERATION
30 eng

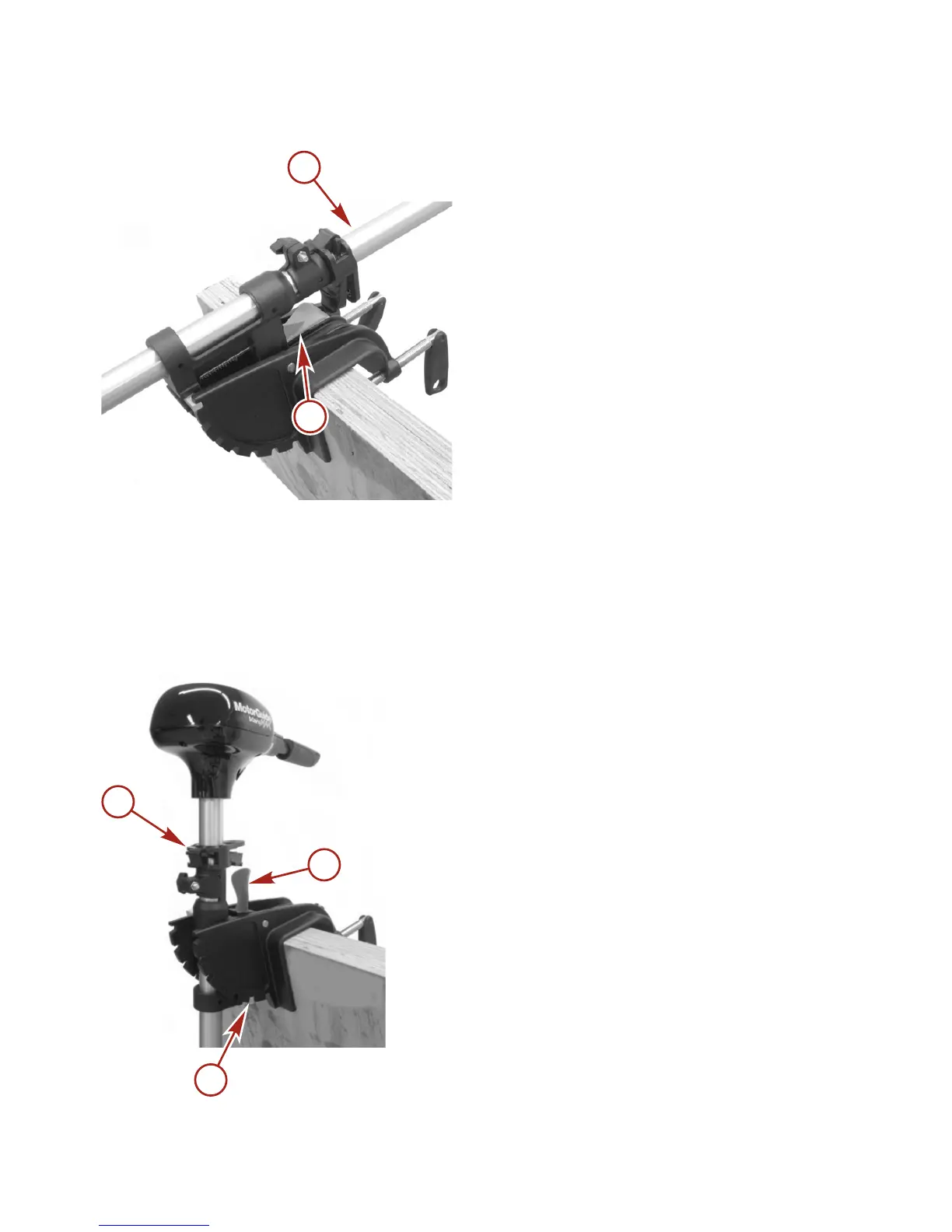

1. Firmly grasp the column and engage the tilt lever.
a - Column
b - Tilt lever
2. Adjust the angle of the motor to the desired position while
simultaneously holding the tilt lever.
3. Release the tilt lever. Verify that the lock pin is securely engaged.
4. Grasp the shaft with one hand and pinch the depth collar to lower
the trolling motor to the desired depth.
a - Tilt lever
b - Lock pin
c - Depth collar
