OPERATION
eng
35
To
backtroll,
push
the
handle.
To
reverse
backtroll,
pull
the
handle.
The
BluVis function display indicates the motor direction.

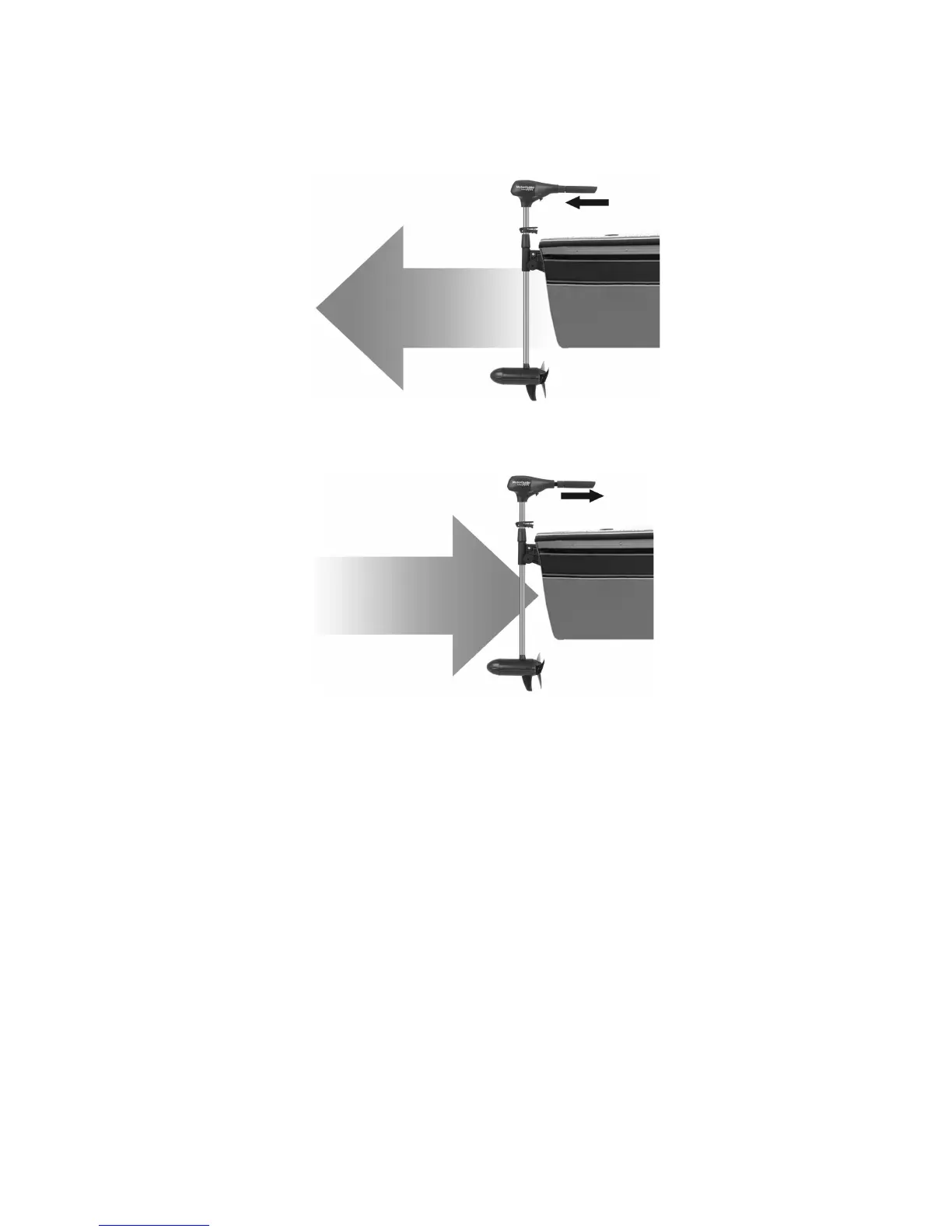

39223
Backtroll
39102
Backtroll reverse
