OUTBOARD INSTALLATION
97
NOTE: The inside holes on the transom reinforcement plate are
for the lower transom bolts and the outside holes are for the upper
transom bolts.

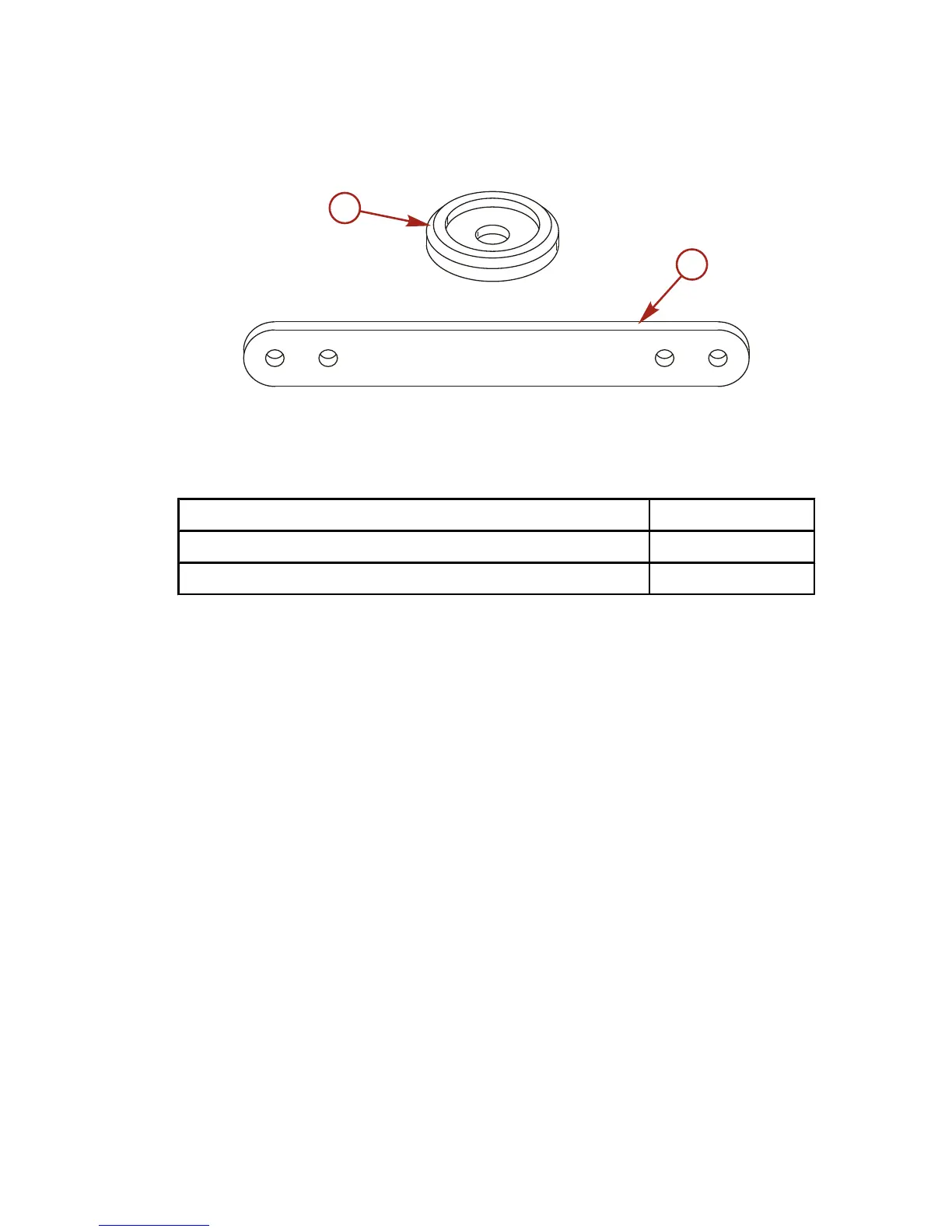

a
b
20860
a - Large transom washer b - Transom reinforcement
plate
Description Part Number
Large transom washer 67‑896392
Transom reinforcement plate 67‑896305
1. Apply marine sealer to shanks of bolts, not the threads.
2. Fasten the outboard with the correct mounting hardware.
Tighten locknuts to the specified torque.

Mercury Optimax Specifications

General

Starting	Electric
Engine Type	2-Stroke
Fuel System	Direct Fuel Injection (DFI)
Displacement	Varies by model (e.g., 1.5L, 1.7L, 2.5L, 3.0L)
Shaft Length	20", 25"
Fuel Tank Capacity	External
Cylinders	Varies by model (e.g., 3, 4, 6 cylinders)
