Mercury Optimax User Manual

FEATURES AND CONTROLS
38
Remote Control Features

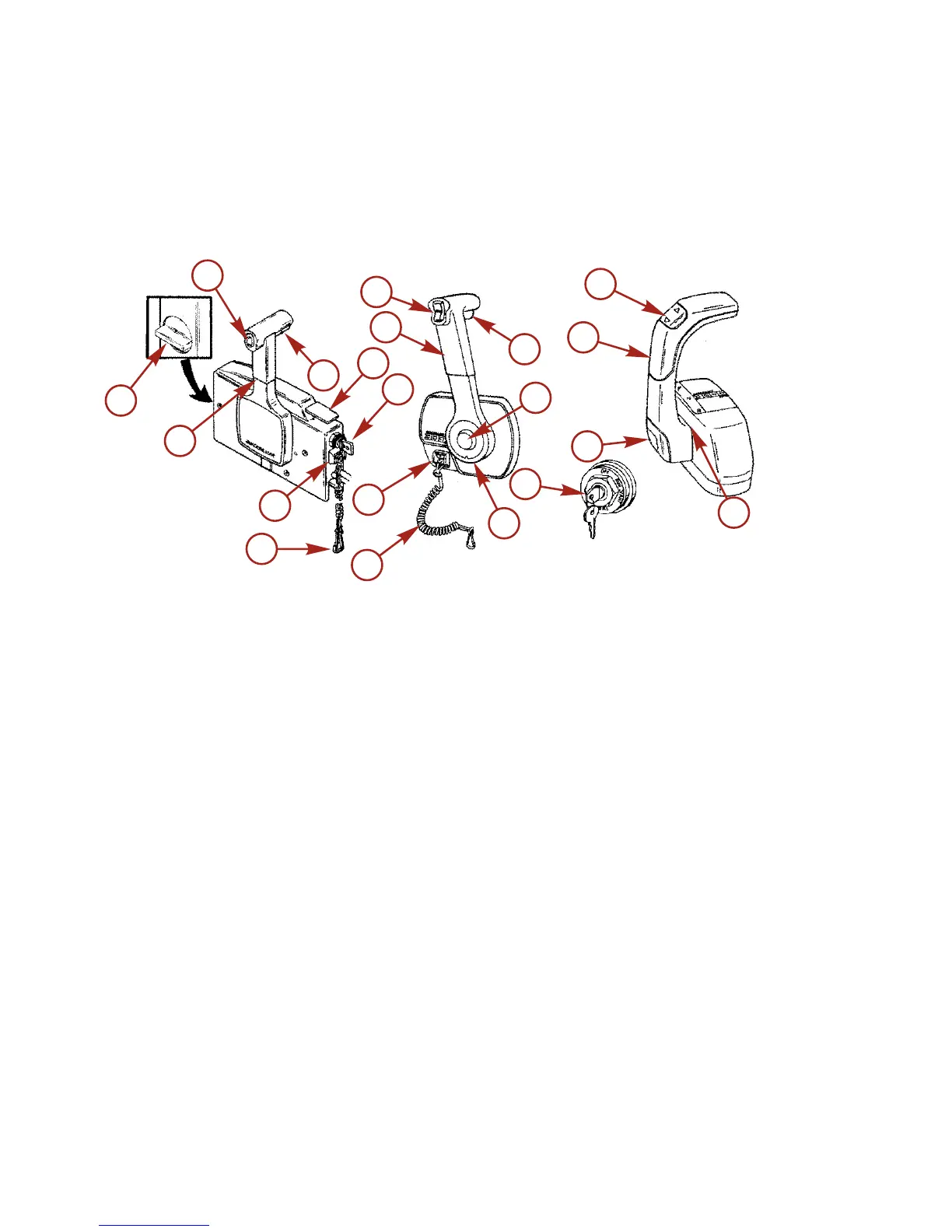

Your boat may be equipped with one of the Mercury Precision or
Quicksilver remote controls shown. If not, consult your dealer for
a description of the functions and operations of the remote control.
f
a
c
d
e
b
h
c
a
g
d
e
b
i
f
g
i
c
a
f
26800
a - Control handle ‑ forward, neutral, reverse.
b - Neutral release lever
c - Trim/tilt switch (if equipped). ‑ Refer to Features &
Controls ‑ Power Trim and Tilt.
d - Lanyard stop switch ‑ Refer to General Information ‑
Lanyard Stop Switch.
e - Lanyard ‑ Refer to General Information ‑ Lanyard Stop
Switch.
f - Throttle friction adjustment ‑ Console controls require
cover removal for adjustment.
g - Ignition key switch ‑ "OFF," "ON," START."
h - Fast idle lever ‑ Refer to Operation ‑ Starting the
Engine.
i - Throttle only button ‑ Refer to Operation ‑ Starting the
Engine.

Mercury Optimax Specifications

General

Starting	Electric
Engine Type	2-Stroke
Fuel System	Direct Fuel Injection (DFI)
Displacement	Varies by model (e.g., 1.5L, 1.7L, 2.5L, 3.0L)
Shaft Length	20", 25"
Fuel Tank Capacity	External
Cylinders	Varies by model (e.g., 3, 4, 6 cylinders)
