OUTBOARD INSTALLATION
108

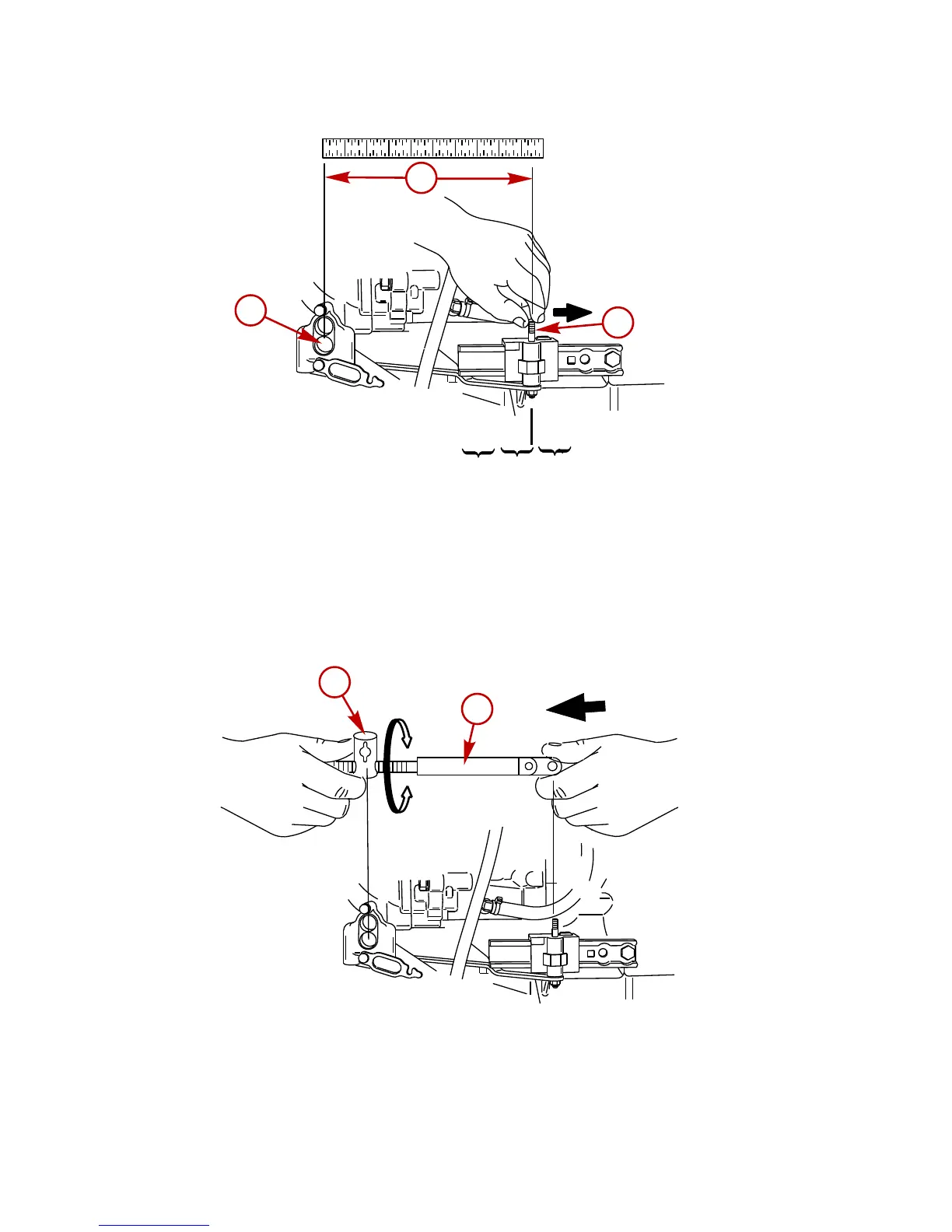

3. Measure the distance between pin and center of barrel pocket.
N R
F
a
b
c
23720
a - Distance between pin and center of lower hole
b - Pin
c - Barrel pocket
4. Push in on the shift cable end until resistance is felt. Adjust
the cable barrel to attain distance measured in Step 3.
a
b
23721
a - Shift cable end b - Cable barrel
