OUTBOARD INSTALLATION
110

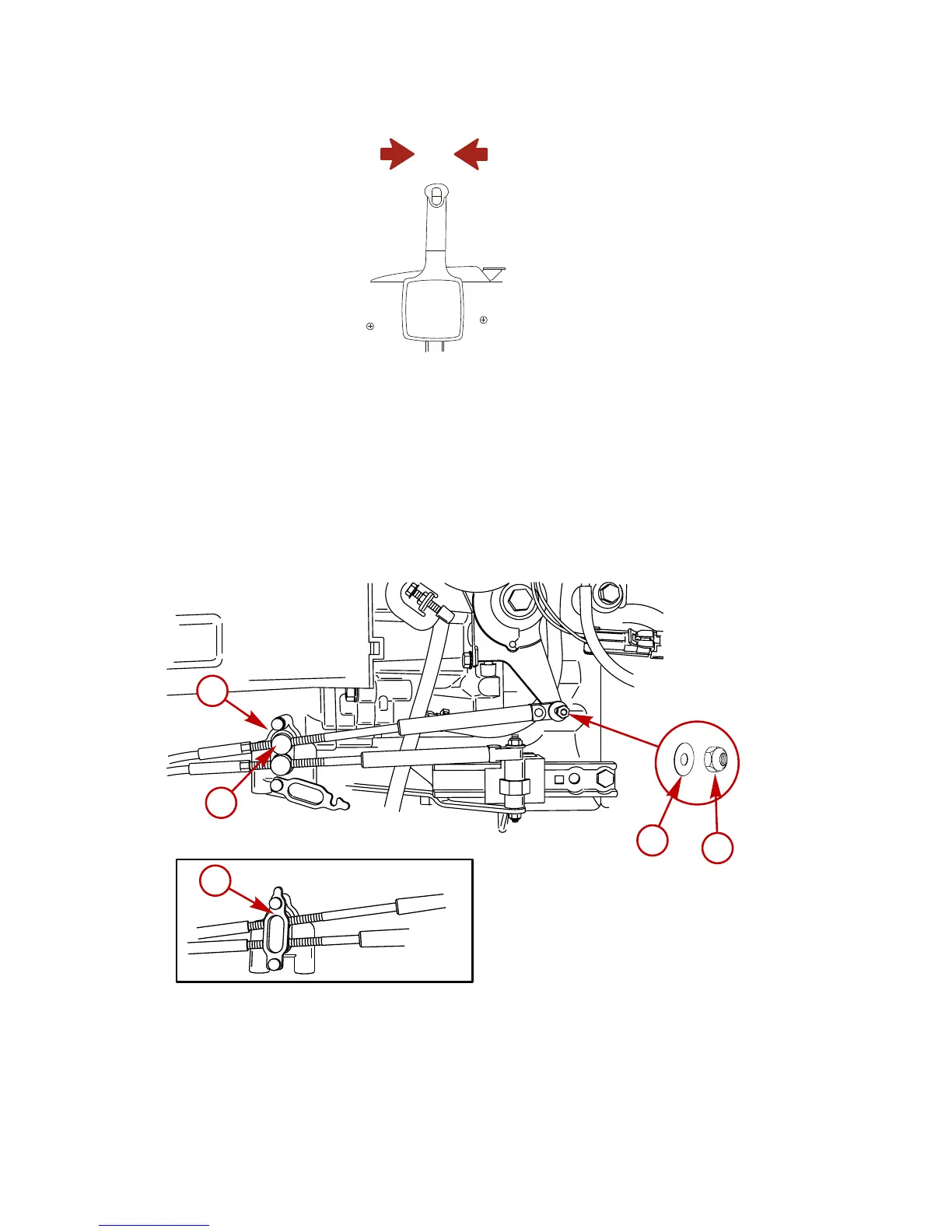

1. Position remote control into neutral.
N
26838
2. Install the throttle cable to the throttle arm with a flat washer
and locknut. Tighten the locknut, then back off the locknut 1/4
turn.
3. Adjust the cable barrel so that the installed throttle cable will
hold the throttle arm against the idle stop.
4. Place the cable barrel into the barrel retainer.
5. Lock the retainer and cables in place with the cable latch.
a
b
c
d
e
15317
a - Flat washer
b - Locknut
c - Barrel retainer
d - Cable barrel
e - Cable latch

Mercury Optimax Specifications

General

Starting	Electric
Engine Type	2-Stroke
Fuel System	Direct Fuel Injection (DFI)
Displacement	Varies by model (e.g., 1.5L, 1.7L, 2.5L, 3.0L)
Shaft Length	20", 25"
Fuel Tank Capacity	External
Cylinders	Varies by model (e.g., 3, 4, 6 cylinders)
