Mercusys MW150US User Guide

Chapter 3 - Connect to a Wireless Network
7

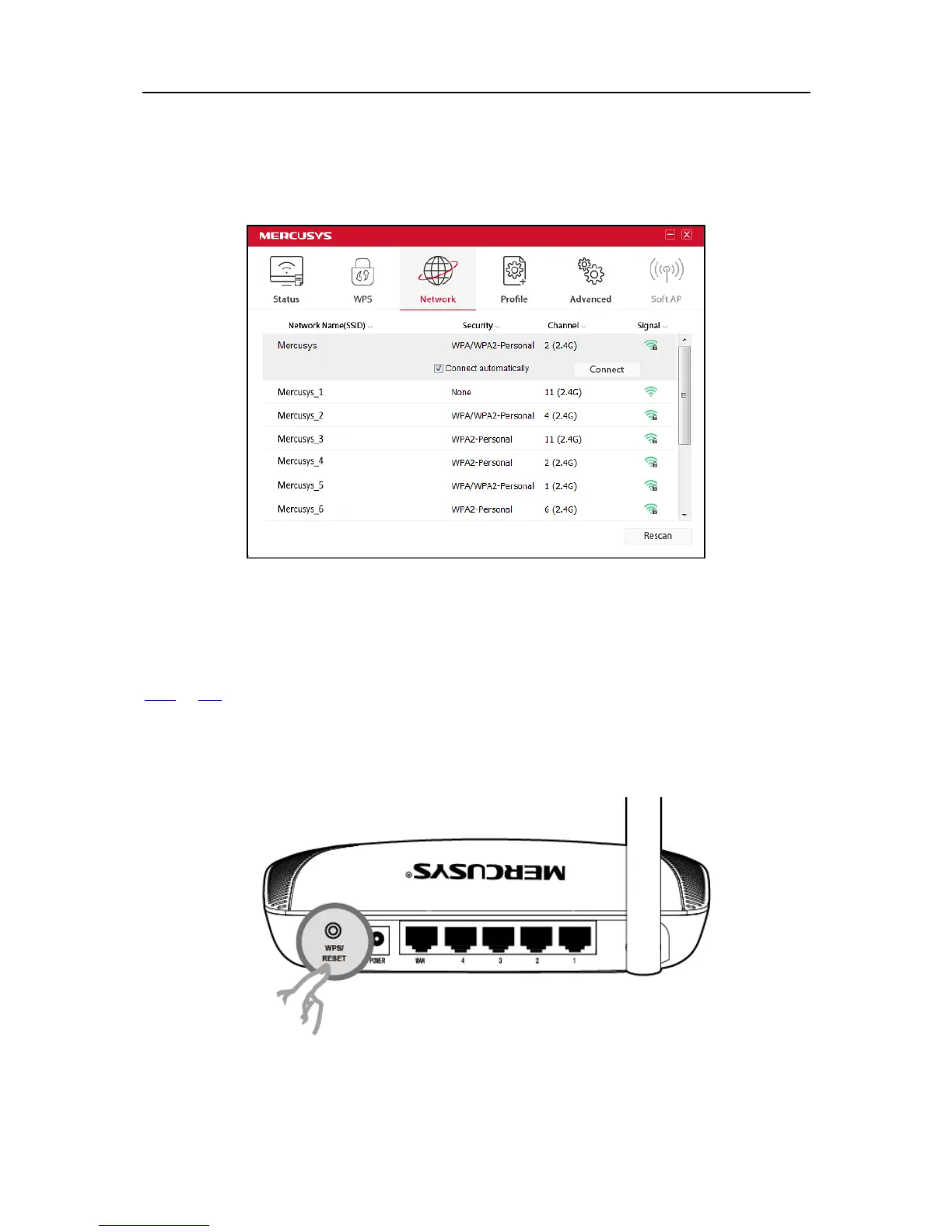

2. Select the network you want to join from the list and click Connect. If you want the adapter to
automatically connect your target network next time, select Connect automatically. Then
enter your Wi-Fi password when prompted.
3.2 WPS (Wi-Fi Protected Setup)
If your router supports WPS, you can establish a wireless connection between wireless adapter
and router using either Push Button Configuration (PBC) method or PIN method. Please refer to
PBC or PIN
below.
 PBC
1. Press the WPS button on your router or AP.
2. Open MERCUSYS Utility and click WPS tab. Select Push the button on my access point or
wireless router and then click Connect.

Mercusys MW150US Specifications

General

Internal	No
Product type	Portable router
Certification	CE, ROHS
Component for	-
Product color	White
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Frequency range	2.4 - 2.4835 GHz
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN interface type	Not available
USB version	2.0
Connectivity technology	Wireless
Windows operating systems supported	Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Transmit power	0 dBmW
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Transmit power range	0 - 20 dBmW
Package type	Box
Package depth	100 mm
Package width	150 mm
Package height	28 mm
Package weight	56 g
Sustainability certificates	CE, RoHS

Weight and Dimensions

Depth	14.8 mm
Width	18.9 mm
Height	6.85 mm
