Meritor Differential Carrier 18X
4 Pinion Seal Replacement

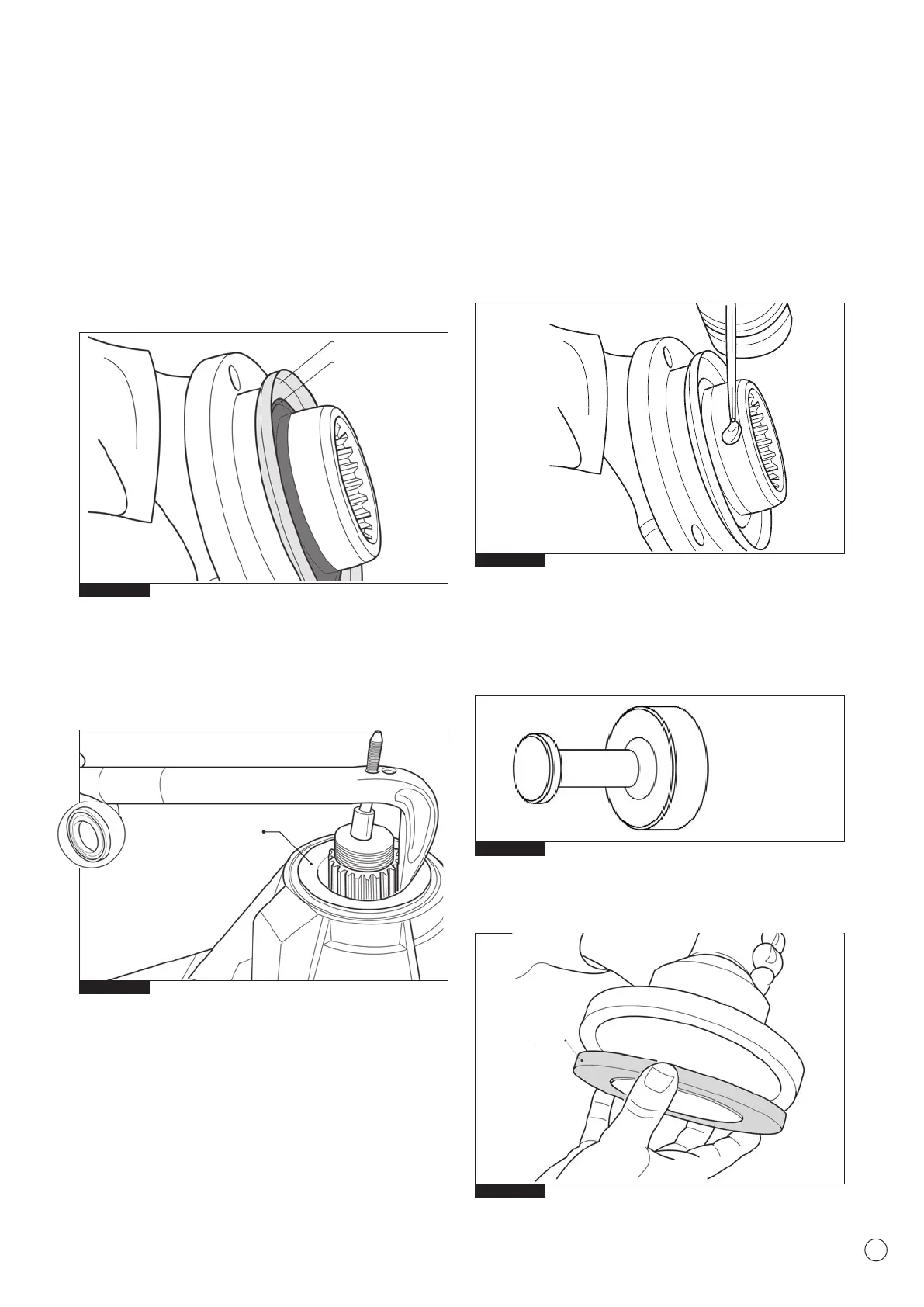

Fig. 4.5
7. Inspect the deflector for damage. If necessary replace the
part. (Fig. 4.5)
8. Remove the rotary seal sleeve from the flange. (Fig. 4.5)
Deflector
Seal Rotary
Sleeve
9. Remove seal outer case with use of service tool MST4401 -
CT14.
Discard seal and replace with new for rebuild (Fig. 4.6)
Fig. 4.6
MST4401 - CT14
Seal Outer Case
Assembly
1. If the deflector needs to be replaced, lubricate the flange and
use the suitable tool MST4807 for assembly.
2. If the deflector does not need to be replaced, lubricate the
seal rotary sleeve journal of the flange (Fig. 4.7)
3. Fit the seal rotary sleeve on the flange using the suitable tool
MST4808.
4. Insert seal outer case into service tool MST4410 - CT26
(Fig.4.9)
Fig. 4.9
Seal
Outer Case
Fig. 4.7
Fig. 4.8
