2.2 To replace the front rigging assembly
u When you should replace the front rigging assembly?
◇ If the front rigging assembly is deformation.
◇ If your power wheelchair can not avoid knocked or bumped cause the
front rigging assembly is deformed.
◇ If the front rigging assembly is out of shape due to an accident.
u How to replace the front rigging assembly?
◇ Please proceeding steps as follows if it has to replace.

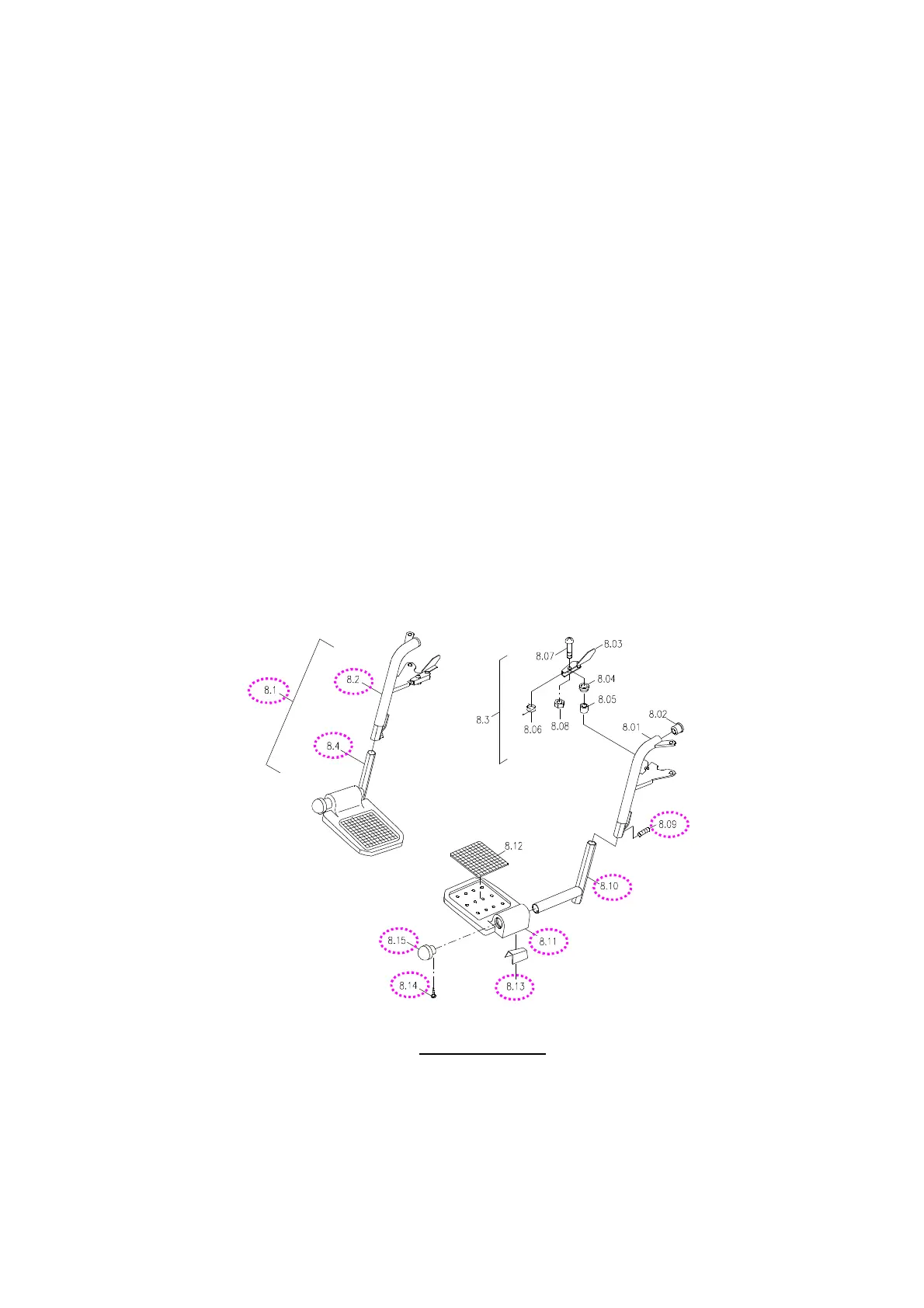

1. Replace the footrest assembly if it is worn out or deformed.
A. Hex. tube type
a. Swing out the footrest and take out it from the side frame. Use hex.
tools to loosen the screw (8.09) and then replace the footrest hanger
assembly (8.2) or the footplate & extension tube assembly (8.4) if it
is worn out or deformed.
b. Use screwdriver to loosen the screw (8.14), and remove the bumper
rubber (8.15), footplate (8.11) and spring plate (8.13), and then
replace the footplate (8.11) or extension tube (8.10) if it is worn out
or deformed.
Hex. tube type
B. Round tube type
a. Swing out the footrest and take out it from the side frame. Use hex.
tools to loosen these two screws (8.14) and then replace the footrest
hanger assembly (8.2) or the footplate & extension tube assembly
(8.4) if it is worn out or deformed.
