2.3 To replace the armrest assembly
◆ When you should replace the armrest assembly?
◇ If the armrest assembly is worn out.
◇ If the padded armrest pad is pierced or scratched by something.
◇ If the power wheelchair crashed cause the armrest assembly out of
shape.
◆ How to replace the armrest assembly?
◇ Please proceeding steps as follows if it has to replace.

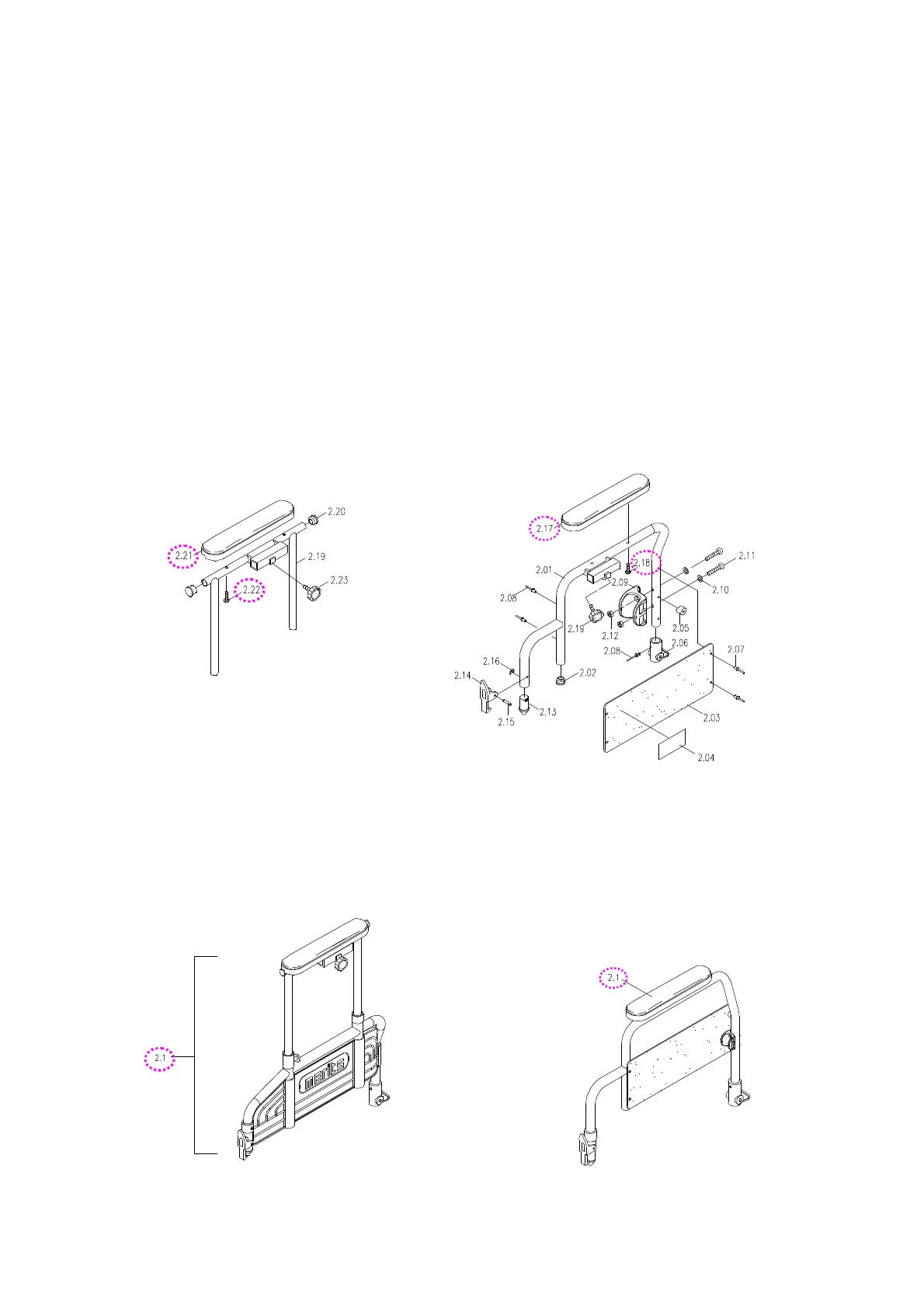

1. Use screwdriver to loosen the screw (2.22 or 2.18) under armrest to
disassemble armrest from armrest support tube. If the padded armrest
pad (2.21 or 2.17) is broken, then replace it.
2. Use hex. tools and wrench to loosen the screw (1.08) and nut (1.05)
from bracket (1.07) on the side frame (see page 14). If the armrest
assembly (2.1) is worn out or deformed, then replace it.
