28

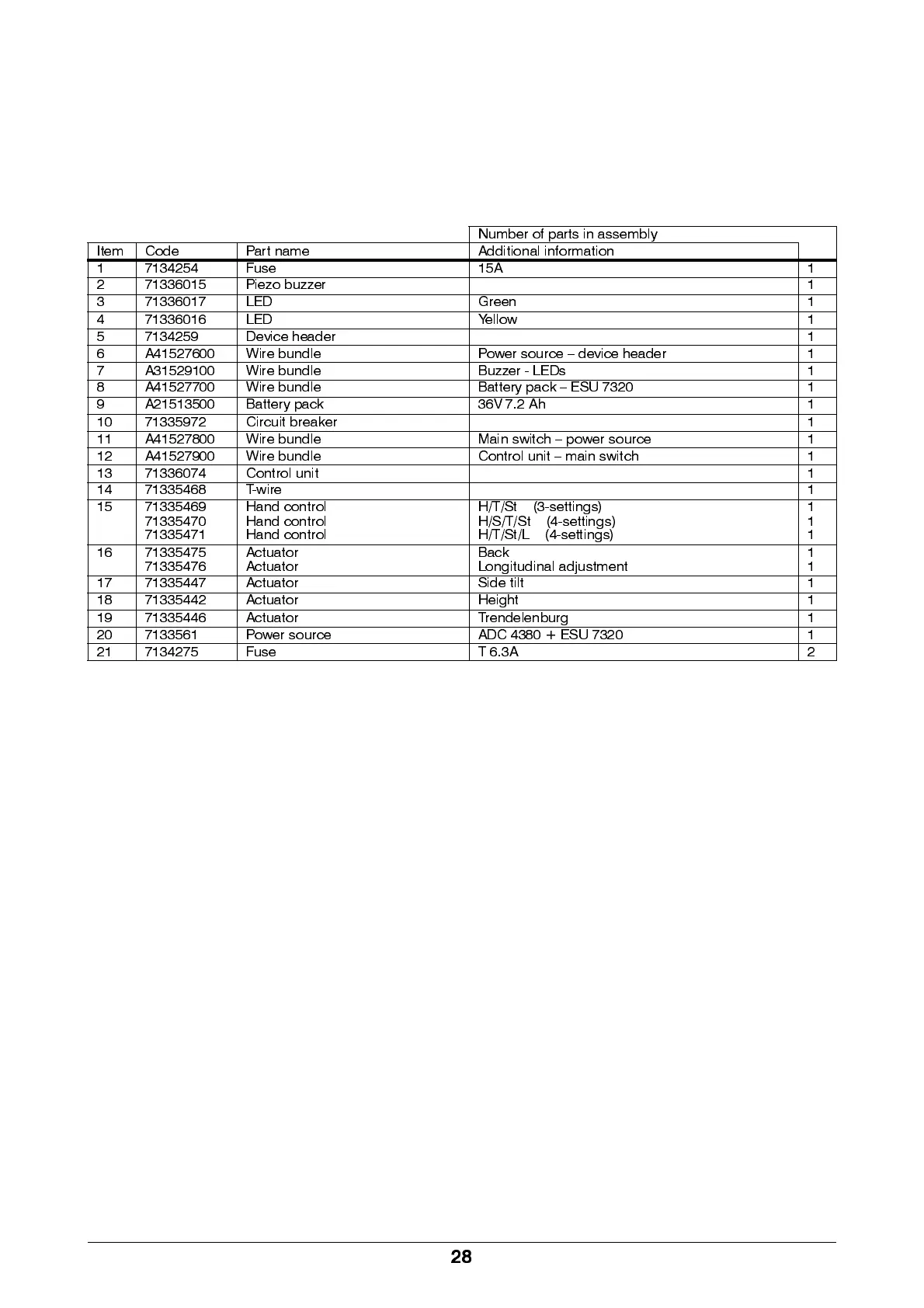

Number of parts in assembly
Item Cod e Part name Additio n al info rma ti on
1 7134254 Fuse 15A 1
2 71336015 Piezo buzzer 1
3 71336017 LED Green 1
4 71336016 LED Yellow 1
5 7134259 Device header 1
6 A41527600 Wire bundle Power source – device header 1
7 A31529100 Wire bundle Buzzer - LEDs 1
8 A41527700 Wire bundle Battery pack – ESU 7320 1
9 A21513500 Battery pack 36V 7.2 Ah 1
10 71335972 Circuit breaker 1
11 A41527800 Wire bundle Main switch – power source 1
12 A41527900 Wire bundle Control unit – main switch 1
13 71336074 Control unit 1
14 71335468 T-wire 1
15 71335469
71335470
71335471
Hand control
Hand control
Hand control
H/T/St (3-settings)
H/S/T/St (4-settings)
H/T/St/L (4-settings)
1
1
1
16 71335475
71335476
Actuator
Actuator
Back
Longitudinal adjustment
1
1
17 71335447 Actuator Side tilt 1
18 71335442 Actuator Height 1
19 71335446 Actuator Trendelenburg 1
20 7133561 Power source ADC 4380 + ESU 7320 1
21 7134275 Fuse T 6.3A 2
