14

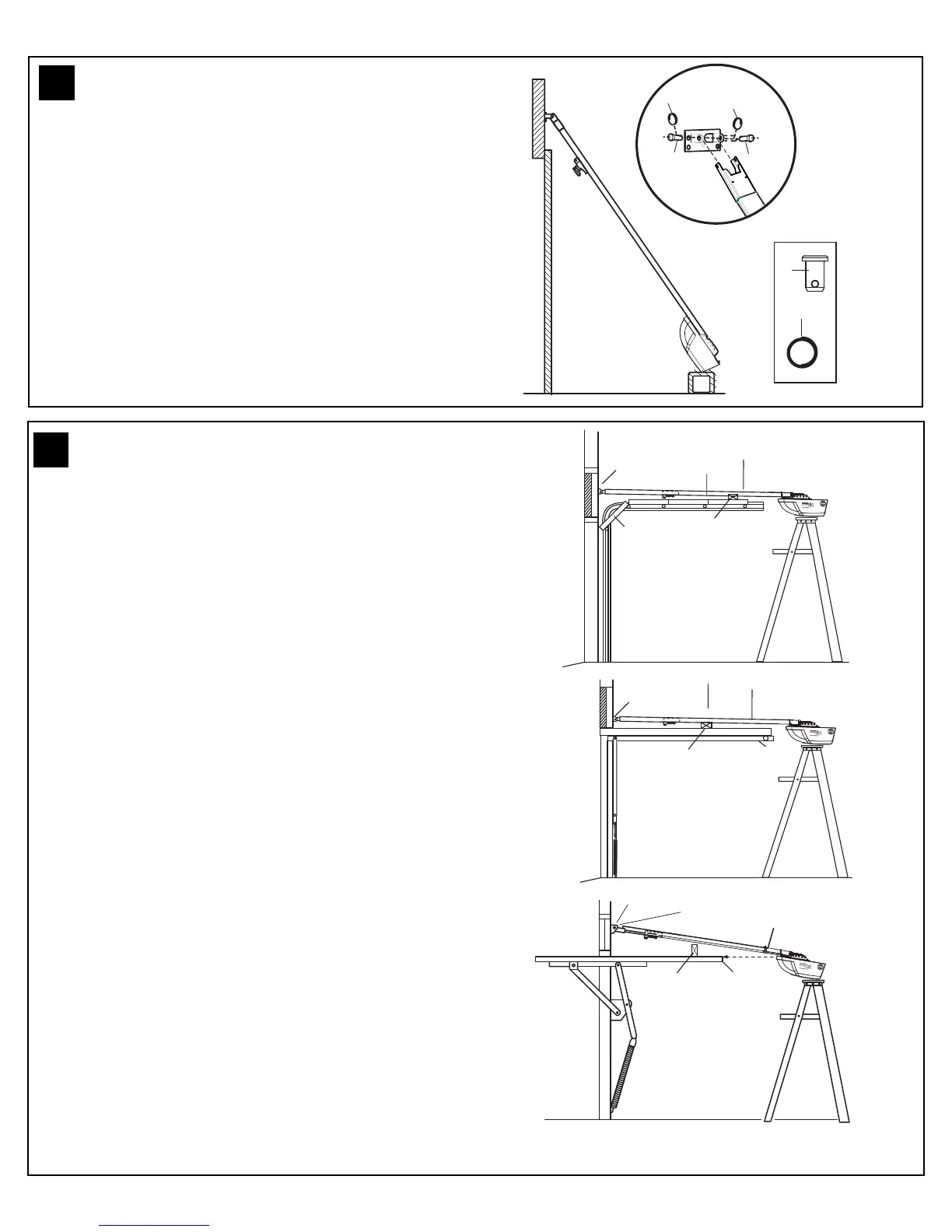

Position opener on garage floor below the header bracket.
Use packing material to protect the cover. Raise rail until
holes in the header sleeve and holes in the header bracket
align. Join with clevis pins (1). Insert ring fasteners (2) to
secure.
NOTE:To enable the rail to clear sectional door
springs, it may be necessary to lift opener onto a
temporary support. The opener must either be
secured to a support or held firmly in place by another
person.
8
ATTACH RAIL TO HEADER BRACKET
15
Rail
Door
50mm spacer should
be used to determine
the correct mounting
position
Header
Bracket
50mm (2”)
above the highest
point of travel
Header
Bracket
50mm spacer should
be used to determine
the correct mounting
position
50mm (2”)
above the highest
point of travel
Door
Rail
100mm spacer should
be used to determine
the correct mounting
position
Door
Header
200mm (8”)
above the highest
point of travel
Bracket
Rail
POSITION THE OPENER
SECTIONAL DOOR OR
TRACKED TILT DOOR
You will need a 50mm piece of timber or similar
spacer to gauge the distance between door and rail.
1. Raise the opener onto support.
2. Open the door completely, place a 50mm
spacer between the door and the rail
(as shown).
3. If the top section or panel hits the trolley when
you raise the door, pull down on the trolley arm
to disengage the opener. Leave the trolley in this
position until opener is fastened in place.
ONE PIECE TILT DOOR
You will need a 100mm (4”) piece of timber or similar
spacer to gauge the distance between door and rail.
1. Raise the opener onto support.
2. Open the door completely, place a 100mm
spacer between the door and the rail
(as shown).
3. The top of the door should be level with the top
of the opener. Do not position the opener more
than 50mm (2”) above this point.
