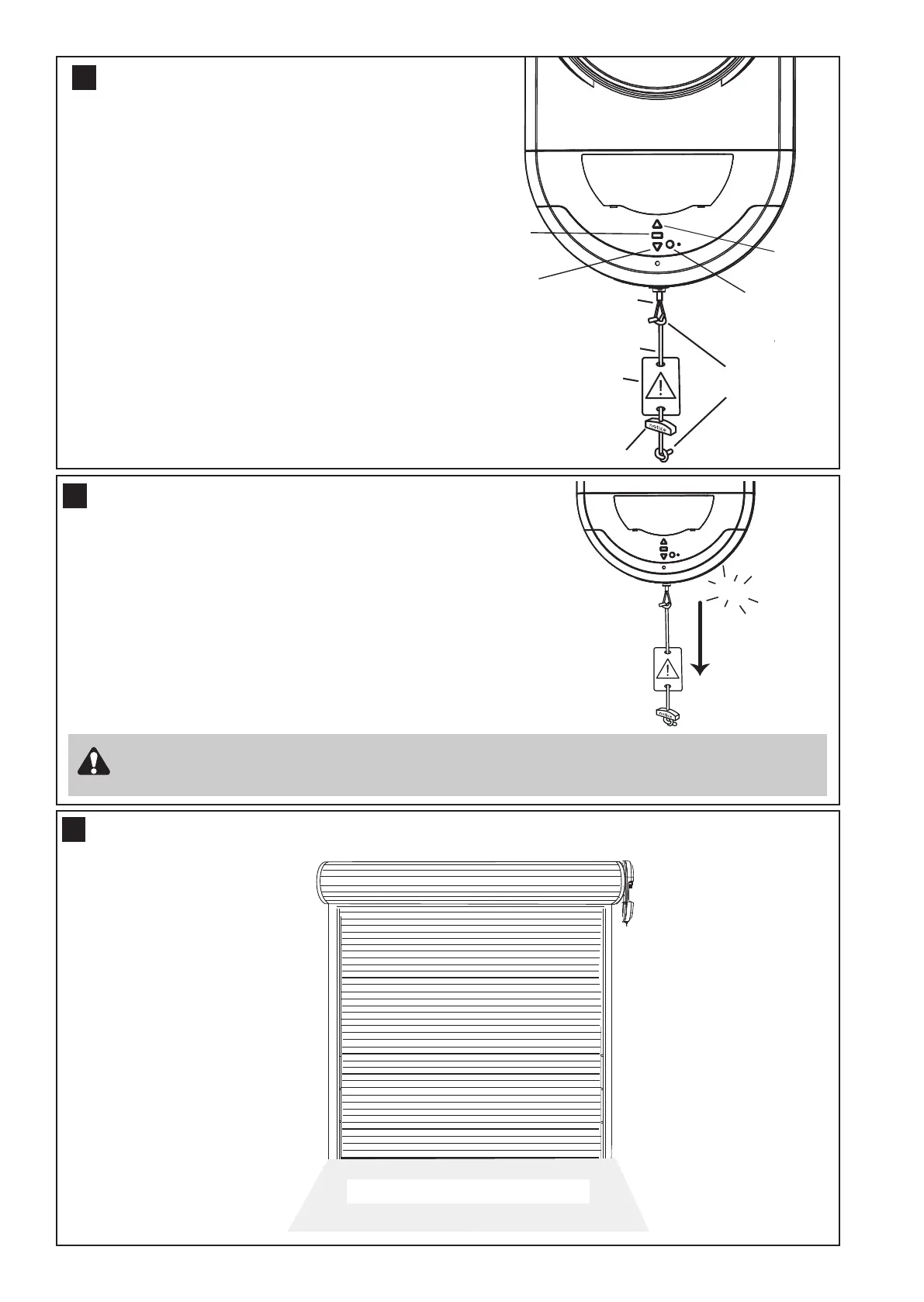

To disengage the opener
Pull the release cord down firmly,
(opener will make a clicking noise).
To re-engage the opener
Pull the release cord down firmly,
(opener will make a clicking noise).
Disable all locks and remove any ropes connected to the door.
Take care when operating the manual release as an open door may fall rapidly due to weak or
broken springs, or being out of balance.
OPERATING THE MANUAL RELEASE
8
Release cable
Rope
Manual release
warning label
Release handle
Overhand knot
DOWN Arrow
button
UP Arrow
button
Learn
button
Learn Limits
button
• Thread one end of the rope through the hole in the top
of the red release handle so that “NOTICE” reads
right side up as shown.
• Secure with an overhand knot at least 25mm from the
end of the rope to prevent slipping.
• Thread the other end of the rope through the loop of
the manual release cable.
• Adjust rope length so the handle (when installed) will
be no higher than 1.8 m above the floor. Secure with
an overhand knot.
NOTE: Final adjustment of handle height should be
completed after the opener is installed. If it is
necessary to cut the rope, heat seal the cut end to
prevent unravelling (refer section 13).
THE RELEASE HANDLE & CORD
7
LEFT / RIGHT HAND INSTALLATION
9
LEFT
(handing must be
changed during limit
setting, section 11)
RIGHT
(factory
default
setting)
Inside looking out
