Merlin Overdrive - 22-23 Parts and Accessories; Spare Parts Identification; Compatible Accessories List

14
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons
in order to avoid hazard.
001A6621
041A6811-3
041B0603
001A6528
041B0640
001B6451-3S
041A7460
041D7403
041B0029
041B0641-2
026B0166
204D0250
22

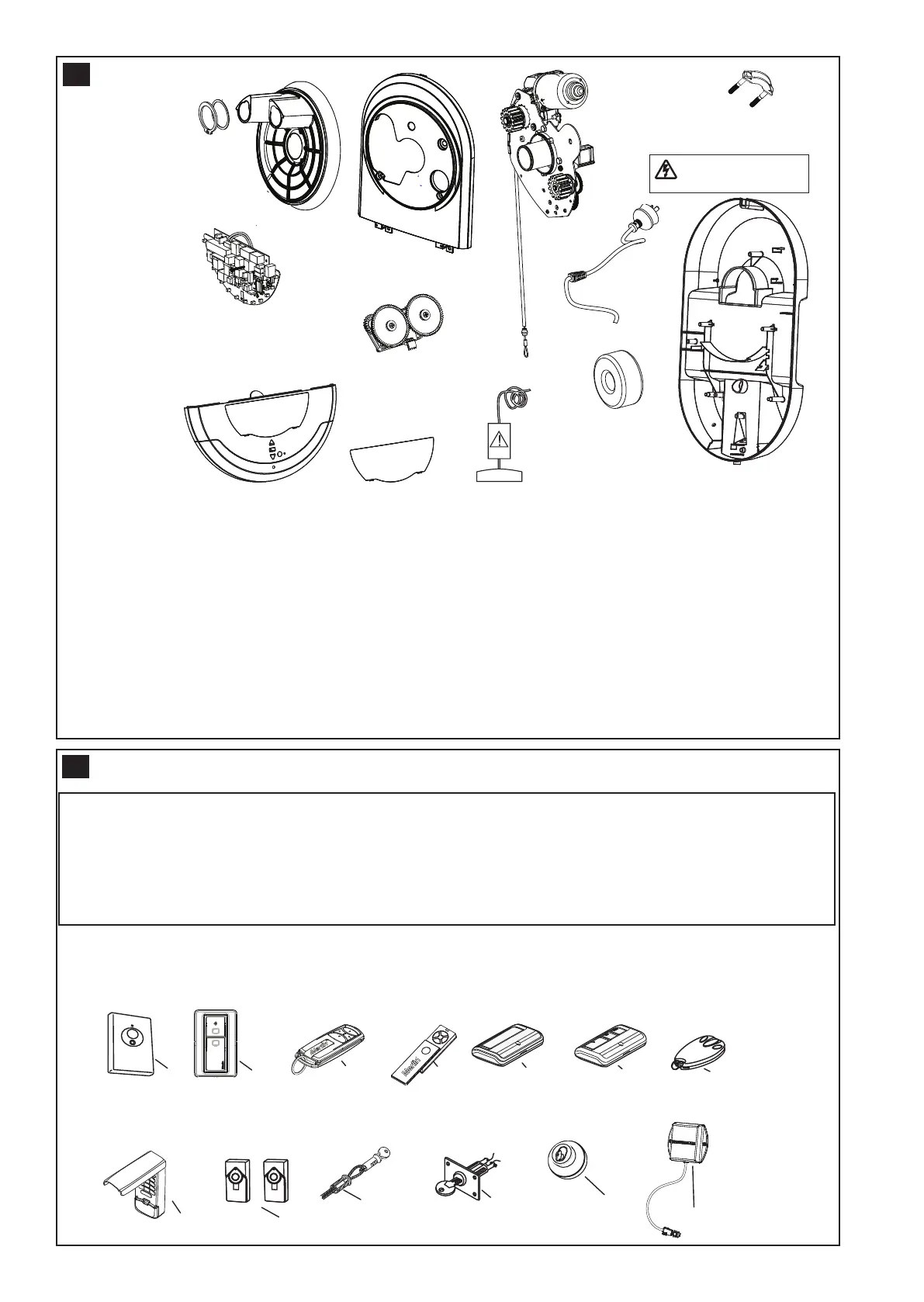

SPARE PARTS
041A6811-3 Mount plate sub assembly (including motor)
041B0029 Sungear kit - Aluminium
041B0603 Front upper housing
041B0640 Base housing
041D7403 Service logic board
041A7460 Removable cover sub assembly
041B0641-2 Hinged access cove
204D0250 230V 105VA transformer
026B0166 Power Cord
001A6621 Clamp & bolt assembly
001B6451-3S Handle & pull rope assembly
001A6528 Absolute Position Encoder (APE)
13
12
8
7
9
1
6
E840M
E128M
760E
E1702M
774ANZ
E940M E943M
E945M
10
11
4
5
E950M
E138M
2
3
E960M
E475M-12V
DMK1
23
NOTE: Only genuine Merlin accessories are approved for use with this opener. Generic compatible accessories are NOT approved for
use with this opener.
ACCESSORIES
(1) Model E128M Wireless wall button
(2) Model E138M Wireless wall button
(3) Model E960M 4 Channel remote control
(4) Model E950M 4 Channel remote control
(5) Model E940M 1 Channel visor remote control
(6) Model E943M 3 Channel visor remote control
(7) Model E945M 3 Channel mini remote control
(8) Model E840M Keyless entry system
(9) Model 774ANZ The Protector System
TM
(10) Model E1702M Quick release lock
(11) Model 760E Outside keyswitch
(12) Model DMK1 Outside quick release (brick fix)
(13) Model E475M-12 V Standby Power Unit (battery back up)
