6
LEFT / RIGHT HAND INSTALLATION
12
LEFT
(handing must
be changed
during limit
setting - refer to
section 14)
RIGHT
(factory
default
setting)
Inside garage looking out
E
xtension pole
R
einforcing Brace
Optional accessory not provided

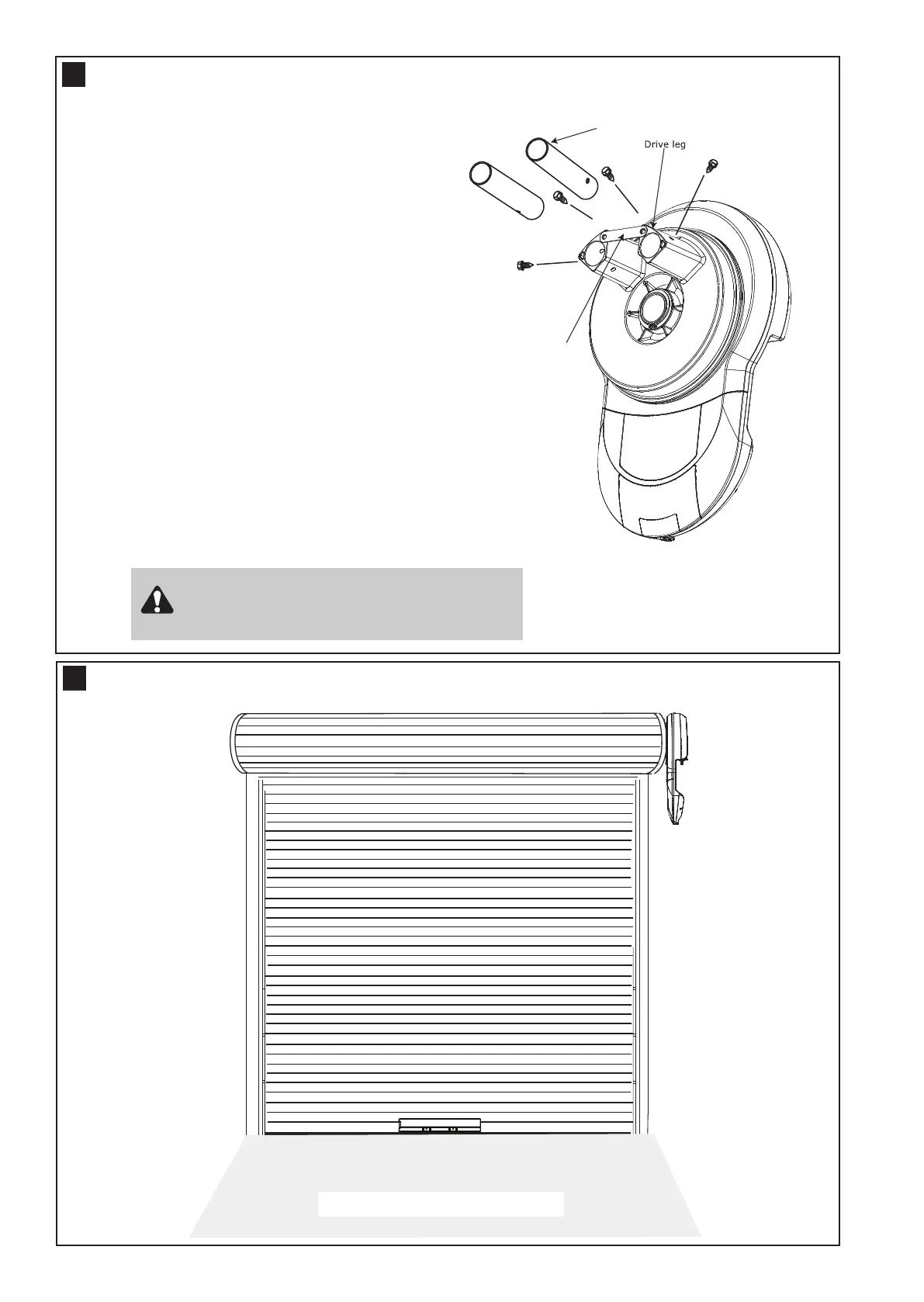

• Insert the extension poles into the drive legs.
• Align the holes on the extension poles with the holes
on the drive legs.
• Using the screws provided, secure the extension
poles.
• Align the holes of the reinforcing brace with the two
holes on the end of the drive legs as shown and fix in
place using the screws provided. Please note that the
reinforcing brace MUST be applied.
ATTACHING EXTENSION POLES (IF REQUIRED)
11
Reinforcing brace must be used. Use
extension pole kit part number 002A1828.
