MERLYN MB3B - 页 5

TOP
x3
6A
6B
6C
FIG 6
BOTTOM
Fig 7.
7.
bracket.
7C
7G
6 mm
7D
7E
7F
FIG 7
Top Bracket
SP0LF01
Bottom Bracket
SP0LF02
7A
7B
Note: Ensure bottom pivot bracket is always on the bottom of the fixed panel.

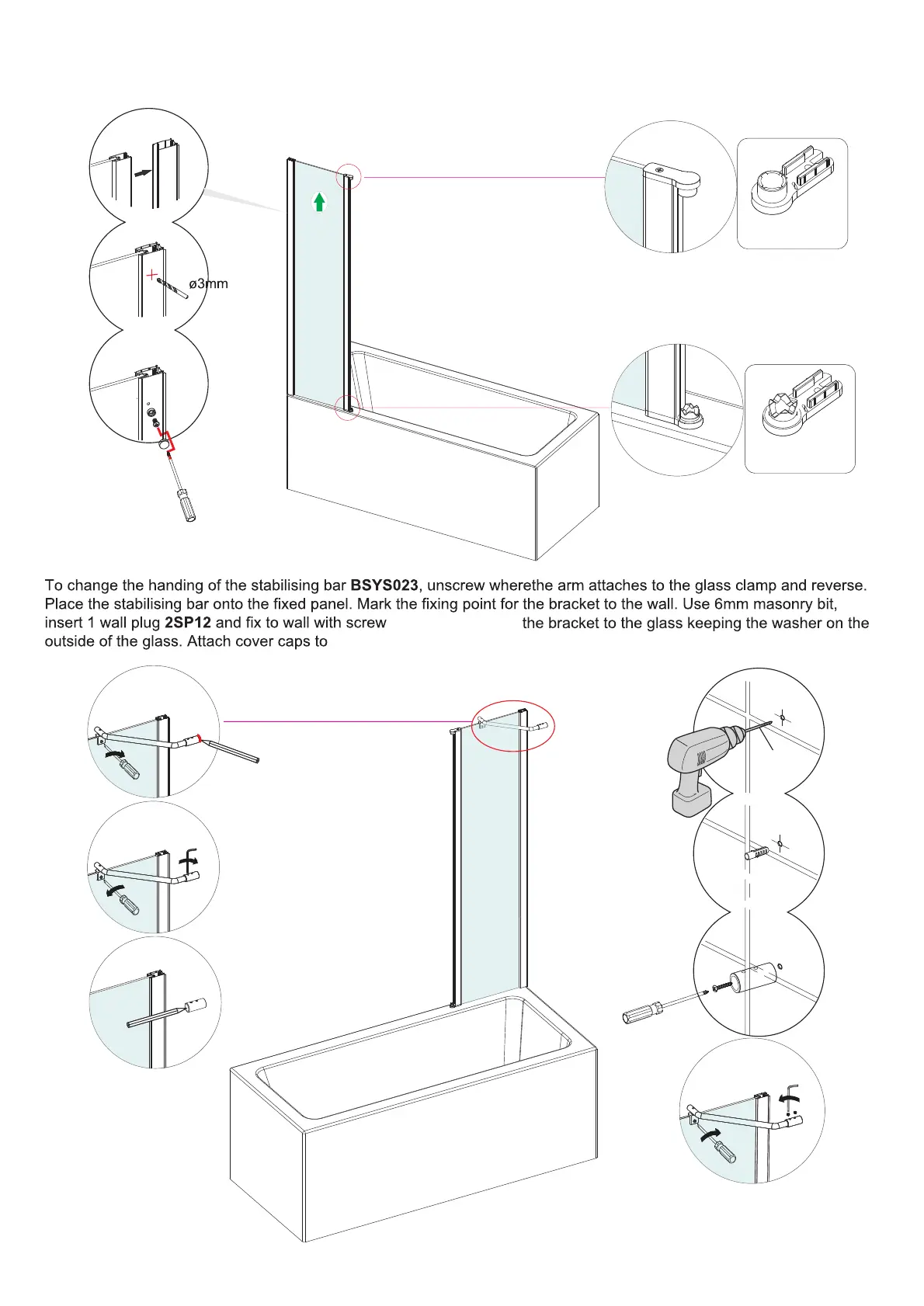

6. Drill 3 holes top,middle and bottom through the wall profile and fixed panel using a 3mm steel drill bit. Using the Screws
A2401201,and screw cover caps 2SS008 and screw cover caps clips 2SS009 fix the hinge upright to the wall profile in 3
places.Fig 6.
A2403001. Fasten
