Installing AP1000
© 2010 Meru Networks, Inc. Installing AP1000 63
AP1000 Beta Test
3. Attach the PoE Ethernet cable to the Ethernet port shown in Figure 37.

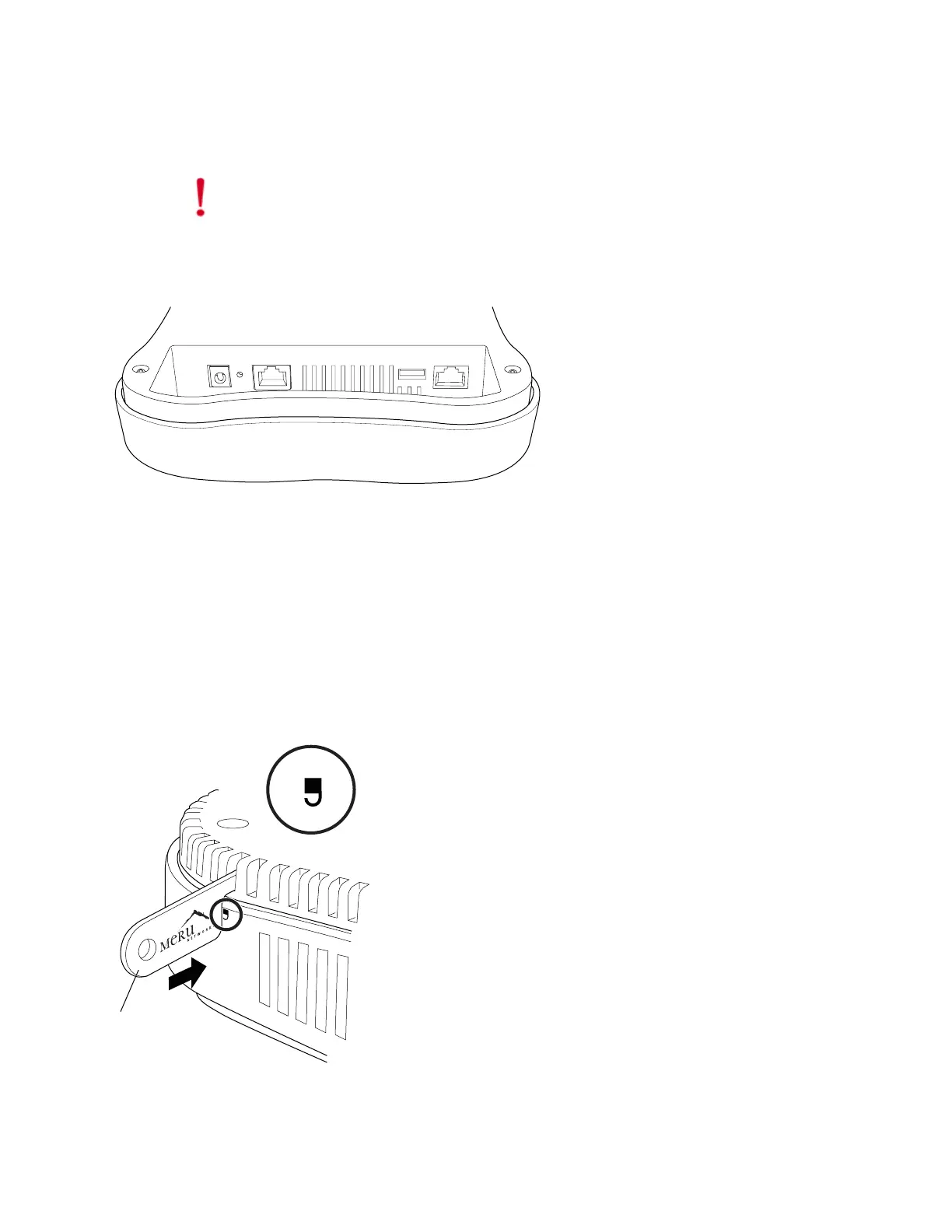

Figure 37: AP1000 Ethernet Port
4. Align the tabs on the wall bracket with the tabs on the wall and slide the unit down slightly. See
Figure 35.
Mount AP1000 on a Wall Using the Optional Locking Kit
The AP1000 locking wall mount kit (840-00052 ACC-MNT-AP1000-01)contains a wall bracket, screws,
and a locking key. To mount an AP1000 on sheetrock or wall studs with this kit, follow these steps:
1. Check to be sure that AP1000 is not locked by inserting the locking key into the Unlock mechanism
as shown below.
Figure 38: Unlock AP1000
Caution! Be sure to connect the Ethernet cable to the Ethernet port. The cable can
mistakenly be plugged into the Console port; if you do this. the AP won’t power up.
00248
00253
Key
UNLOCK
