Installing AP1000
© 2010 Meru Networks, Inc. Installing AP1000 59
AP1000 Beta Test
Install the Access Point
You can mount AP1000 in any of the following ways:
z Mount AP1000 Below a Suspended Ceiling
z Mount AP1000 on a Wall
z Mount AP1000 on a Wall Using the Optional Locking Kit
z Set AP1000 on a Shelf
z Mount AP1000 Above a Suspended Ceiling (Plenum)
Mount AP1000 Below a Suspended Ceiling
AP1000 ships ready to mount below a suspended ceiling; the built-in clips snap onto a ceiling rail. To
mount an AP1000 below a suspended ceiling, follow these steps:
1. Remove the ceiling tiles at the location the AP will be mounted.

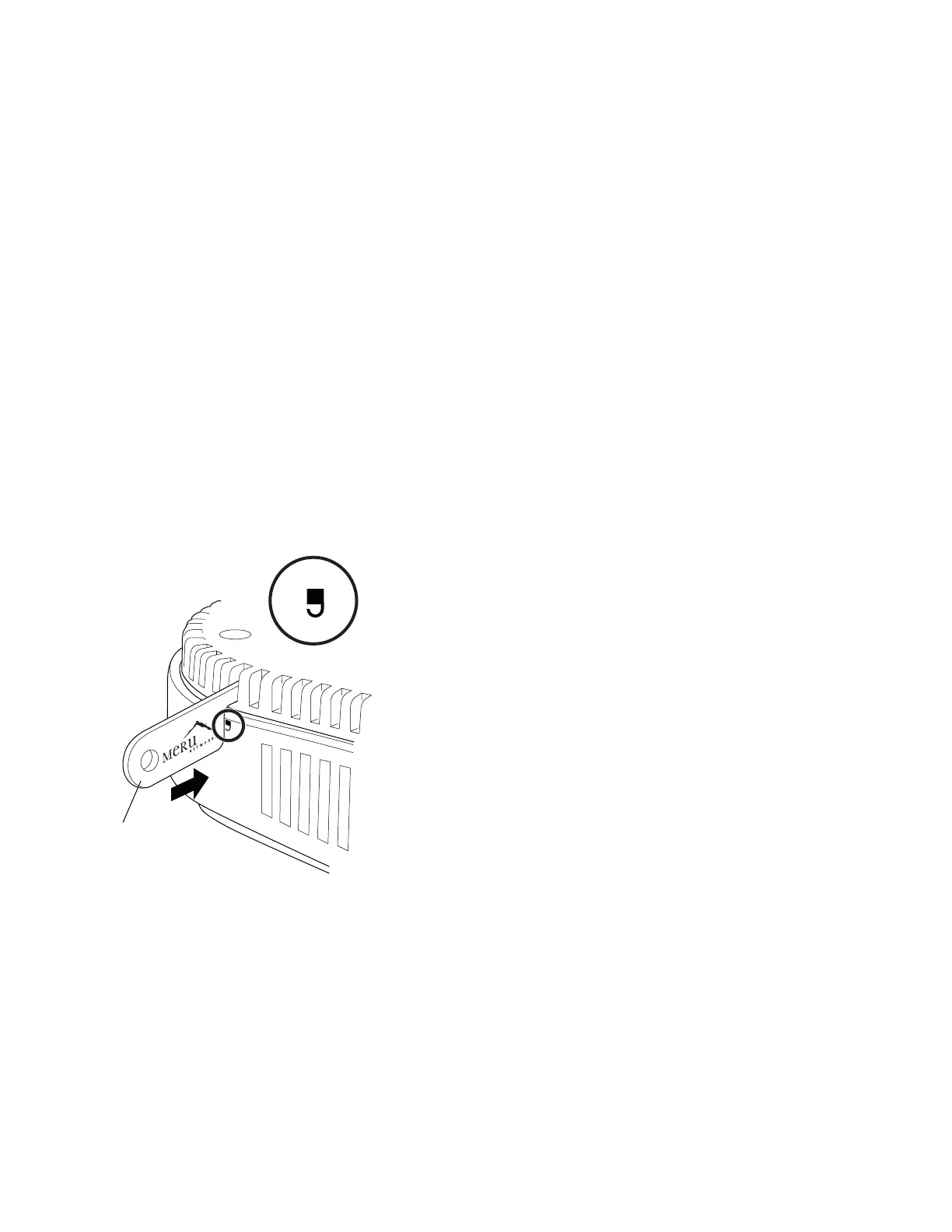

2. Be sure that AP1000 is not locked by inserting the locking key into the Unlock mechanism as shown
in Figure 31 below.
Figure 31: Unlock AP1000
3. Align the ceiling t-bar with the AP1000 slots indicated in Figure 32 below.
00253
Key
UNLOCK
6
