60 Meru Access Point Installation Guide © 2010 Meru Networks, Inc.
Installing AP1000
AP1000 Beta Test

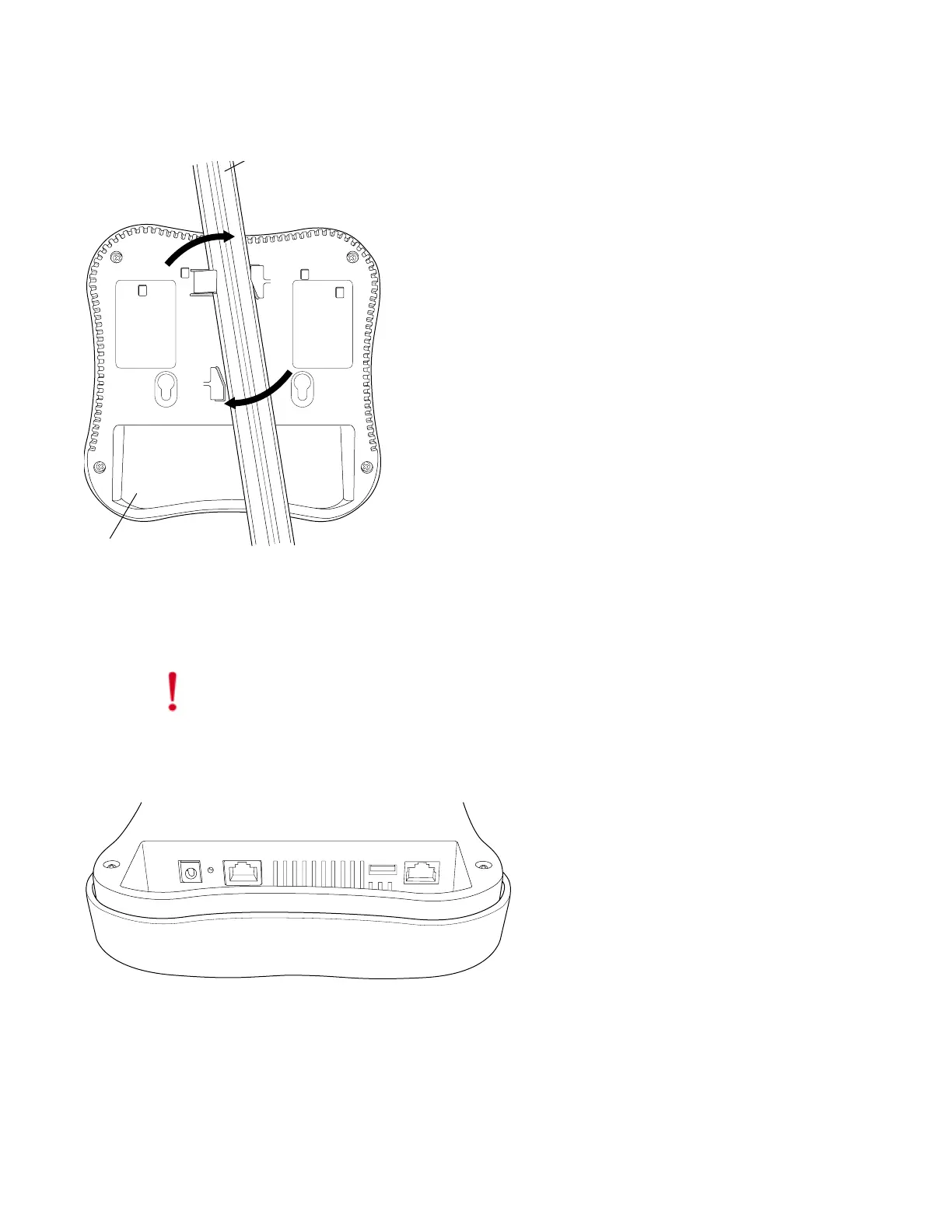

Figure 32: Install AP1000 Below a Suspended Ceiling 247
4. Press down on the tab indicated in Figure 32 above and rotate the AP1000 into place.
5. Connect one end of the CAT5 (or greater) Ethernet cable with PoE to the 100/1000 Ethernet
connector shown in Figure 33 below.
Figure 33: AP1000 Ethernet Port
6. If you want to lock AP1000 in place, use the supplied locking tool to press the AP1000 locking
mechanism shown in Figure 34.
Caution!
Be sure to connect the Ethernet cable to the Ethernet port. The cable can
mistakenly be plugged into the Console port; if you do this, the AP won’t power up.
(in ceiling)
AP1000
00247
00248
7
