8 OHM 4 OHM 4 OHM
Partial back view of amplifier
8 Ohm Cabinet
8 Ohm Cabinet
6
8 Ohm Cabinet
16 Ohm Cabinet
8
4 OHM 4 OHM 8 OHM
Partial back view of amplifier
SAFE MISMATCH
8 OHM
Partial back view of amplifier
SERIES BOX
8 Ohm
4 Ohm
4 Ohm
4 Ohm Cabinet
4 Ohm Cabinet
4 OHM 4 OHM
8 OHM
Partial back view of amplifier
PARALLEL BOX
8 Ohm
16 Ohm
16 Ohm
16 Ohm Cabinet
16 Ohm Cabinet
9
4 OHM 4 OHM
7

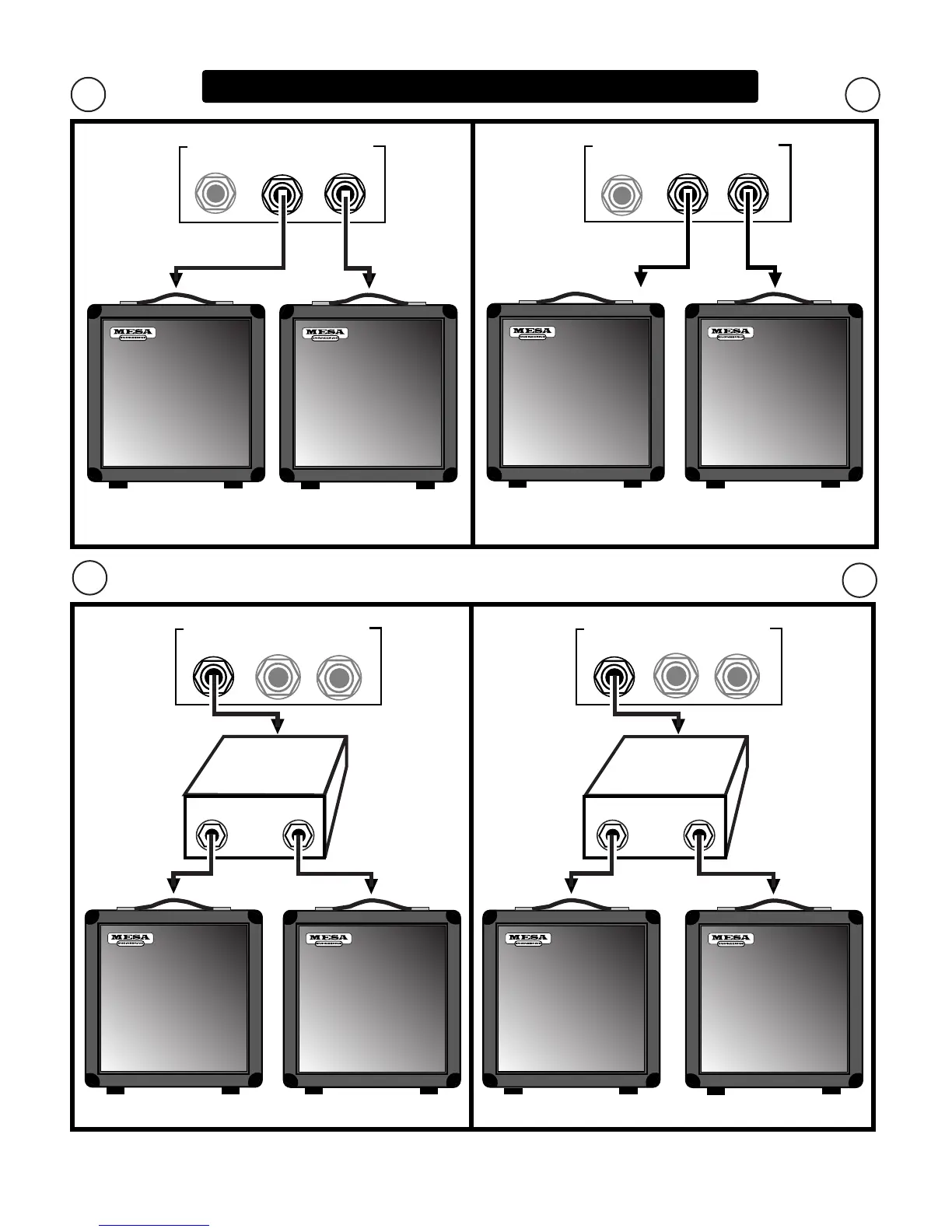

WIRING SCHEMES...Amplifier to Speaker Cabinets
CORRECT MATCH
CORRECT
MATCH
CORRECT
MATCH
PAGE 43
