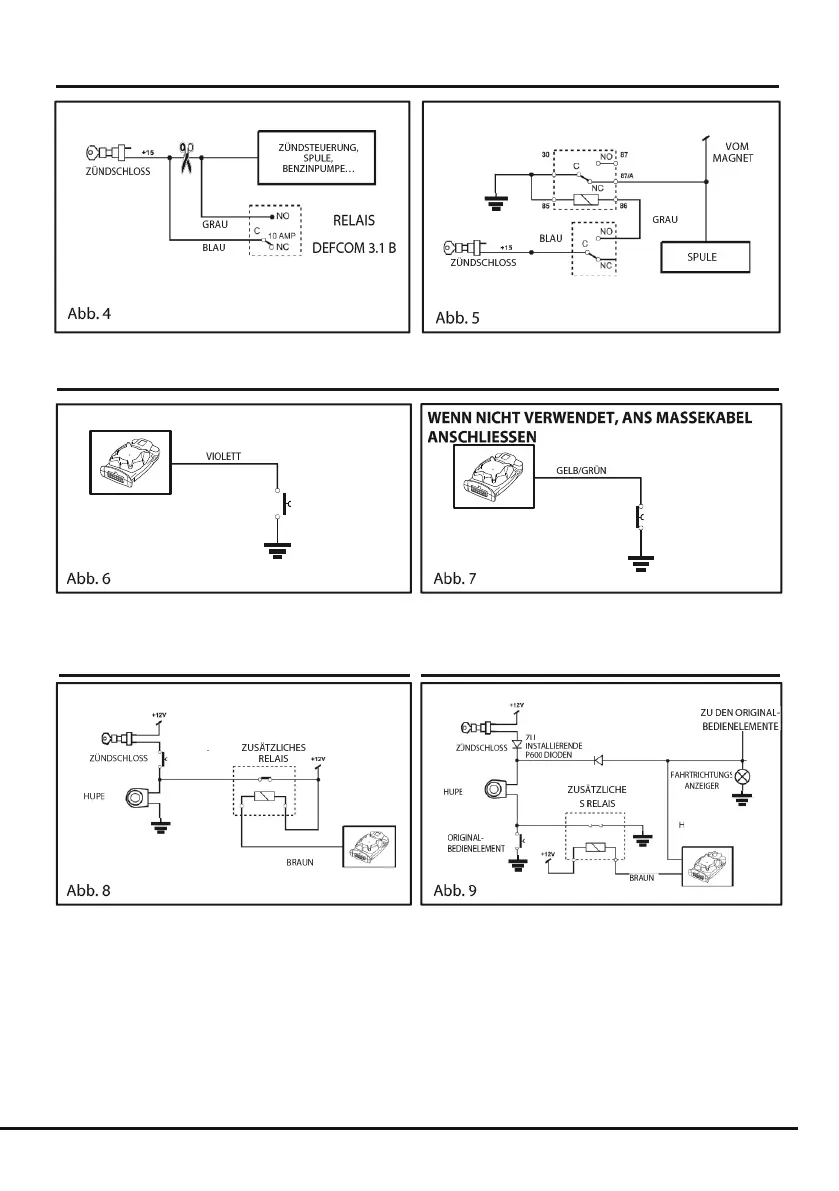

23
Einbauanleitung DEFCOM 3.1B
ZUSÄTZLICHES
RELAIS
4. WEGFAHRSPERRE
STEUERGERÄT
STEUERGERÄT
DEFCOM 3.1 B
RELAIS
5. EXTERNE SENSOREN
externer
SENSOR (NO)
externer
SENSOR (NC)
6. HUPE MIT
NEGATIVER ANSTEUERUNG
7. HUPE MIT
POSITIVER ANSTEUERUNG
ORIGINAL
BEDIEN-
ELEMENT
