ASSEMBLING THE SENSORS
By means of a LED speci cally installed on edge of car windscreen you can have information about the alarm
system status (see the following table).
SIGNALS OF THE CONTROL UNIT VIA THE STATUS LED
ALARM MEMORY:
Once the alarm has been deactivated, some  ashes of the LED tell you if one or more siren
alarms were triggered in your absence. To  nd the cause please refer to the ALARM MEMORIES table in the user
handbook.
Thanks to the volumetric protection system with Eco/Doppler technology and the adjustable sensors, you
can have high performance and excellent immunity
from false alarms. The factory set sensitivity ensures
that all vehicles can be protected thanks to an
automatic system that adapts it to the volume to
protect and, if you want to increase it, it can be done
by the programmer PRG007 (ABS15090) or portable
programmer PDC/CAR ALARM PROGRAMMER
(ABS13750).
To disable the volumetric protection proceed as explained and illustrated below; activate the car’s
+15 panel twice and after the 3 beeps of the control unit lock the car with the original remote
control within the next 20 seconds. The LED will  ash very quickly during the immunity time to indicate that
the alarm is activated with the volumetric protection disabled.
VOLUMETRIC PROTECTION INHIBITION
I f the product is used on a car with heater, it is possible to use the automatic volumetric protection
inhibition which is automatically restored a few minutes after the heater is turned o . For the
connection use the BOOT line with negative active signal (PURPLE wire, Pin 14) and select function
ON with the PRG007 programmer.
(See Page 19 “AUTOMATIC
INHIBITION OF ULTRASONIC
VOLUMETRIC PROTECTION”)
VOLUMETRIC PROTECTION
AUTOMATIC INHIBITION OF THE HEAT

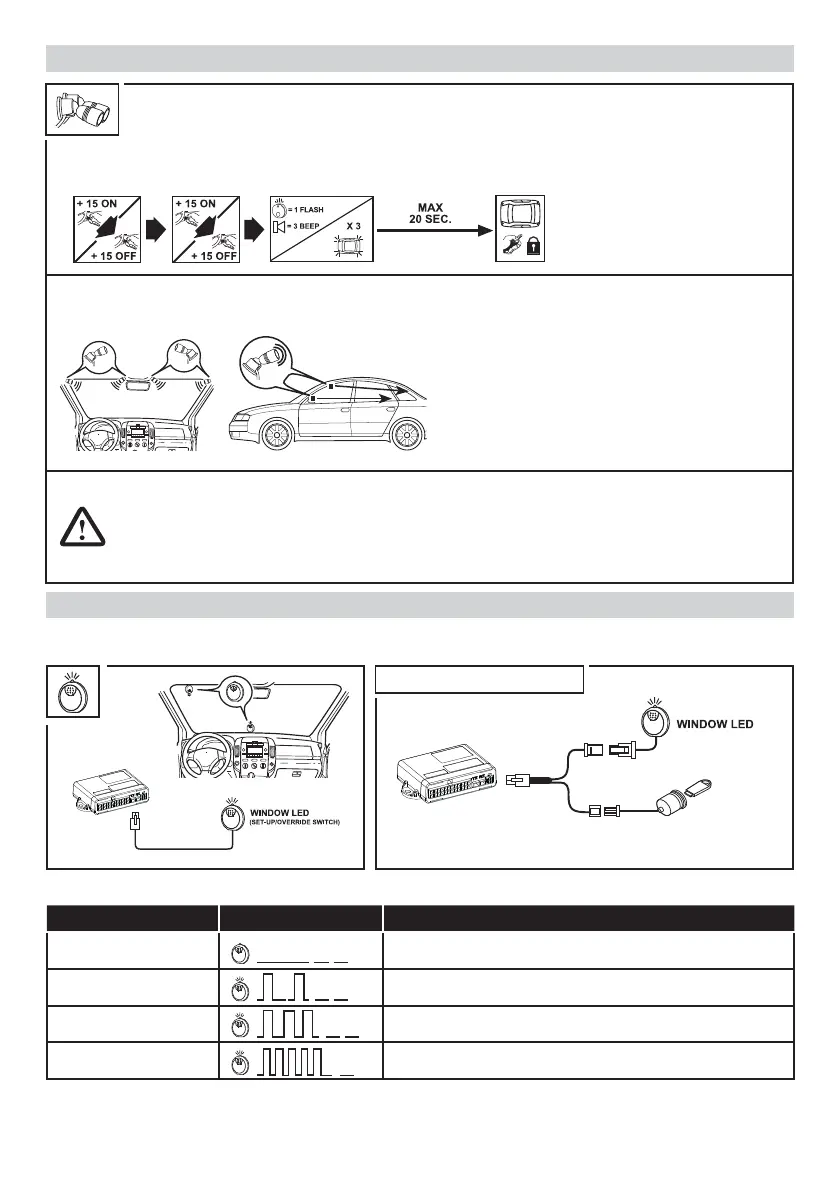

Fig. 9
STATUS LEDS AND RELATIVE INDICATIONS
Fig. 10 Fig. 11
OPT: ABS0499 - ELECTRONIC KEY
LED INDICATION CONTROL UNIT STATION INDICATION
O
Control unit disconnected or deactivated
Slow Flash
Activated and in the surveillance mode
Fast Flash
In the initial immunity period
Very Fast
In the initial immunity period and volumetric protection disabled
TX
TX
RX
RX
RECEPTACLE +
1 ELECTRONIC KEY
