8
English

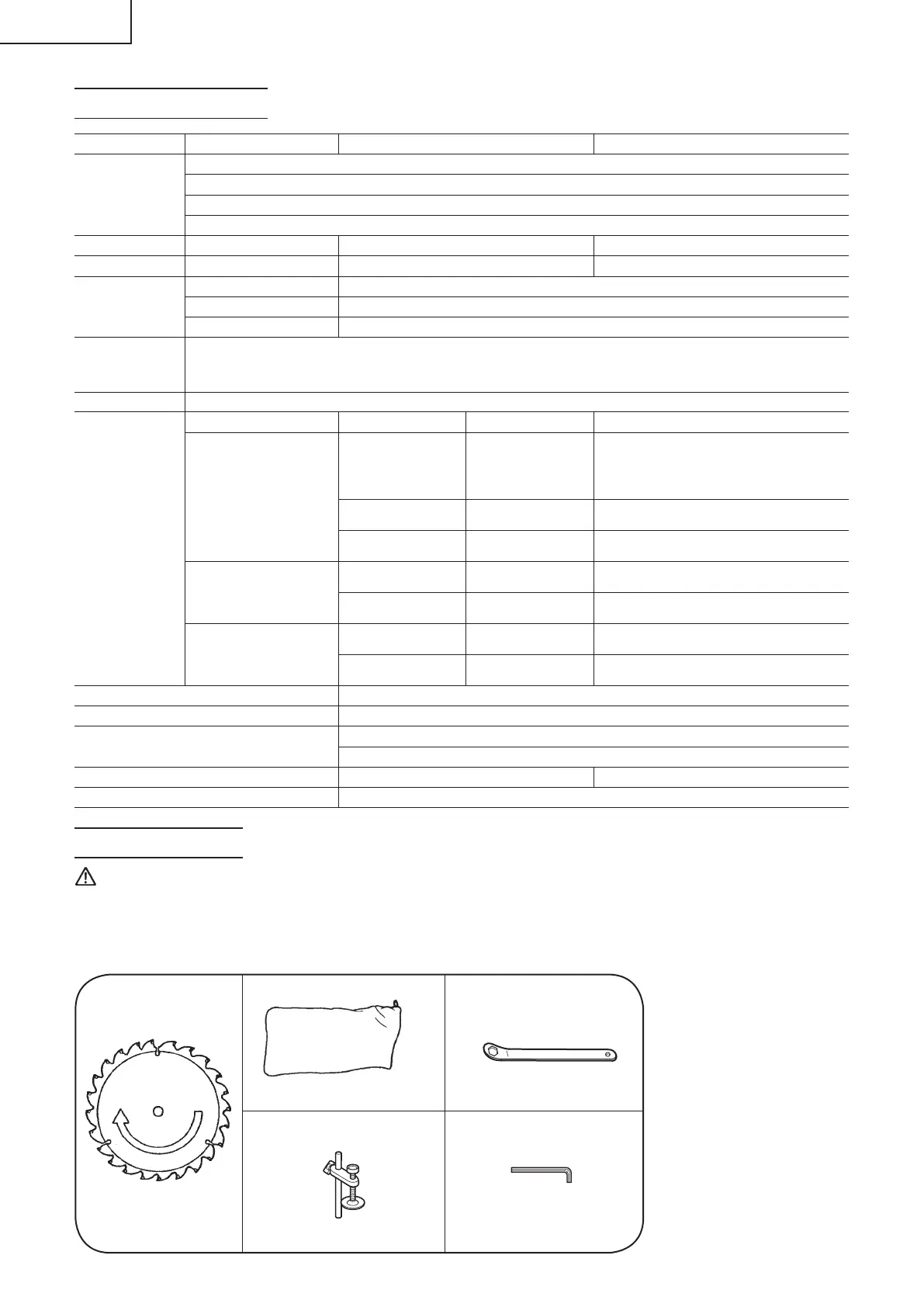

SPECIFICATIONS
Item Model C12LDH C12FDH∙C12FDH(S)
Motor Type Series commutator motor
Power source Single-phase AC 60Hz
Voltage (Volts) 120
Full-load current (Amp) 15
Digital Display Precision ±0.5° Yes No
Laser Marker Yes Yes
Maximum output <1mW CLASS II Laser Product
Wave length 400~700 nm
Laser medium Laser Diode
Applicable
saw blade
Outside Dia. 12″ (305mm)
Hole Dia. 1″ (25.4mm)
Maximum kerf 7/64″ (2.8mm)
No load speed 4300/min
Max.
sawing
dimension
Head Turntable Max. sawing dimension
Miter
00Max. Height2-3/4″ (70mm)
Max. Width 8″ (203mm)
or
Max. Height 3-1/2″ (190mm)
Max. Width 7-1/2″ (101mm)
0 Left Max. Height 2-3/4″ (70mm)
Right
45°
Max. Width 5-1/2″ (140mm)
0 Left Max. Height 2-3/4″ (70mm)
Right
52°
Max. Width 4-3/4″ (120mm)
Bevel
Left 45° 0 Max. Height 1-31/32″ (50mm)
Max. Width 8″ (203mm)
Right 45° 0 Max. Height 1-1/2″ (38mm)
Max. Width 7-1/2″ (190mm)
Compound
Left 45° Left 45° Max. Height 1-31/32″ (50mm)
Right 31° Max. Width 5-1/2″ (140mm)
Right 45° Left Max. Height 1-1/2″ (38mm)
Right
45°
Max. Width 5-1/8″ (130mm)
Miter sawing range Left 0° – 52° Right 0° – 52°
Bevel sawing range Left 0° – 48° Right 0° – 48°
Compound sawing range Left (Bevel) 0° – 45°, Left (Miter) 0° – 45°, Right (Miter) 0° – 31°
Right (Bevel) 0° – 45°, Left and Right (Miter) 0° – 45°
Net weight 47.4 lbs. (21.5 kg) 46.3 lbs. (21.0 kg)
Cord 2 Conductor type cable 6.7 ft. (2.0m)
ACCESSORIES
WARNING: Accessories for this power tool are mentioned in this Instruction Manual.
The use of any other attachment or accessory can be dangerous and could cause injury
or mechanical damage.
STANDARD ACCESSORIES
2
Dust bag (1 piece)
1
12″ (305mm) TCT Saw
blade (1 piece) (For wood)
For how to use, refer to page 22.
4
17mm Wrench (1 piece)
(No. of teeth 32 Code No. 323522)
3
Vise Assembly w/knob bolt
(1 piece)
For how to use, refer to page 16.
5
4mm Hex. bar wrench
For how to use, refer to page 14.
Fig. 3
