Metabo HPT C 12LDH User Manual

9
English
OPTIONAL ACCESSORIES...sold separately
1 Extension Holder and Stopper (Code No. 323523)
2 Crown molding Vise Ass’y (Code No. 323545) (Include Crown molding Stopper (L))
3 Crown molding Stopper (L) (Code No. 323546)
4 Crown molding Stopper (R) (Code No. 323547)
NOTE: Accessories are subject to change without any obligation on the part of the metabo HPT.
APPLICATIONS
Wood and aluminum sash.
PREPARATION BEFORE OPERATION
Make the following preparations before operating the power tool:
1. Remove all packing materials attached or connected to the tool before attempting to operate
it.

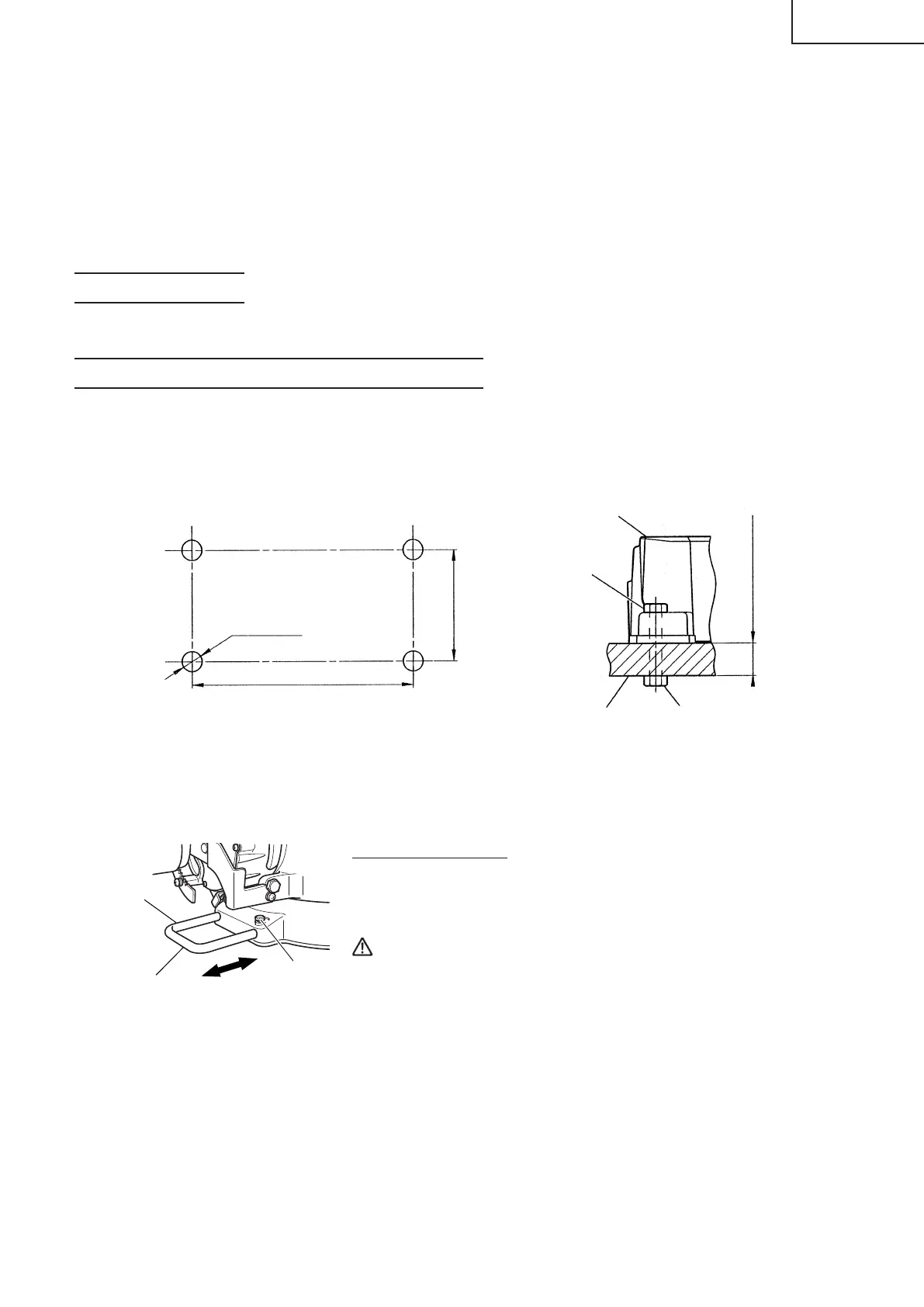

2. Installation
11/32” (9mm)
4 Holes
22-3/4” (578mm)
12-19/32”(320mm)
5/16" (8mm) bolt
Base
Work bench
5/16” (8mm) nut
1” (25mm) Thick bench
Attach the power tool to a level, horizontal work bench in accordance with Fig. 4.
Select 5/16″ (8mm) diameter bolts suitable in length for the thickness of the work bench.
Bolt length should be at least 1-3/8" (35mm) plus the thickness of the work bench.
For example, use 2-11/32" (60mm) or larger bolts for a 1" (25mm) thick work bench.
The holder attached to the rear of the base helps stabilize the power tool.
Holder (B) adjustment:
Loosen the 6mm bolt with the supplied 10mm box wrench.
Adjust the holder (B) until its bottom surface contacts the work bench
surface.
After adjustment, fi rmly tighten the 6mm bolt.
CAUTION: Attach the power tool to a work bench with bolts
(6mm), and if the turntable has been swiveled 45°
degrees or more, be careful not to let the hand that
is holding the side handle get caught between the
side handle and heads of bolts (6mm). Injuries
could result.
Fig. 5
Move
Adjust the holder
until its bottom
surface contacts the
work bench surface.
Holder (B)
6mm bolt
00BookC12LDHUS.indb900BookC12LDHUS.indb9 2018/11/3016:55:532018/11/3016:55:53
