meteo – SP89 Manual
Part C –Exterior
C1:
Hanging hole C2: Battery compartment
C3: USB charging socket C4:
Power supply socket
C5:
Support frame

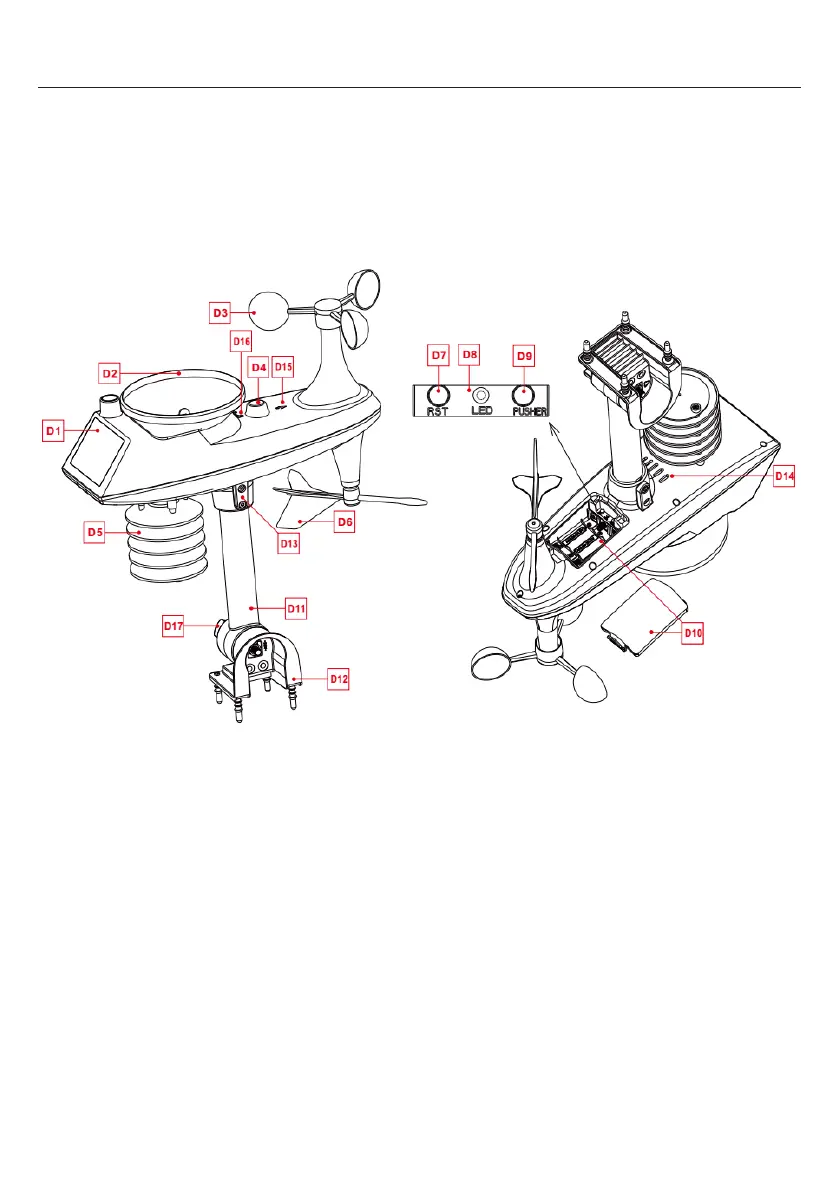

Multi-combination Wireless Remote Sensor Appearance
Part D –Exterior
D1: Solar panel
D2: Rain funnel
D3: Wind cups
D4: Bubble level
D5: Temperature | humidity induction box D6: Wind Directional Vane
D7: Reset button D8: LED indicator
D9: Manual transmit signal button
D10:
Battery compartment
D11: Support rod D12: Fixed base
D13: Socket head cap screws
D14: Drain vents For rain sensor
D15: North direction mark D16: Rain funnel rotation mark
D17: Large nut for fixing the support rod and the base
Temperature | Humidity Wireless Remote Sensor Appearance
