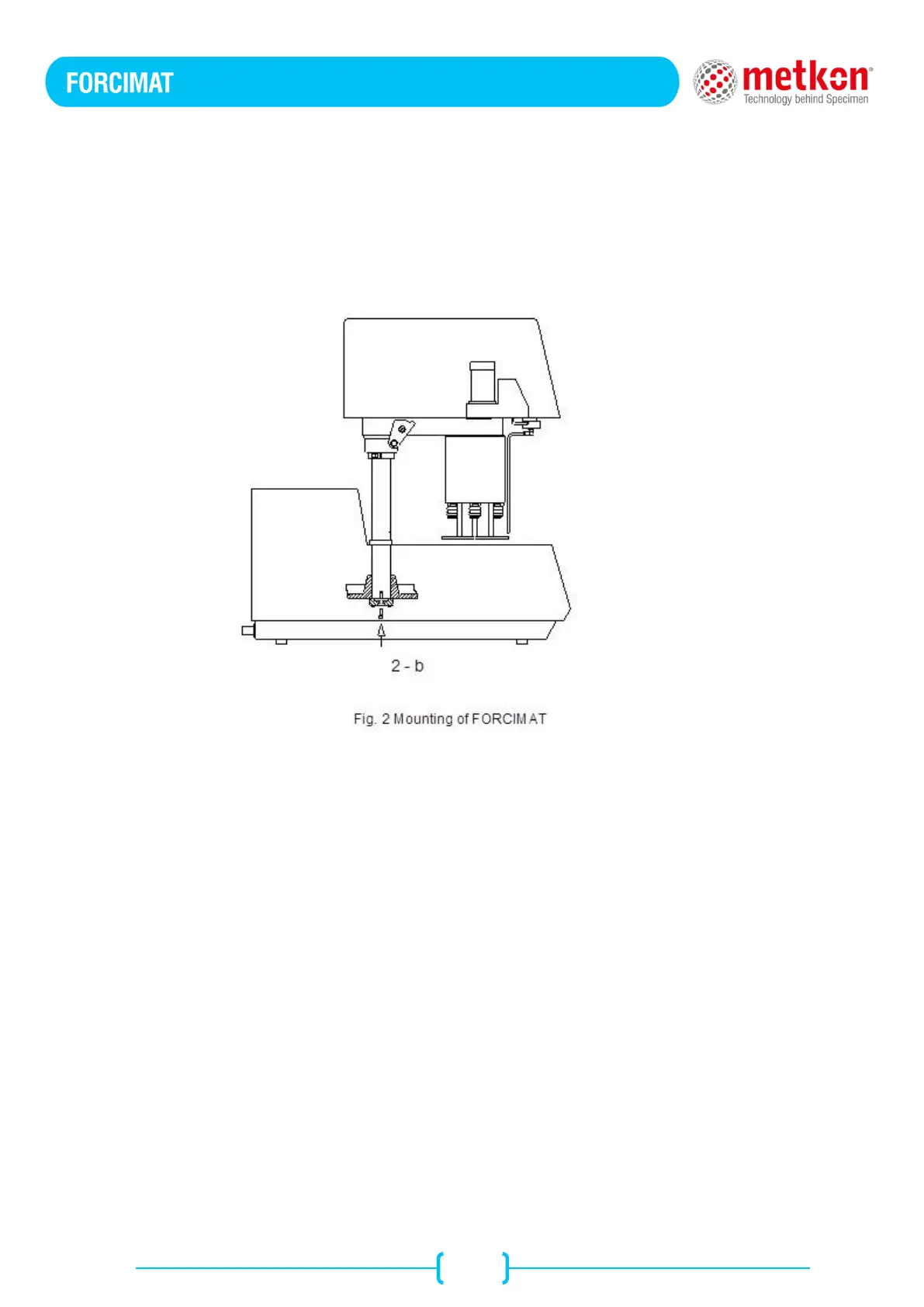

2.1 Mounting of Automatic Head
FORCIMAT Automatic Specimen Mover is used in combination with FORCIPOL Grinder and Polishers.
Please follow up the following steps to combine FORCIMAT to FORCIPOL’s.
1. Pull off the plastic plug on the surface of FORCIPOL.
2. Place FORCIMAT with its column in the FORCIPOL and fix it from the bottom with the M8
screw. Be sure that the screw is tighten correctly.
2.2 Connections
FORCIMAT requires air supply with 6 bars pressure.
A compressor which can generate more than 6 bars and has 50 liters capacity is enough for only
1 equipment. If you have more equipment that use air supply, please consult your local
compressor dealer to choose correct compressor.
If there is a doubt about the quality and pressure of the air supply, make certain that a filtering
and regulator unit for compressed air is connected to the air line before FORCIMAT.
METKON can supply GR 0440 Air Filtering and Lubricating Unit which regulates air pressure to 6
bars.
