95-1003 DASH DISASSEMBLY
SPORTAGE 2001-2003
Unclip and remove climate con-
trol/vent trim panel.

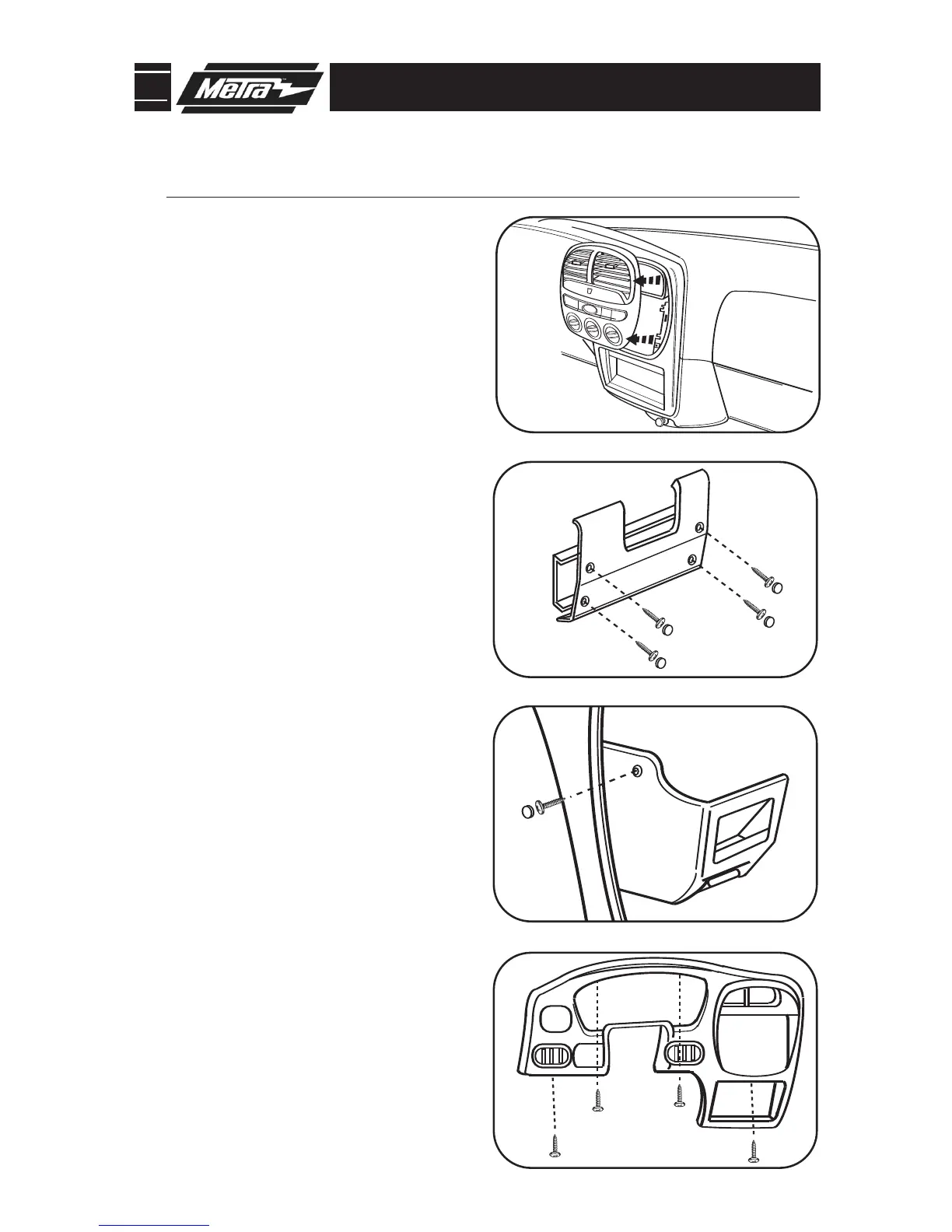

(Figure A)
2
Remove screw covers from trim
panel below steering column and
remove screws from behind cov-
ers. Lower the trim panel (it is not
necessary to remove the panel).
(Figure B)
3
Remove (3) Phillips head screws
from bottom of steering column
housing and remove both upper
and lower sections of housing.
4
Remove (1) Phillips head screw
from outside left edge of dash and
(2) Phillips head screws from near
hood release.
(Figure C)
5
Loosen nut behind hood release
and remove lower left side dash
trim.
(Figure C)
6
Remove (4) Phillips head screws
from instrument trim panel and
remove panel.
(Figure D)
7
Remove (4) Phillips head screws
securing the radio. Unplug and
remove the radio.
8
Continue to kit assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
