Kit Assembly
ISO DIN radio provision with pocket
1. Remove the metal DIN sleeve and trim ring from
the aftermarket radio.

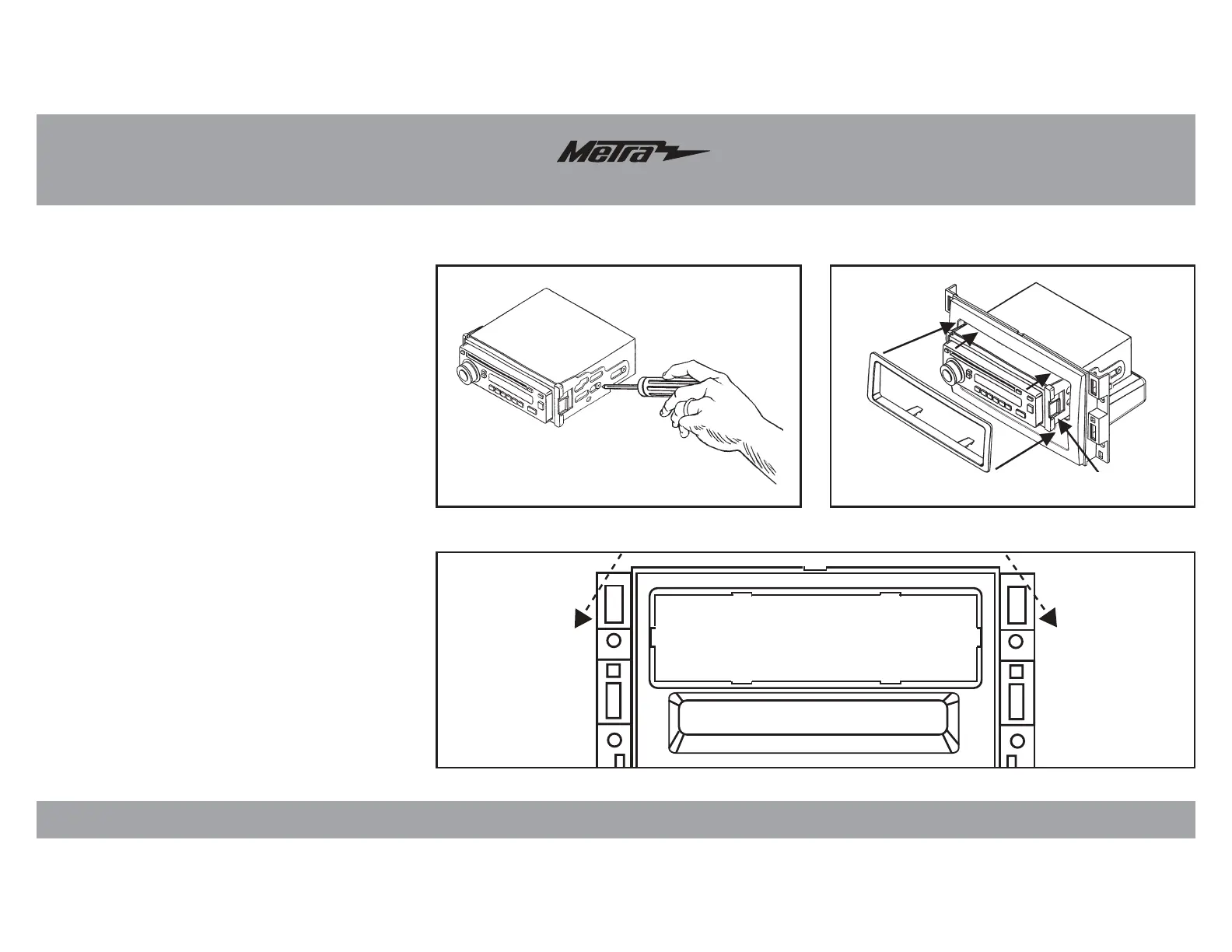

2. Secure the ISO DIN radio brackets to the radio with
the screws supplied with the radio. (Figure A)
3. Slide the radio into the radio housing until the side
clips engage. (Figure B)
4. Snap the ISO DIN trim plate into the radio housing.
(Figure B)
5. Locate the factory wiring harness and antenna
connector in the dash and complete all necessary
connections to the radio. Metra recommends using
the proper mating adapter from Metra or AXXESS.
Test the radio for proper operation.
6. Reassemble the dash in reverse order of
disassembly.
Suzuki XL-7 only: Trim the top corners of the
radio housing. (Figure C)
