Metra Electronics 95-8204 Kit - Dash Disassembly; Toyota Corolla 2003-2008 Disassembly Procedure

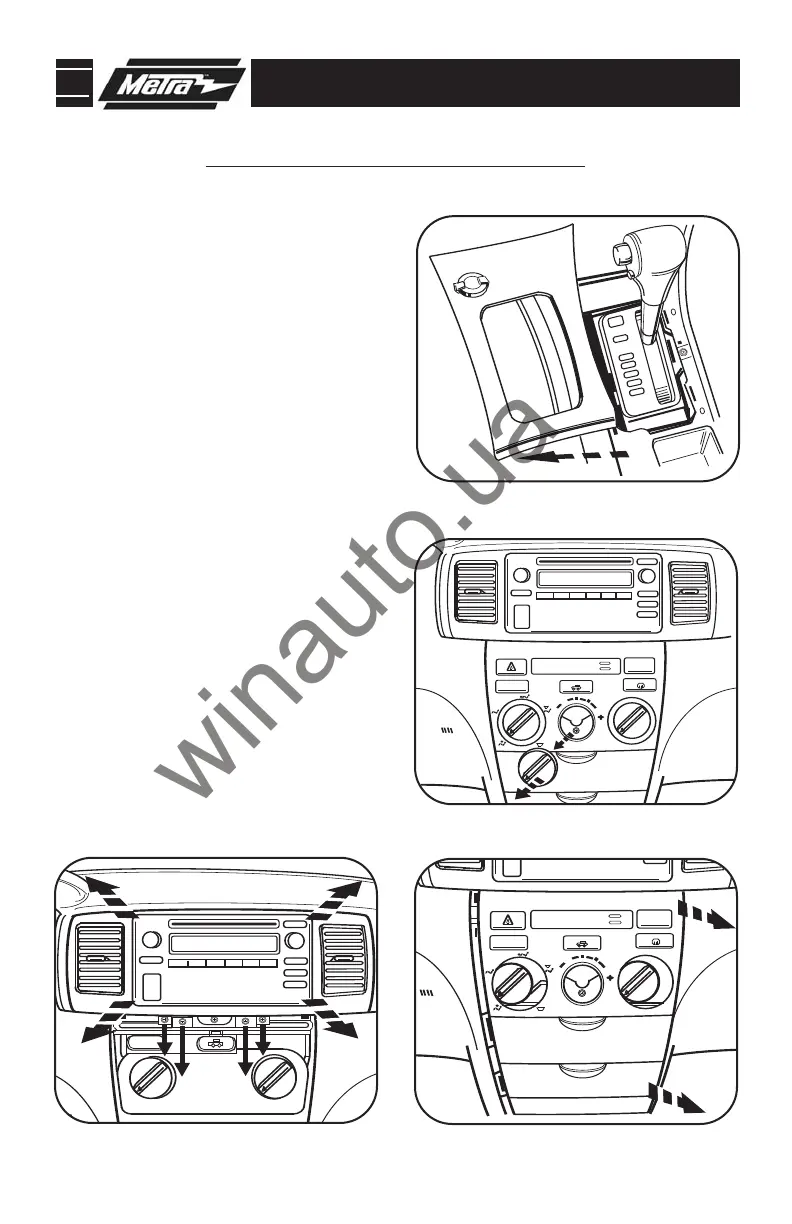

95-8204 DASH DISASSEMBLY
TOYOTA COROLLA 2003-2008
A
B
1
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Unclip and remove the gear shifter
trim panel. (Figure A)
2
Remove the center a/c knob and (1)
Phillips screw exposed behind it.
(Figure B)
3
Unclip and remove the a/c-pocket
assembly. (Figure C)
4
Remove (4) 10 MM bolts from the bot-
tom of the radio then unclip and
remove the factory radio and trim
panel together. Unplug radio from fac-
tory harness.
(Figure D)
5
Unclip and remove the radio trim
panel including the a/c vents from the
factory radio.
6
Continue to kit assembly.
PASSENGER
A/C
LO
O
FF
HI
C
PASSENGER
A/C
LO
OFF
HI
D
A/C
P
R
N
D
2
L
