Metra Electronics 99-8151 - ISO DDIN Radio Provision

99-8151
Kit Preparation
ISO DDIN radio provision

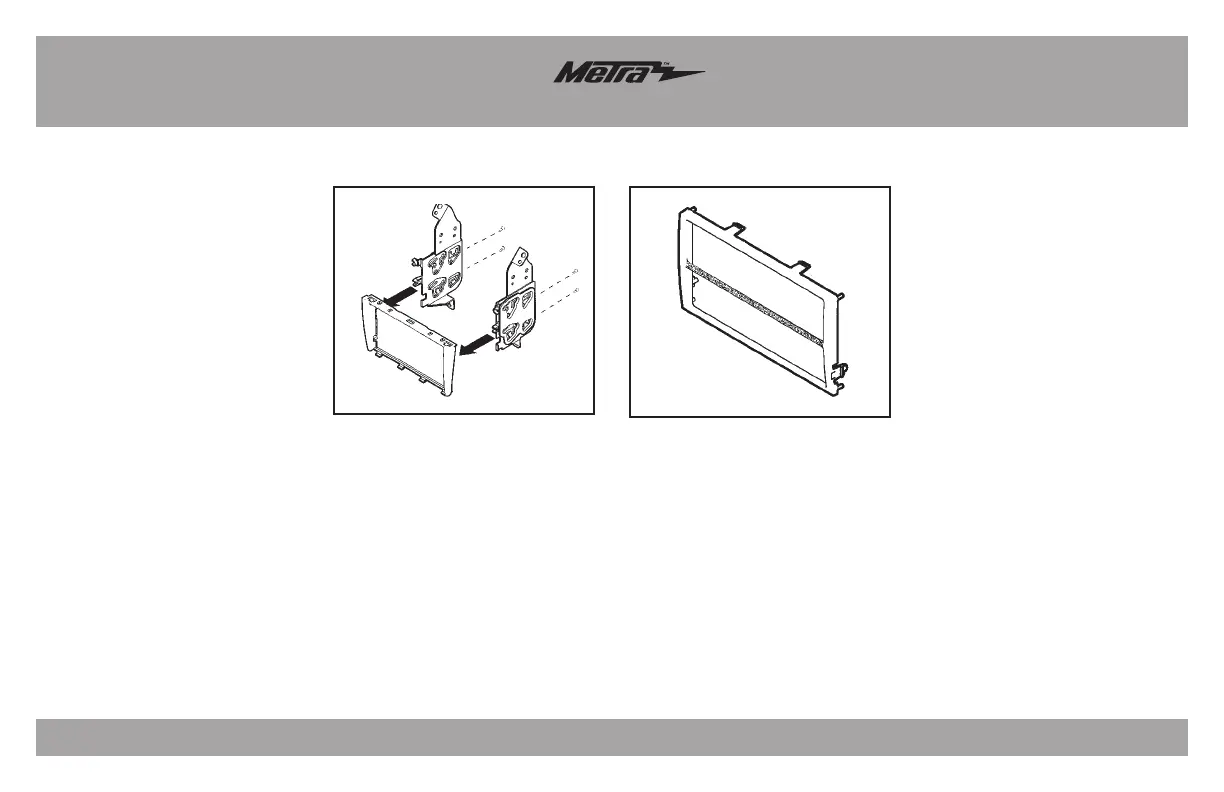

1. Secure the radio brackets to the
radio housing using the supplied
(2) #8 x 3/8” Phillips truss head
screws at the top, and (2) #8 x
3/8” Phillips pan head screws at
the bottom. (Figure A)
2. Carefully using a utility knife, cut
the center bar out of the ISO DDIN
trim plate. (Figure B)
Continue to kit assembly
(Figure A)
4
(Figure B)
