99-8151
Kit Assembly
DIN radio provision with pocket

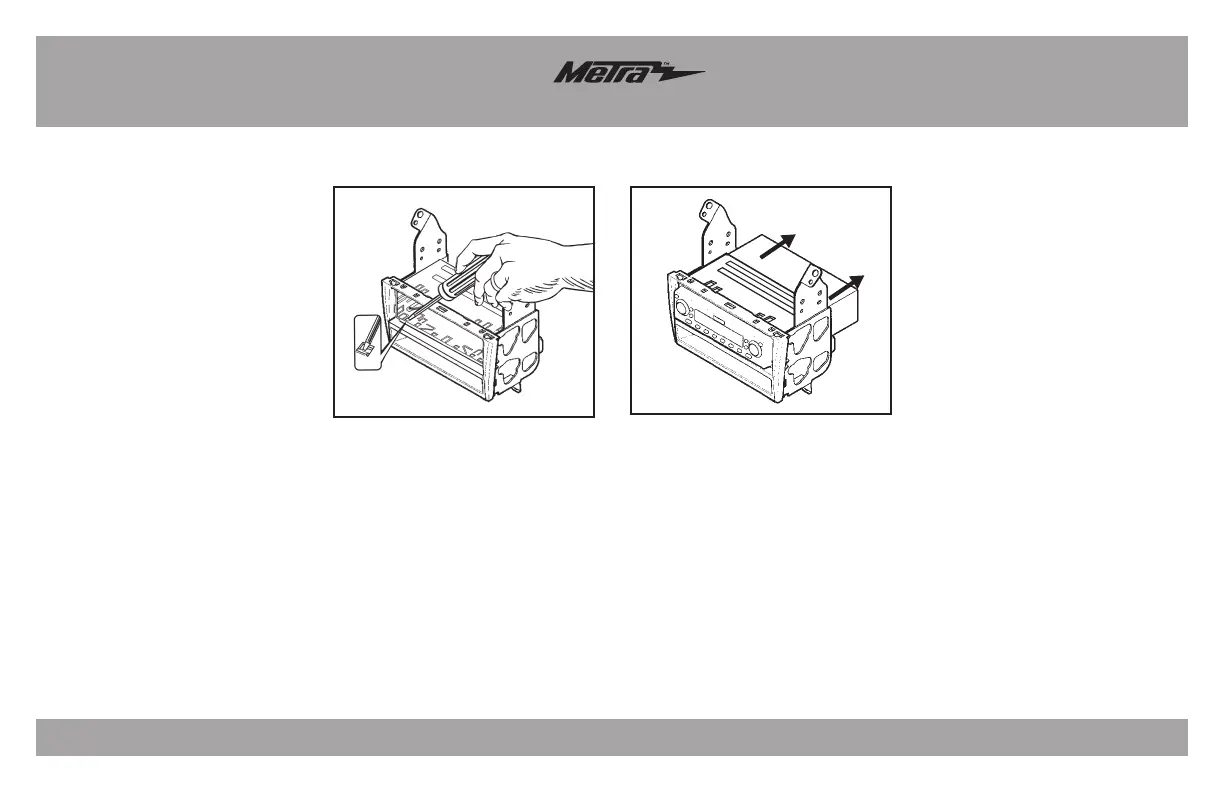

1. Remove the metal DIN sleeve from
the aftermarket radio.
2. Slide the sleeve into the radio
housing assembly and secure by
bending the metal locking tabs
down. (Figure A)
3. Slide the radio back into the sleeve
until it clicks in. (Figure B)
4. Locate the factory wiring
harness and antenna connector
in the dash and complete all
necessary connections to the
radio and climate controls. Metra
recommends using the proper
mating adapter from Metra or
AXXESS. Re-connect the negative
battery terminal and test the radio
for proper operation.
5. Reassemble the dash in reverse
order of disassembly.
(Figure A)
(Figure B)
5
