Metra Electronics 99-8724B - Kit Assembly; ISO DIN Radio Provision with Pocket; ISO DDIN Radio Provision

REV. 8/27/2018 INST99-8724B
3
(Figure A)
(Figure B)
(Figure C)

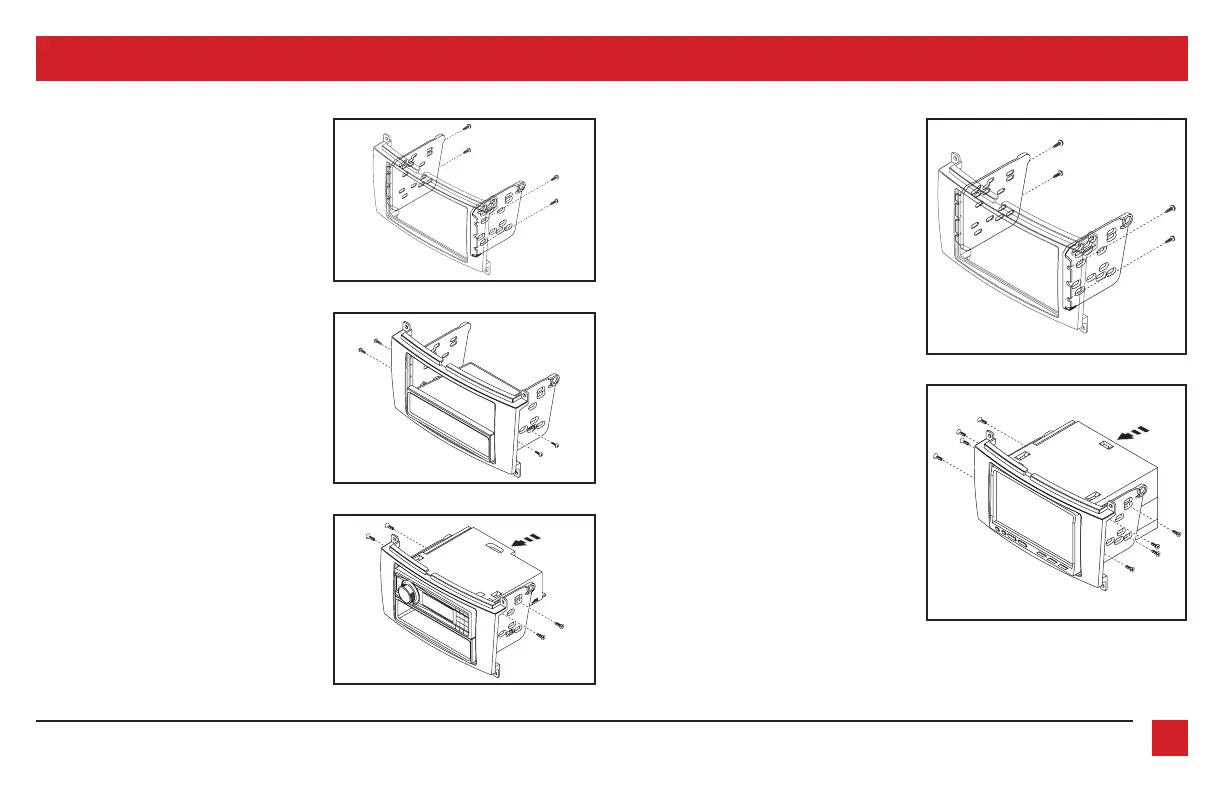

KIT ASSEMBLY
(Figure B)
(Figure A)
ISO DIN radio provision with pocket
1. Attach the radio brackets to the radio
trim panel using (4) #8 x 3/8” Phillips
screws supplied. (Figure A)
2. Attach the pocket to the bracket
assembly using the (4) #8 x 3/8” Phillips
screws. (Figure B)
3. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
4. Slide the radio into the completed
assembly, and then secure it using
screws supplied with the radio.
(Figure C)
5. Locate the factory wiring harness and
antenna connector in the dash, and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra and/
or AXXESS. Test the radio for proper
operation.
6. Reassemble the dash in reverse order of
disassembly.
ISO DDIN radio provision
1. Attach the radio brackets to the radio
trim panel using (4) #8 x 3/8” Phillips
screws supplied. (Figure A)
2. Slide the radio into the completed
assembly, and then secure it using
screws supplied with the radio.
(Figure B)
3. Locate the factory wiring harness and
antenna connector in the dash, and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra and/
or AXXESS. Test the radio for proper
operation.
4. Reassemble the dash in reverse order
of disassembly.
