Metra Electronics 99-9501B - DDIN Head Unit Provision

99-9501 KIT ASSEMBLY
A
B
8
Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
1

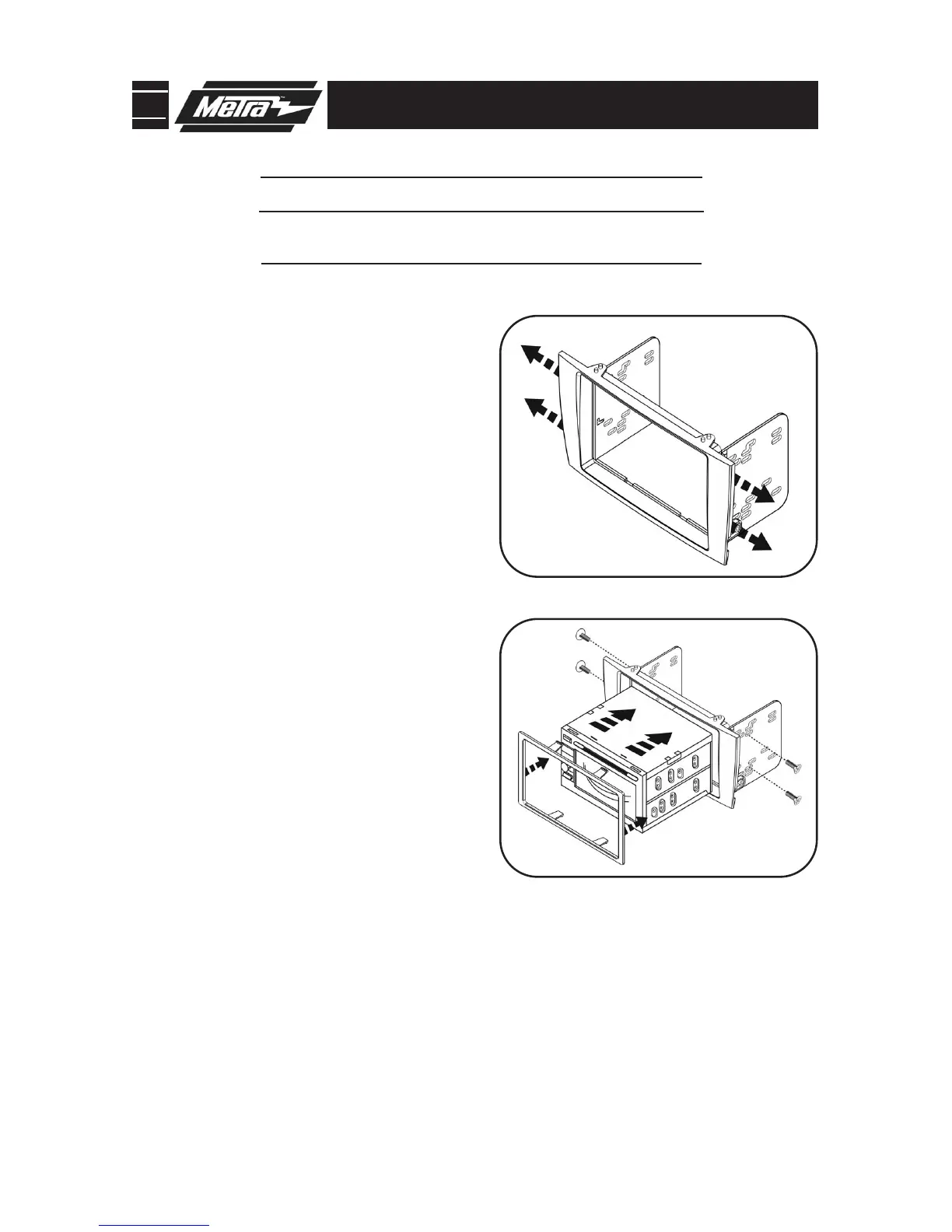

Snap the Double DIN brackets to the
inside edge of the Radio Housing.
(Figure A)
2
Slide the Double DIN head unit or
stacked ISO head units into the
bracket/radio housing assembly and
secure the Double DIN head unit or
stacked ISO head units to the assem-
bly using the screws supplied with
the radio. (Figure B)
3
Snap the double DIN trim plate into
the radio housing. (Figure B)
4
Attach the radio housing to the cli-
mate control bracket assembly and
screw the bottom together with the
two supplied Phillips screws
5
Reassemble dash in reverse order of
disassembly.
6
JAGUAR S-TYPE 2003-2008
JAGUAR X-TYPE 2002-2008
DDIN HEAD UNIT PROVISION
