Metra Electronics 99-9501B - DIN Head Unit Provision

99-9501 KIT ASSEMBLY
A
B
C
6
Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.

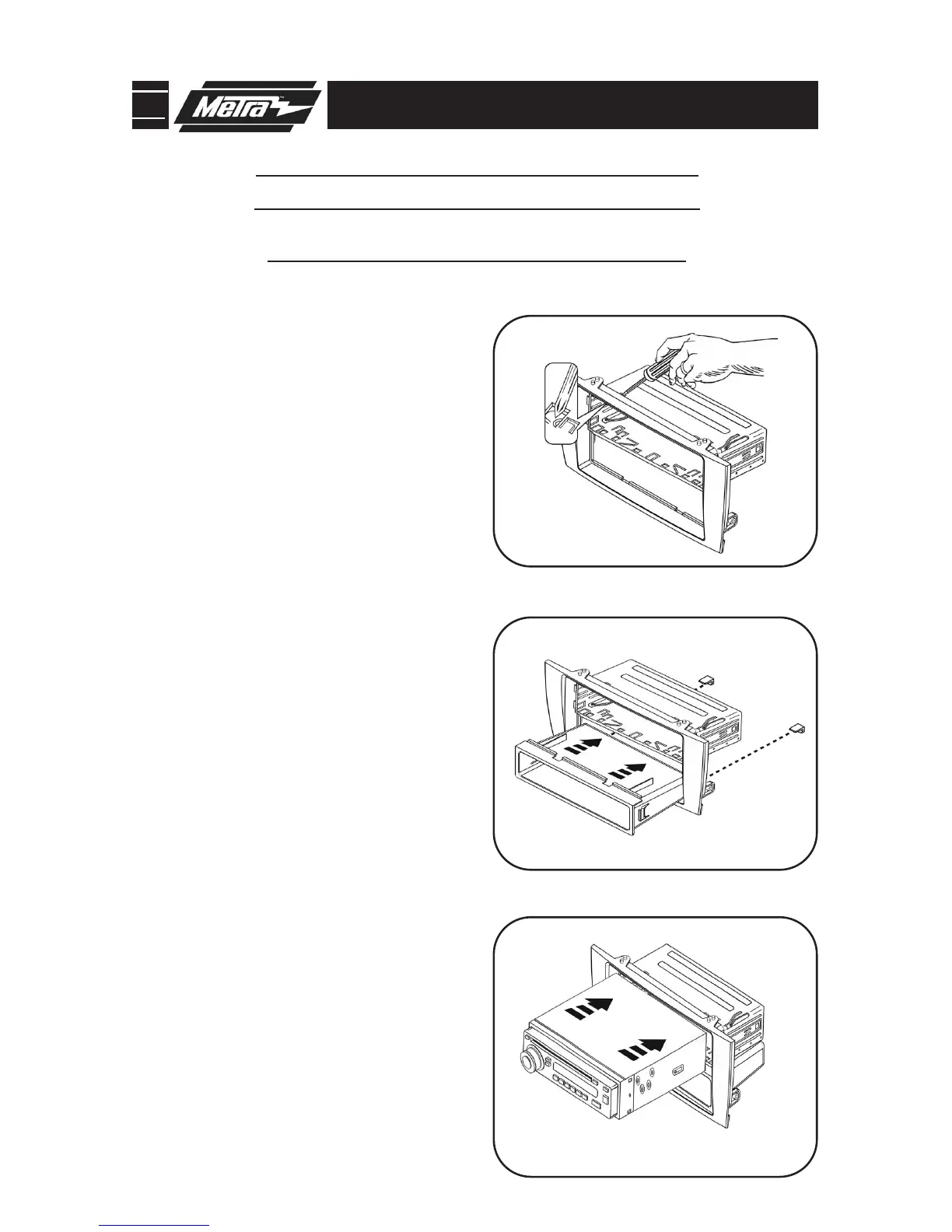

1
Slide the DIN cage into the Radio
Housing and secure by bending the
metal locking tabs down. (Figure A)
2
Snap the pocket into the bottom
opening of the radio housing.
(Figure B)
3
Secure the pocket by inserting the c-
clips into the opening between the
pocket and the bottom of the radio
housing. (Figure B)
4
Slide the aftermarket head unit into
the cage and secure. (Figure C)
5
Attach the radio housing to the cli-
mate control bracket assembly and
screw the bottom together with the
two supplied Phillips screws.
6
Reassemble dash in reverse order of
disassembly.
7
JAGUAR S-TYPE 2003-2008
JAGUAR X-TYPE 2002-2008
DIN HEAD UNIT PROVISION
