MI 3200 TeraOhm 10 kV Instrument Description
7

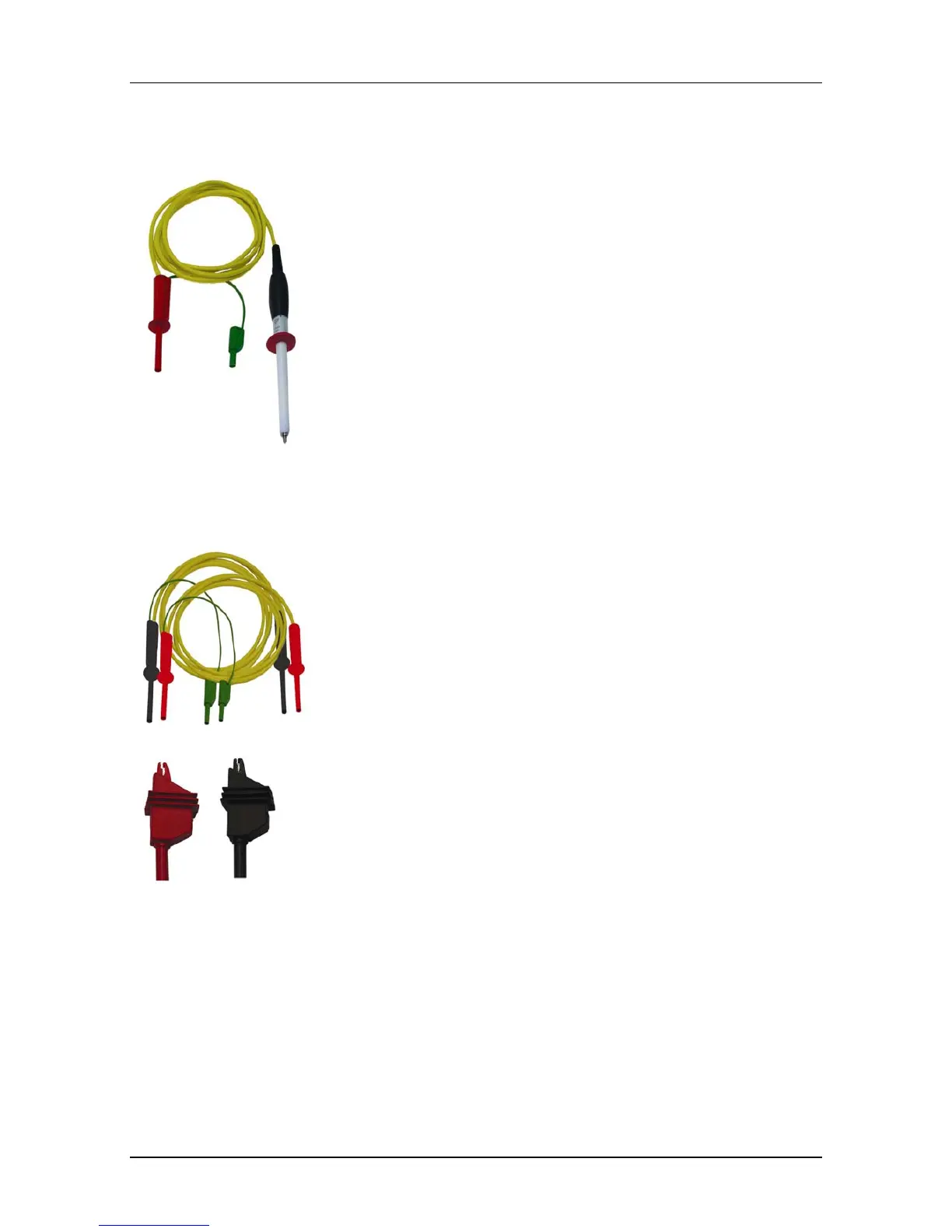

2.4.1. High voltage shielded test lead with High voltage tip
Application notes:
This test lead is designed for hand held testing of insulation.
Insulation ratings:
- High voltage tip (red): 10kV d.c (double insulation);
- High voltage banana connector (red): 5 kV d.c (double
insulation), 10 kV d.c. (basic insulation);
- Guard banana connector (green): 600V CAT IV (double
insulation);
- Cable (yellow): 12kV (shielded).
2.4.2. High voltage shielded test leads with High voltage alligator clips.
Application notes:
These test leads is designed for diagnostic testing of
insulation.
Insulation ratings:
- High voltage banana connector (red, black): 5kV d.c
(double insulation), 10 kV d.c. (basic insulation);
- Alligator clibs (red, black): 5kV d.c (double insulation),
10 kV d.c. (basic insulation);
- Guard banana connector (green): 600V CAT IV (double
insulation);
- Cable (yellow): 12kV (shielded).
2.4.3. Guard test lead with alligator clib
Insulation ratings:
- Guard test lead with banana connectors (green): 600V CAT IV (double insulation);
- Alligator (green): 600V CAT IV (double insulation).
