Line Tracer
7
Capacitive Slide switch
CAP
- traced object is normally voltage free
- transmitter has its internal source activated
- object acts as electrical field radiator
External Rear connector
- for additional accessories like current clamp, electric
probe tip and selective sensor
- keep maximum distance to traced object in order to
avoid interference of received signals through sensor
head
Sound
opening
Low bat.
indicator
Inductive / Capacitive
switch
LED bargraph
Power ON
LED indicator
Potentiometer
for fine adjustment
ON / GAIN keys
Input conector
(probe, current
clamp)
Sensitive
area
Safety barrier

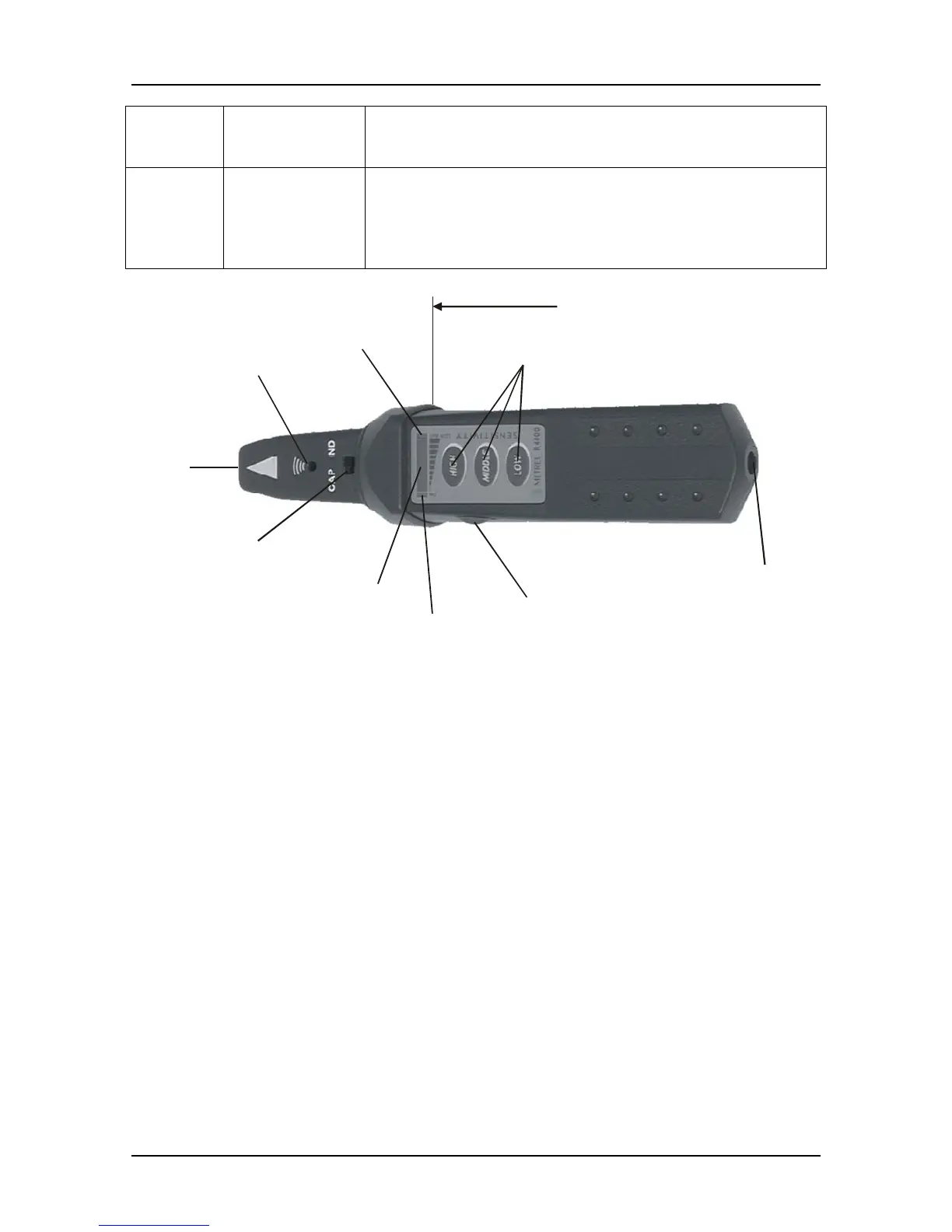

Fig. 2. Receiver R10K
You can choose between three sensitivities (low, middle and high). An extra
potentiometer is added for fine sensitivity adjustment. A buzzer sound and 10-level LED
bar graph indicator suffice to indicate the location of the traced object.
Notes:
Always select sensitivity that is optimal for individual tracing. The sensitivity can be
changed during tracing.
Do not connect imput connector to hazardous alive voltage
The receiver R10K is supplied by a 9V alkaline battery (IEC 6LR61).
