METREL T10K - Determining Individual Wires, Fuses etc.

Line Tracer
19
3.3. Determining Individual Wires, Fuses etc.
Using Special Test Tip
A 1067
LINES: unactive or DC powere
d
Receiv er R10K
switched in
capacitive mode
Transmitter T10K
is automatically
in generator mode

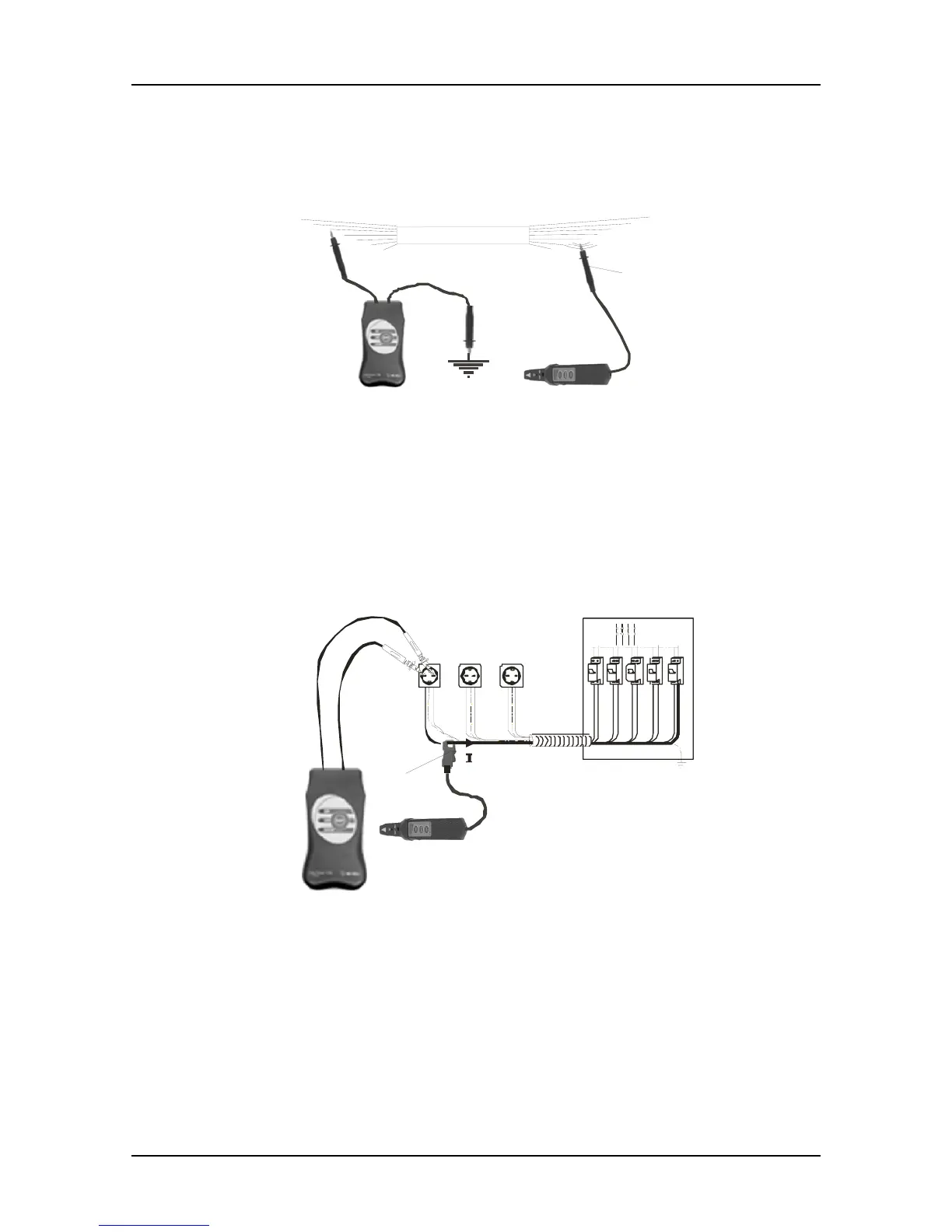

Fig. 16. Determination of individual wire
The Test Tip connected to the receiver is used for determining an individual wire. The
lowest gain is recommended for this kind of application (LOW gain)
Using Special Current Clamp
A 1069
ON
Transmitter T10K
is automatically
in load mode
Fig. 17. Determination of the belonging fuse by using current clamp
Current clamp can be used to exactly determine an individual wire or belonging fuse. It
is recommended to use the lowest gain for this purpose (LOW gain).
