Chapter II
Digital Earth Tester
31
2.2. Power supply
The equipment is supplied by power:
x either from a rechargeable accumulator pack, CA model ref.
HX0086,
x or from 2 alkaline batteries.
2.2.1. Supply via an accumulator pack (reminder:
CA model ref. HX0086)
2.2.1. General
Accumulator pack
Specifications
8.4V Ni-MH - 750 mAh
Location
Housed in the back of the equipment (instead of the two 9 V
batteries)
Connections
to the connector, in the housing
Recharging
The symbol "BAT" will appear if voltage is too low. The
accumulator pack must then be recharged (see paragraph
2.2.1.3.).
It is recommended to wait until the complete discharge of the
accumulator pack to prevent the early aging of the accumulator
pack.
Procedure
1. Disconnect the test leads for the measuring circuits and
input.
2. Set the switch to "O".

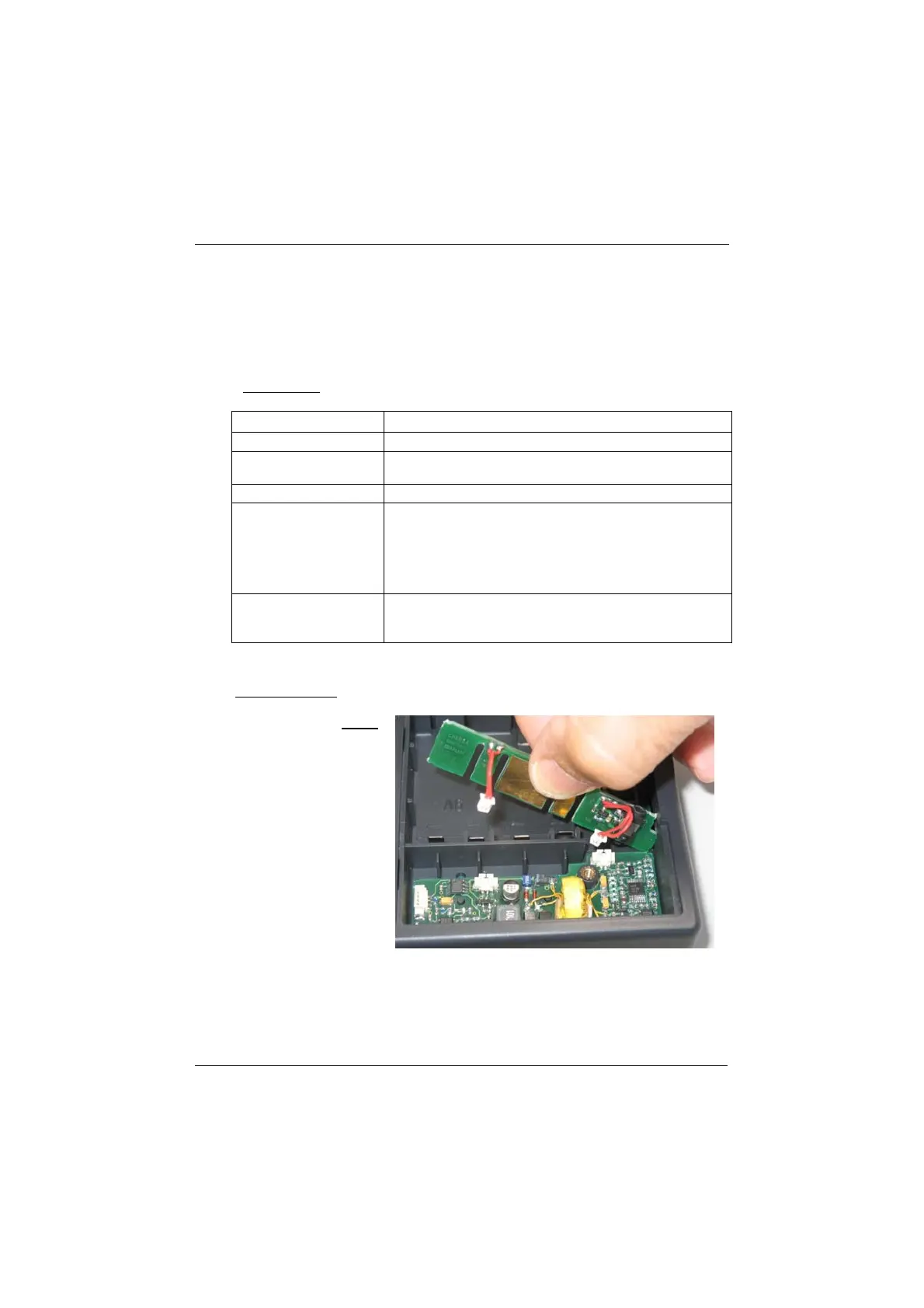

2.2.1.2. Installation
Step 1
Fit the connection bar in
place, starting with the
right side.
