METRON MP430 Series - System Logs Management; Log Overview; Scrolling Through Logs

Page 13 of 25
SYSTEM LOGS: The Model MP Electric controller has three separate data logs; 1) alarm log, 2) event log, and 3) pressure log.
The alarm log is a subset of the event log and only displays the last ten alarms that have occurred or cleared. The event log
records all alarm and system function type events
SYSTEM LOGS
1) Alarm Log
2) Event Log
3) Pressure Log

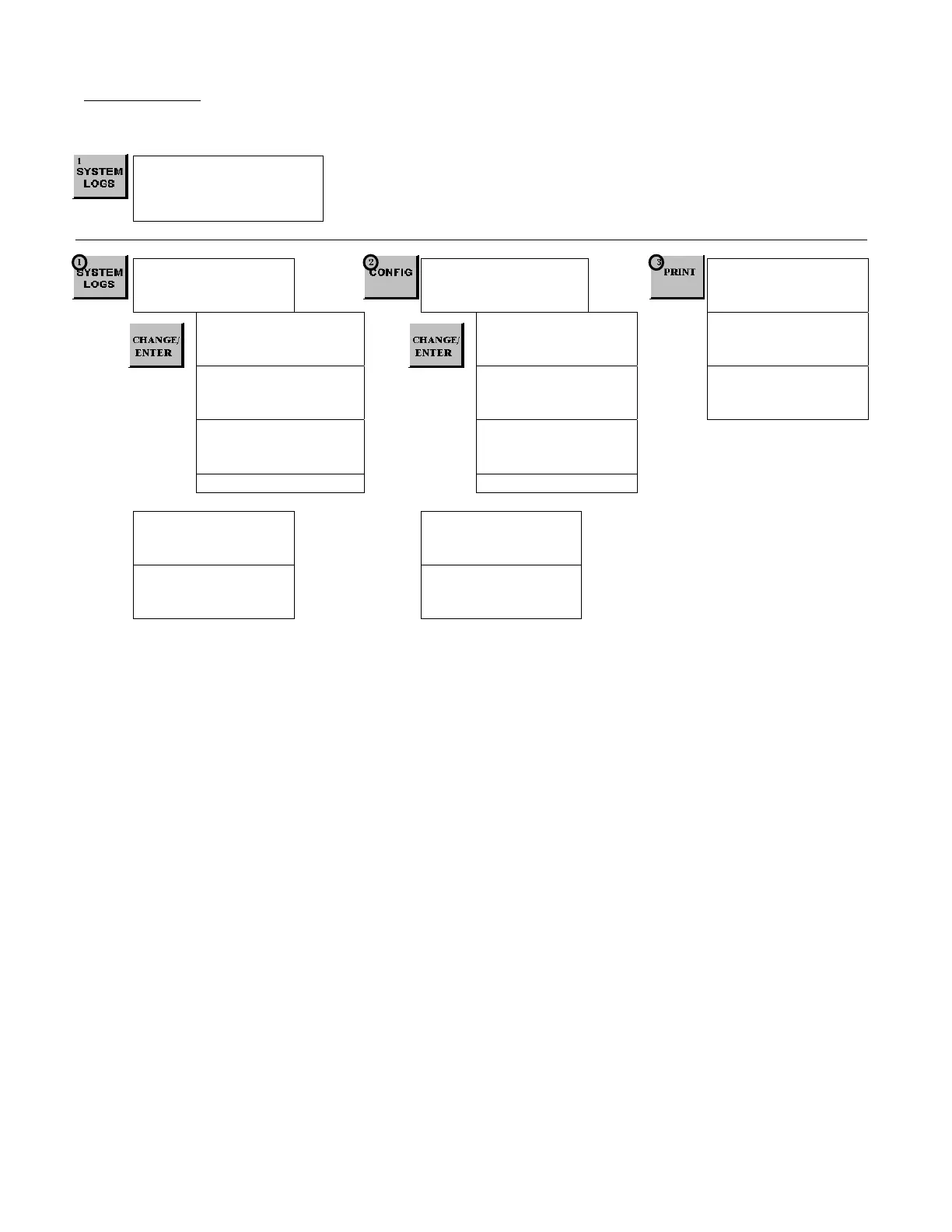

SYSTEM LOGS: The [UP] and [DOWN] arrow buttons can be used to scroll through the
three data logs. The [CHANGE/ENTER] button enters and exits the alarm/event details in
either the Alarm or Event logs. In the Pressure Log the [CHANGE/ENTER] button changes
the skip rate used to scroll through the logged pressure readings.
# 1 ALARM LOG
Pump Failed To
Start Alarm Occurred
10/16/04 07:32:15
# 1 EVENT LOG
System in Off
Mode Occurred
10/16/04 13:15:15
PRESSURE LOG
10/16/04 17:52:45
112 psi
Skip Rate:[EACH ]
# 1 ALARM DETAILS
Pump Failed To
Start Alarm Occurred
10/16/04 07:32:15
# 1 EVENT DETAILS
System in Off
Mode Occurred
10/16/04 13:15:15
PRESSURE LOG
10/16/04 17:52:30
112 psi
Skip Rate:[EACH ]
# 1 ALARM DETAILS
AB V 460 A 32
BC V 461 B 32
AC V 460 C 33
# 1 EVENT DETAILS
AB V 460 A 32
BC V 461 B 32
AC V 460 C 33
PRESSURE LOG
10/16/04 17:52:15
113 psi
Skip Rate:[EACH ]
# 1 ALARM DETAILS
Pump Running: Yes
# 1 EVENT DETAILS
Pump Running: Yes
# 2 ALARM LOG
Superv Power Failure
Alarm Cleared
10/16/04 07:09:48
# 2 EVENT LOG
Pump Failed To
Start Alarm Occurred
10/16/04 07:32:15
# 3 ALARM LOG
Superv Power Failure
Alarm Occurred
10/16/04 06:49:03
# 3 EVENT LOG
Superv Power Failure
Alarm Cleared
10/16/04 07:09:48
