Metso MP800 - Main Frame Seat Liner and Fulcrum Bar; General Information

SECTION 3 - M. FRAME, ADJ. RING, TRAMP REL. & CLRNG JACK ASSY
MP SERIES CONE CRUSHER TECHNICAL REFERENCE MANUAL
3-9

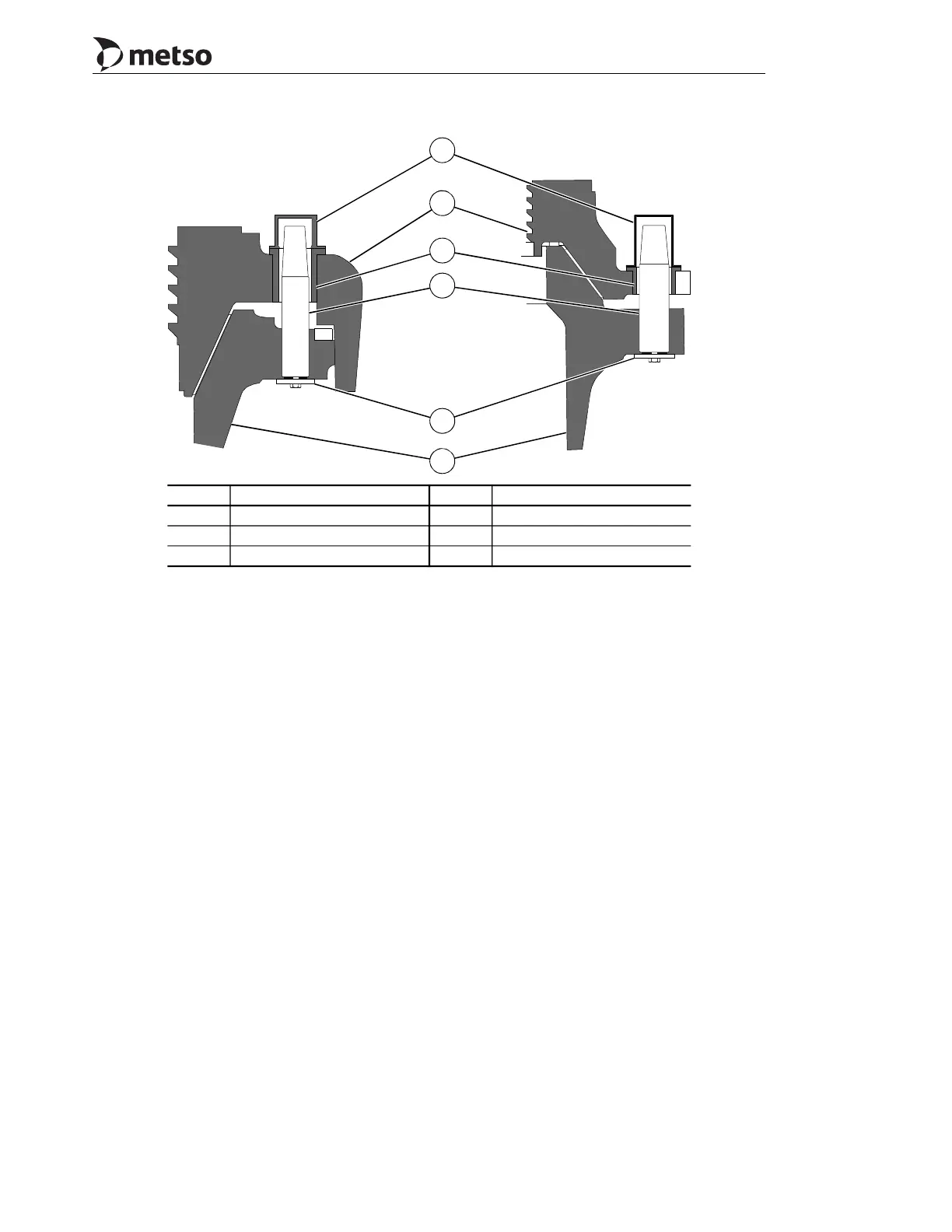

Figure 3-6 Main Frame Pins and Pin Bushings
3.4 Main Frame Seat Liner and Fulcrum Bar
3.4.1 General Information
Periodically, the main frame seat liner and fulcrum
bar should be inspected for wear. Due to
irregularity in feed to a Crusher and the slight
rubbing action between the adjustment ring and
main frame seat liner, there is a certain amount of
wear.
Should there be an excessive amount of adjustment
ring movement, this wear could be increased. Refer
to Figure 3-8.
The fulcrum bar is very important as it permits the
adjustment ring to tilt and recenter properly when
the ring raises due to a piece of tramp iron passing
through the crushing cavity.
Callout Description Callout Description
1 Pin cover 4 Main frame pin
2 Adjustment ring 5 Pin retainer
3 Main frame pin bushing 6 Main frame
MP1000 MP800
1
2
3
4
5
6
