SECTION 4 - COUNTERSHAFT, CTRSHAFT BOX & SHEAVE ASSEMBLIES
4-4
MP SERIES CONE CRUSHER TECHNICAL REFERENCE MANUAL

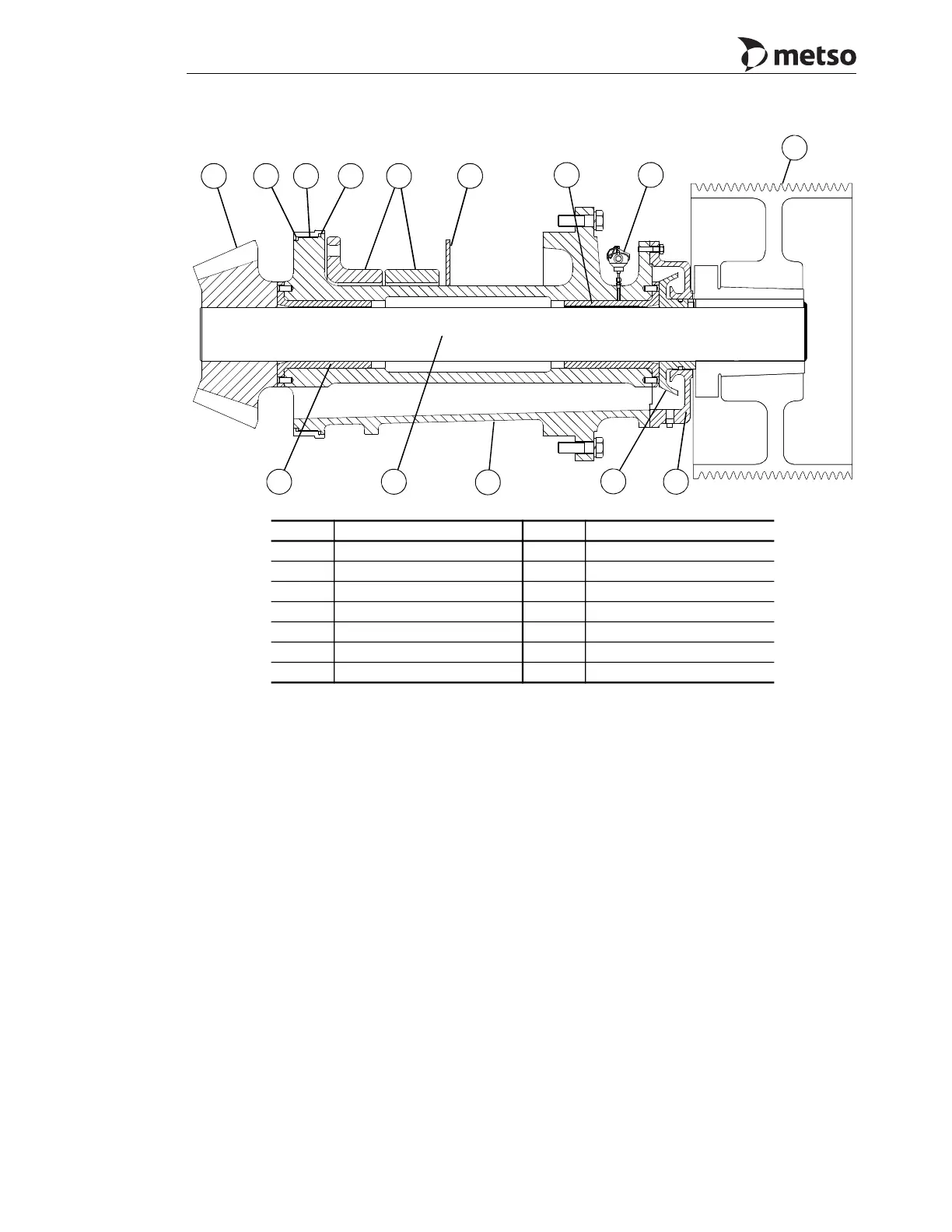

Figure 4-3 Countershaft, Countershaft Box and Sheave Assembly (MP1000)
Callout Description Callout Description
1 Pinion 8 Countershaft
2 Wear ring 9 Countershaft box
3 O-ring 10 Oil flinger
4 Box guards 11 Flinger housing
5 Box shield 12 Rectangular seal
6 Bushing 13 Countershaft bushing RTD
7 Sheave assembly
1 3 2 12 4 5
6 13
7
11
10
9
86
