SECTION 4 - COUNTERSHAFT, CTRSHAFT BOX & SHEAVE ASSEMBLIES
MP SERIES CONE CRUSHER TECHNICAL REFERENCE MANUAL
4-17

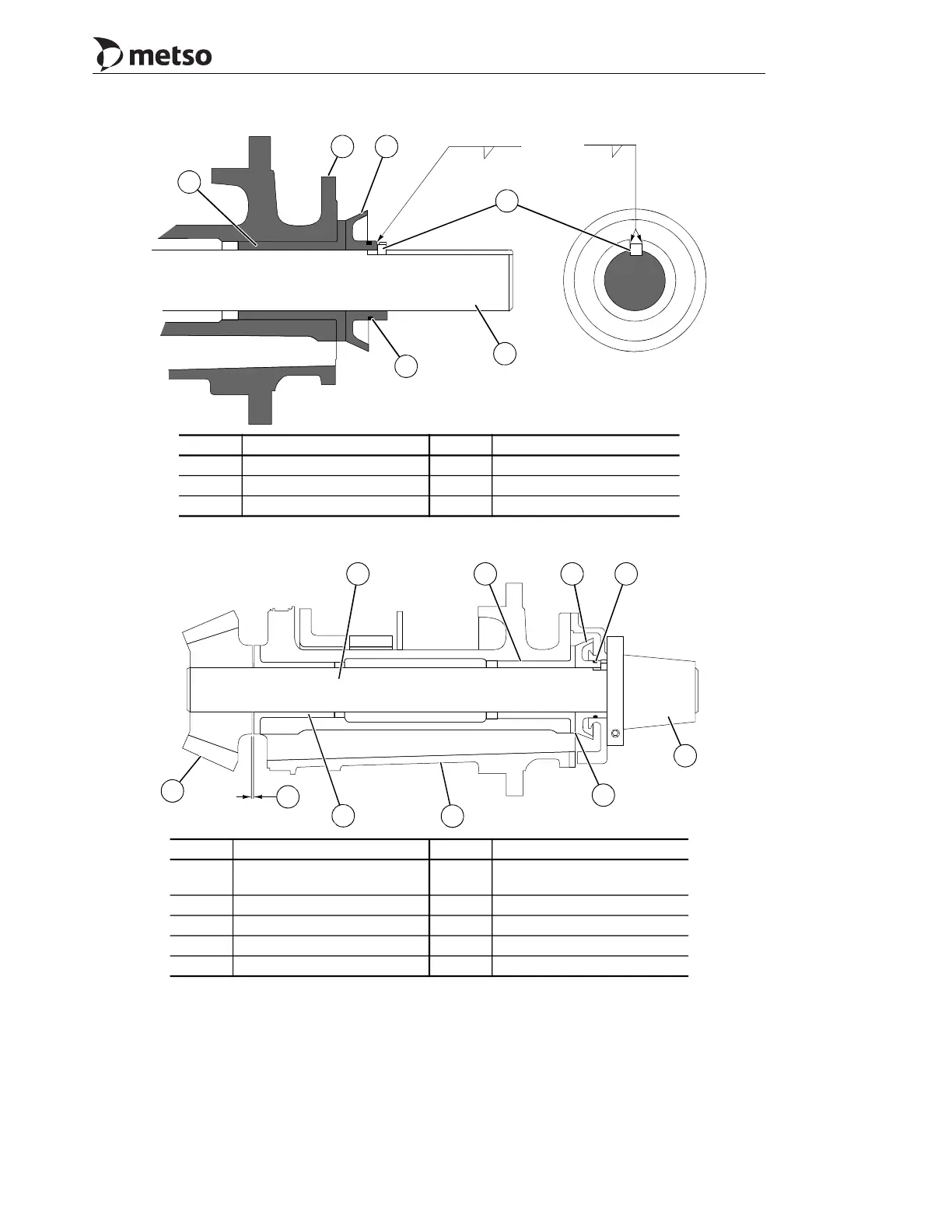

Figure 4-16 MP1000 Flinger Key
Figure 4-17 End Float
Callout Description Callout Description
1 Countershaft box bushing 4 Flinger key
2 Countershaft box 5 Countershaft
3 Oil flinger 6 Piston ring
Callout Description Callout Description
1 Countershaft 6
0.8 mm (0.030") to 1.5 mm
(0.060") end float
2 Outer countershaft bushing 7 Countershaft box
3 Oil flinger 8 Inner countershaft bushing
4 Piston ring 9 Tight
5 Sheave bushing 10 Pinion
3
3
4
5
2 3
1
6
1 2 3 4
5
9
7
8
10
6
