SECTION 2 - GENERAL INSTALLATION INFORMATION
MP SERIES CONE CRUSHER TECHNICAL REFERENCE MANUAL
2-19

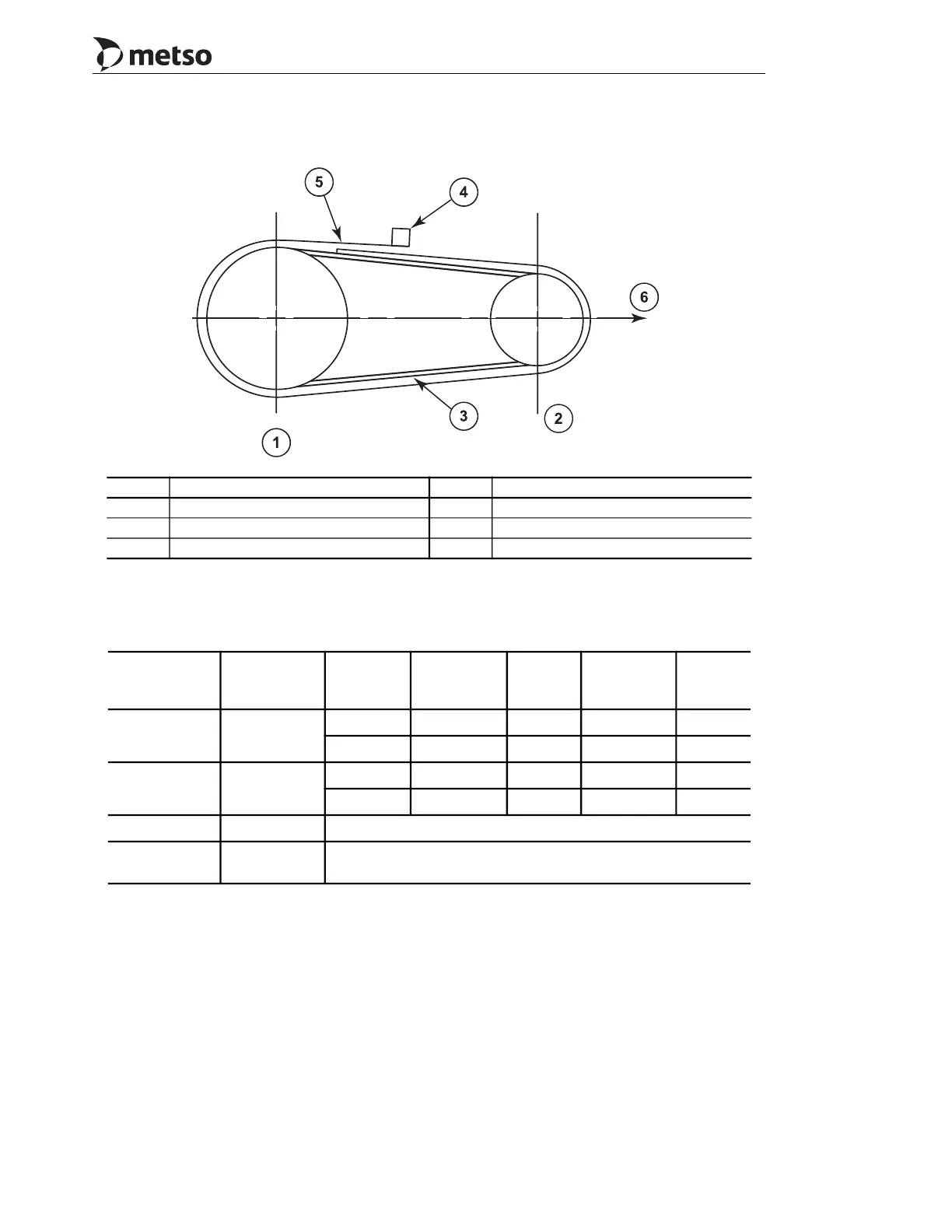

Figure 2-11 Percent of Elongation Method
Callout Description Callout Description
1 Crusher Sheave 4 Steel Tape
2 Motor Sheave 5 Tape Reading
3 Belt 6 Pull
Standard and Banded Belts
Belt Type Belt Section Crusher
Minimum
Multiplier Percent
Maximum
Multiplier
Percent
Standard
Optibelt
8V
MP800 0.005 0.5 0.006 0.6
MP1000 0.006 0.6 0.007 0.7
Banded
Optibelt
8V
MP800 0.006 0.6 0.007 0.7
MP1000 0.007 0.7 0.008 0.8
Gates 8V Tension Deflection Method Recommended
Other
Brand Belts
8V Consult Metso Minerals
Table 2-7 Elongation Factors
