SECTION 2 - GENERAL INSTALLATION INFORMATION
2-34
MP SERIES CONE CRUSHER TECHNICAL REFERENCE MANUAL

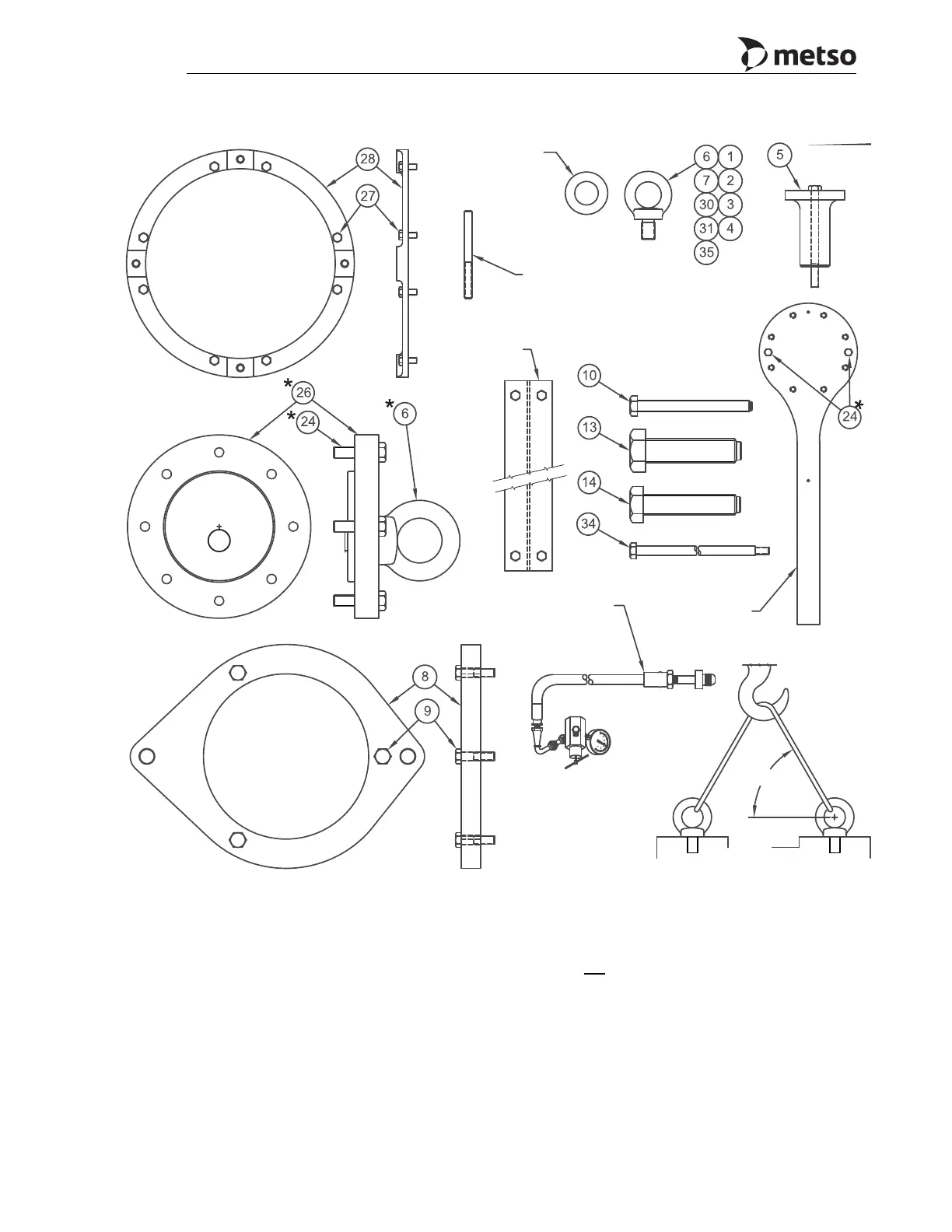

Figure 2-18 MP1000 Special Tools
Notes for Correct Lifting:
1. Lifting ring bolts must always be screwed tight in such a way that they fit flush
against the bearing surface.
2. Any loading at right angles to the plane of the eye is not
permissible.
3. Metric washers shall be inserted if necessary to avoid incorrect loading.
4. Per diagram shown above, do not lift at any angle less than 60°.
5. If threaded portion of eyebolt protrudes past the bottom of the plate, add
washers under the shoulder of the eyebolt so threads are fully engated.
* Refer to head assembly drawing, for the requirement of these items.
VARIOUS SIZES
OF METRIC FLAT
WASHERS
LINE-UP STUD USED TO
ASSEMBLE SOCKET TO
MAINSHAFT
MAINSHAFT
SUPPORT
LOCKING NUT
WRENCH
ACCUMULATOR
CHARGING
ASSEMBLY
FOR PROPER LIFTING SEE NOTES
BELOW.
60°
