SECTION 3 - M. FRAME, ADJ. RING, TRAMP REL. & CLRNG JACK ASSY
3-16
MP SERIES CONE CRUSHER TECHNICAL REFERENCE MANUAL
8. Lift the adjustment ring from the frame and
measure the thickness of the clay or putty
balls.
a. If the clay ball thicknesses are less than
2 mm (0.080") the minimum distance
shown in Figure 3-9 then the adjustment
ring fulcrum surface is to be machined to
obtain the minimum clearance. Refer to
the following example:
b. If the clay ball thicknesses are more than
5 mm (0.196"), the maximum distance
shown in Figure 3-10, then the
adjustment ring fulcrum surface is to be
built up with weld and machined to
obtain at least the maximum clearance. If
weld build up is required, then contact
Metso Minerals for weld and machining
procedures.

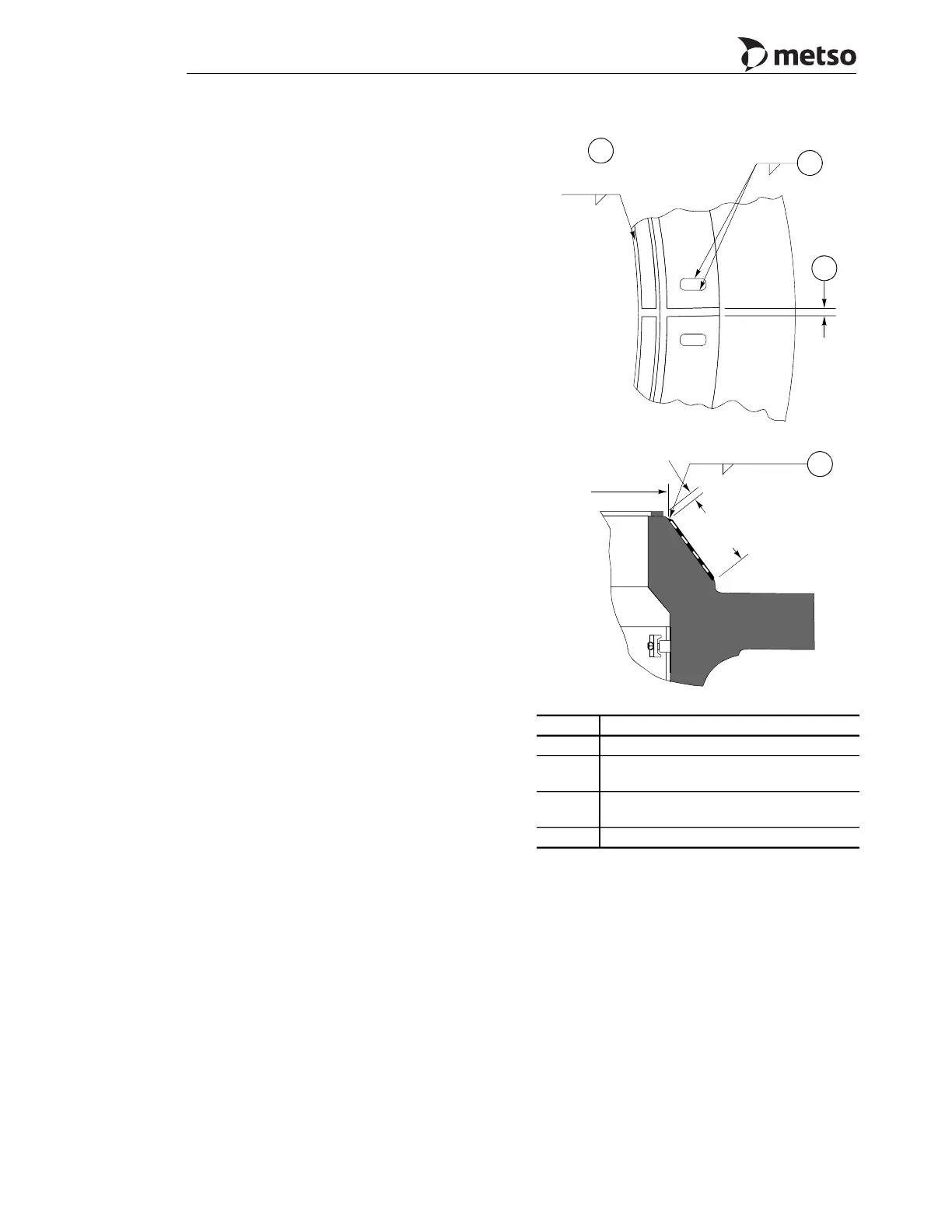

Figure 3-13 MP800 Main Frame Seat Liner and
Fulcrum Bar
Callout Description
1 4 Segments
2
Braze along sides of slots only —
18 places
3
Typ. gap between seat liner and fulcrum
bar segments
4 6 Segments
3 mm (.12")
10 mm (.39")
20 mm (.79")
75-285 mm (3-11.22")
2
3
1
22 mm
6 mm
Ø 2725 mm
100-260 mm
250 mm
4
(.87")
(.25")
(4-10.24")
(9.84") REF
(107.29")
