Care and maintenance
4/5
grease hole will be accessible when the bearing cylinder assembly is fitted to
bearing frame (P14). Tighten the screws (B5) evenly and to the correct torque.
See Torque Table, section 11.1.
h) Fit shaft (B11) into bearing cylinder housing (B14) with its threaded end
protruding from the wet-end cover (B2.1). It is recommended that the housing
is supported vertically in a secure stand to give sufficient clearance underneath
the shaft –see Figure 9.5.5-1.
A
B
D
C
E
E

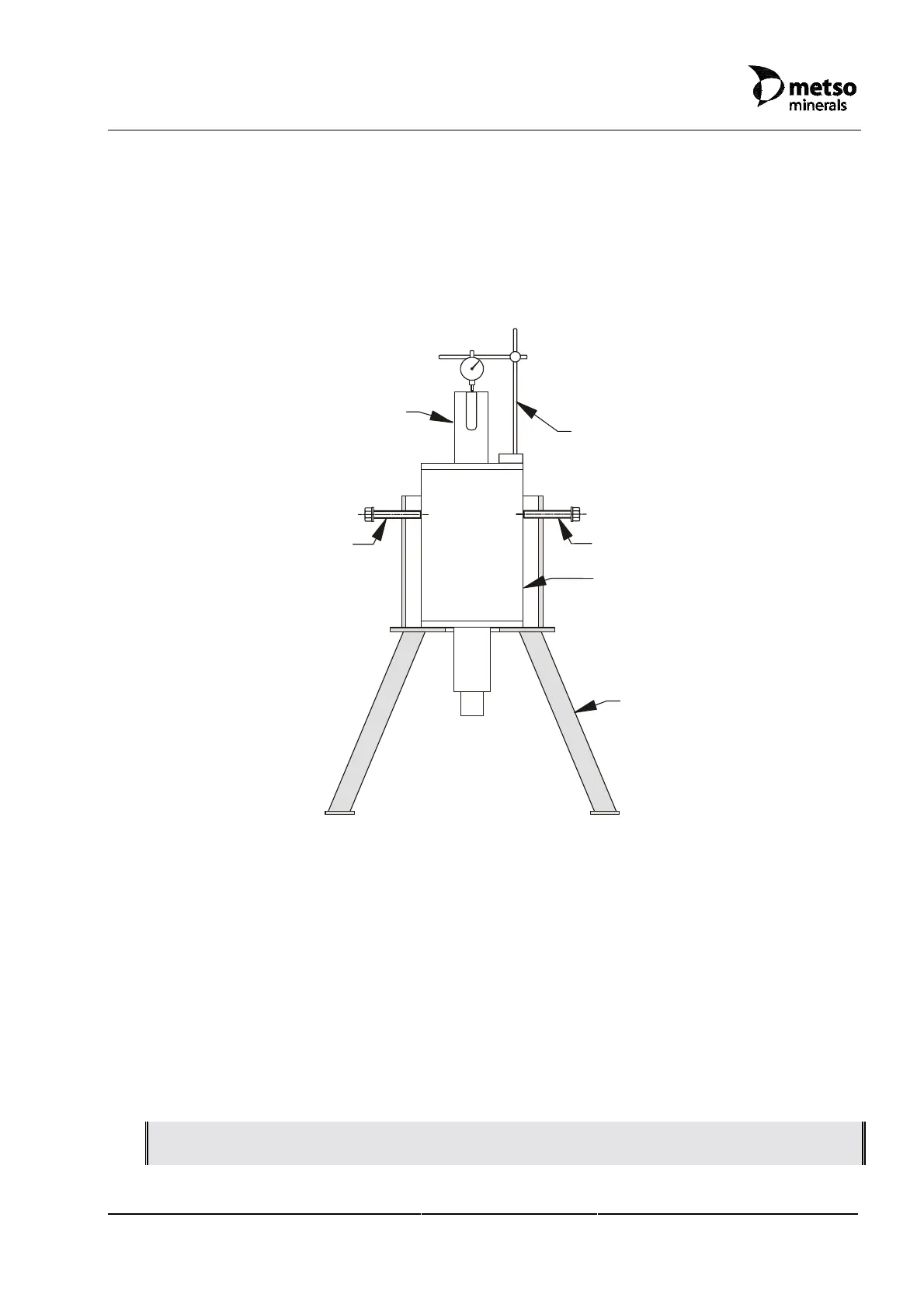

Figure 9.5.5-1 Bearing cylinder housing support & bearing clearance: Shaft(A),
Dial test indicator (B), Bearing cylinder housing (C), Support
stand (D), Securing screws (E).
i) Fit the bearing outer race into the bearing cylinder housing at the dry-end and
press it into position using dry-end cover (B2.2) until the shaft becomes stiff to
turn.
j) Assemble the pack of shims removed during disassembly.
k) Remove cover (B2.2), fit the shims over the cover’s spigot, then re-fit the cover
to the housing.
l) Tighten screws (B5) evenly and to the correct torque.
IMPORTANT NOTE
STRIKE THE INDIVIDUAL ENDS OF THE SHAFT TO ENSURE THAT THE BEARING RACES ARE HARD
UP AGAINST THE END COVER BEFORE CHECKING THE BEARING CLEARANCE.
