Stim muscle stimulator to begin treatment. The intensity of electrical stimulation is adjusted on the
muscle stimulator, while ultrasound intensity is adjusted on the ME 740. When the selected time has
completed on the Sonicator 740, press “Hold” on the Sys
*
Stim muscle stimulator before removing the
applicator from the patient. This will turn off the stimulation output to the applicator.

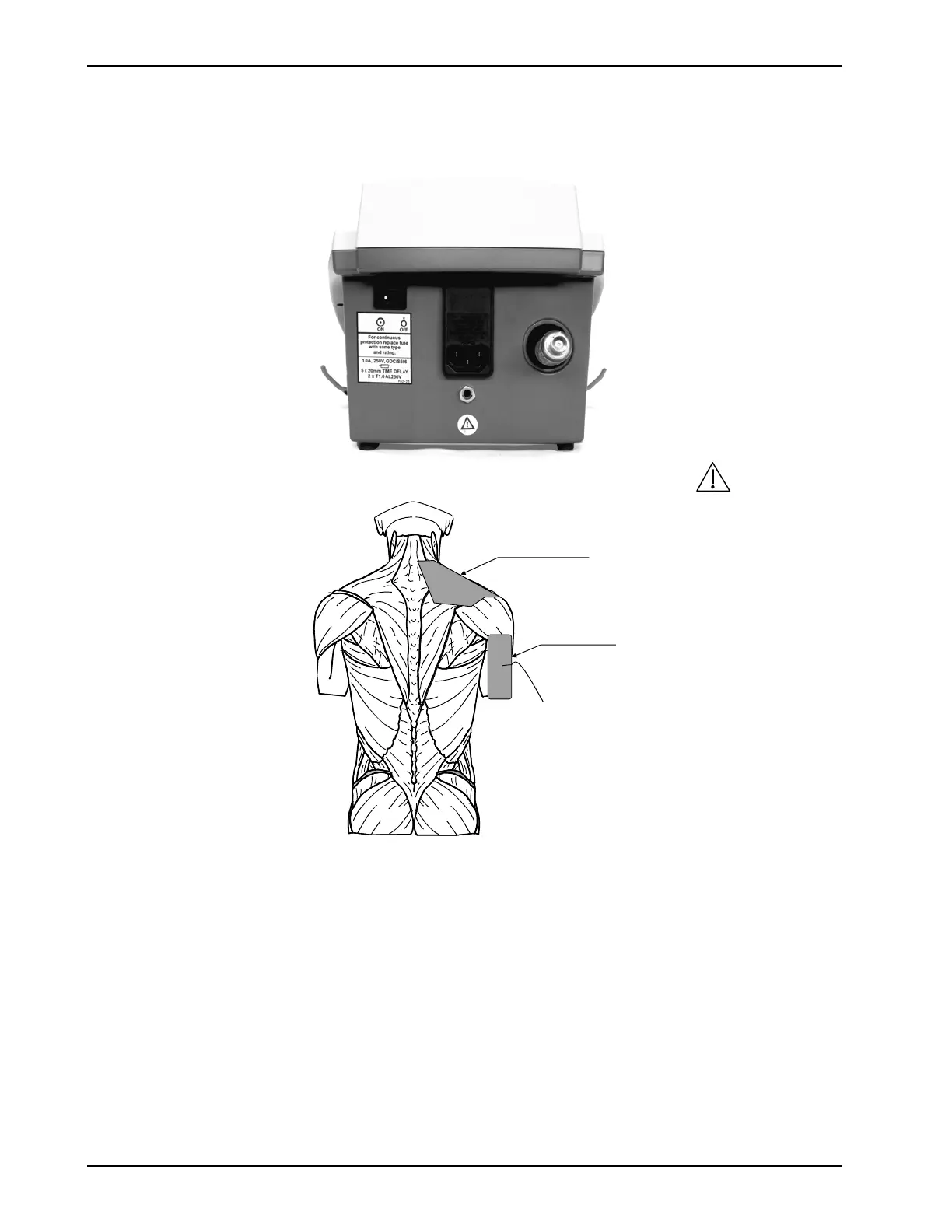

Figure 4.2 Combination Therapy Connections—Banana jack is located above the
symbol.
Dispersive Electrode
Ultrasound + Stimulation
Application
Figure 4.3—Combination Therapy Example
