Sonicator 740 Instruction Manual— Rev.G_06/28/12
9
Section 2—Symbol Glossary and List of
Abbreviations

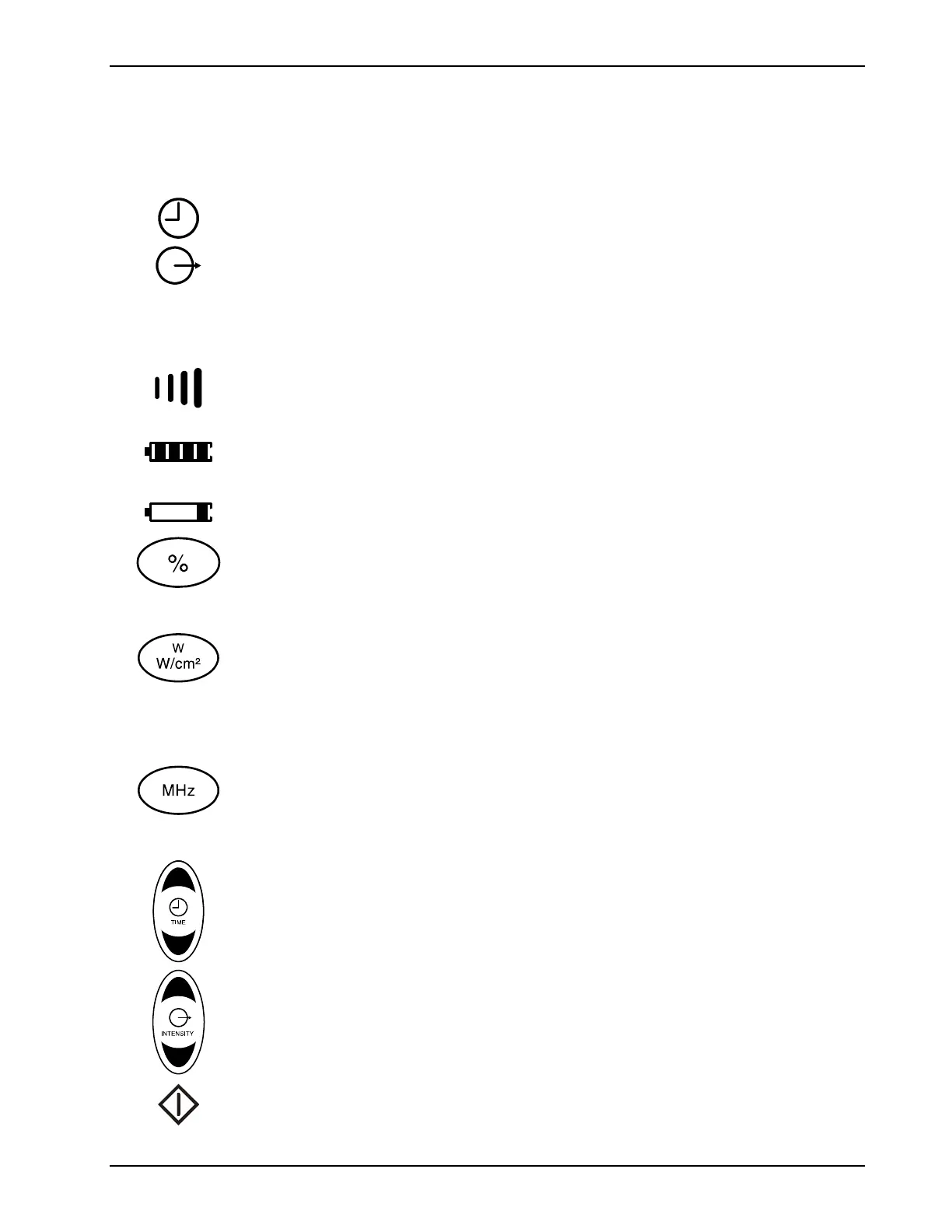

2.1 Symbol Glossary
Time symbol
Output symbol
MIN
Minutes
SEC
Seconds
Ultrasound active when this symbol is shown on the display. This symbol blinks when
coupling is inadequate.
Battery symbol when the Sonicator 740 is running off the battery and the unit is
unplugged from the wall. Bars indicate degree of charge. Battery symbol will be absent
if the battery is not installed. (1 bar= 0-25%, 2 bars = 26-50%, 3 bars= 51-75% and 4 bars =
76-100%)
Battery almost empty symbol. The outline of the battery will begin blinking on and off
when it is time to recharge the battery.
Sets duty cycle to continuous (100%) or pulsed (10%, 20% or 50%) ultrasound output.
%
Duty cycle for pulsed or continuous ultrasound.
Sets output display to watts or watts per square centimeter.
W
Watts
W/cm²
Watts per square centimeter
Sets output frequency for 5cm² applicator, either 1 or 3 MHz.
MHz
Megahertz
Increases or decreases treatment time.
Increases or decreases ultrasound output intensity or power.
Starts treatment, ultrasound output activated.
